EVH Striped Series Electric Guitar-Red/Black/White Cheap Pice From China

With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen’s historic and authentic style in your hands … These are high powered, high-performance machines as kickbutt to look at as they are to play.

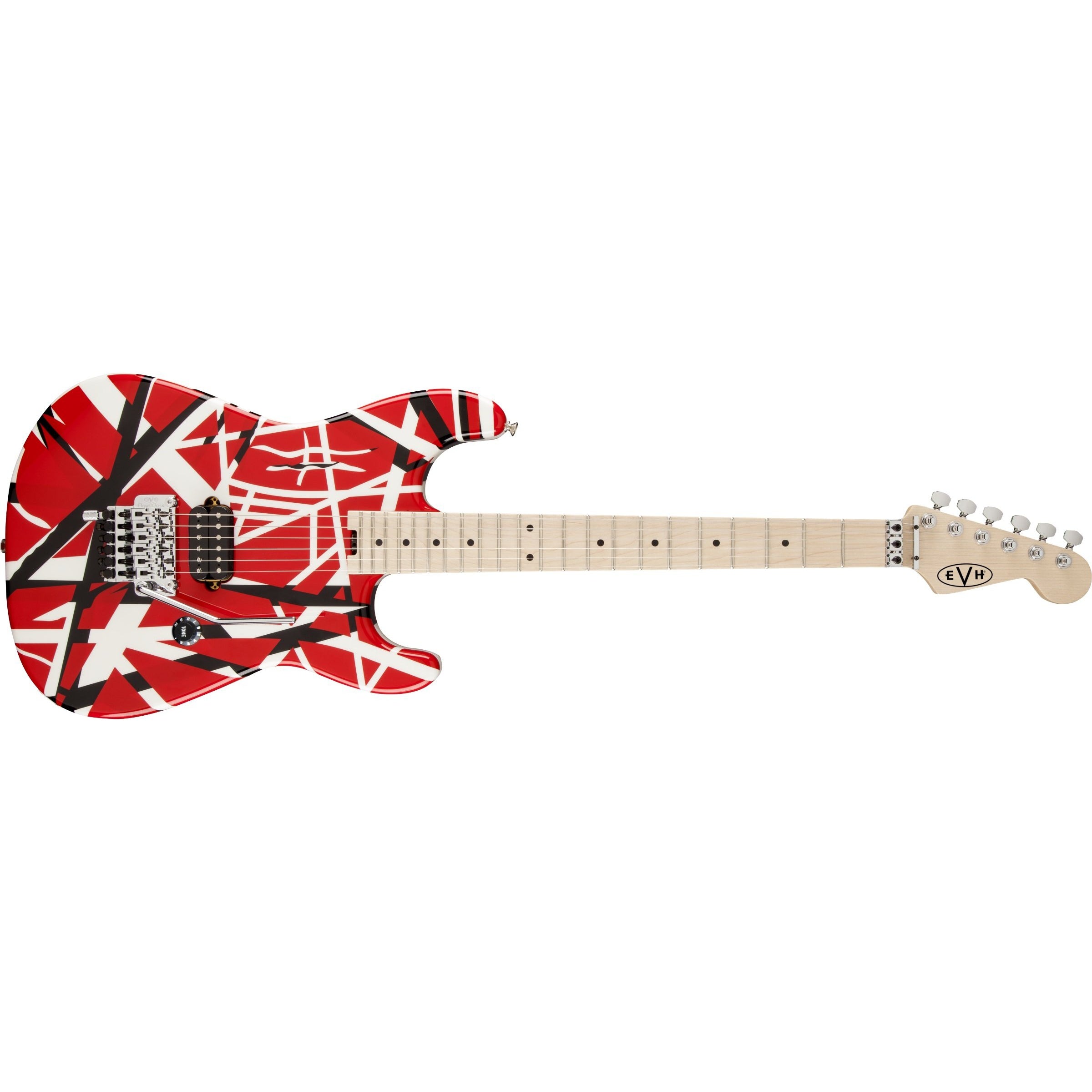

The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie’s famed striped graphics — Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.

These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12″-16″ maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.

Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled “tone”) that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.

General
Color:  Red with Black Stripes
Country Of Origin:  MX
Orientation:  Right-Hand
Series:  Striped Series

Neck
Fingerboard Material:  Maple
Fingerboard Radius:  12″-16″ Compound Radius (304.8 mm to 406.4 mm)
Headstock:  Licensed Fender® Stratocaster®
Neck Construction:  Bolt-On with Graphite Reinforcement
Neck Finish:  Hand-Rubbed Satin Urethane
Neck Material:  Quartersawn Maple
Neck Shape:  EVH® Modified “C” Backshape
Neck Thickness:  .790″ at 3rd Fret & .810″ at 12th Fret
Number of Frets:  22
Nut Material:  Floyd Rose® R3 Locking
Nut Width:  1.6875″ (42.86 mm)
Position Inlays:  Black Dot
String Nut:  Floyd Rose® R3 Locking
Truss Rod Nut:  Heel-Mount Truss Rod Adjustment Wheel

Body
Body:  Basswood
Body Finish:  Gloss Urethane
Body Material:  Basswood
Body Shape:  Other

Hardware
Bridge:  EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Control Knobs:  Black Stratocaster®-Style Skirt (Labeled “Tone”)
Hardware Finish:  Chrome
Neck Plate:  4-Bolt Standard
Pickup Covers:  Black
Strap Buttons:  Oversized
String Trees:  Floyd Rose® Retainer Bar
Strings:  EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm:  Floyd Rose® 1000 Series Locking
Tremolo Block:  Brass
Tuning Machines:  EVH®-Branded Gotoh®

Electronics
Bridge Pickup:  EVH® Wolfgang® Humbucking
Controls:  Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Pickup Configuration:  H
Switching:  None

Measurements
Fret Size:  Jumbo
Scale Length:  25.5″ (648 mm)
