Eliminator Lighting SC8 II Pad System 8-Channel Analog Lighting Controller Official

Take Your Event to the Next Level with the Eliminator Lighting SC8 II Pad System 8-Channel Analog Lighting Controller
Looking to create a memorable experience at your next event? Look no further than the Eliminator Lighting SC8 II Pad system. This analog lighting controller is perfect for setting the tone and ambiance of your gathering. Designed for non-DMX lighting, the SC8 II Pad is easy to use and eliminates messy wires, allowing you to focus on the show.

The SC8 II Pad boasts an intuitive interface with 8 innavidual channel on/off toggle switches, including a flash option for each channel, giving you complete control. Its durable construction ensures that it can withstand even the longest performances, while its easy setup and included accessories make it ready to use straight out of the box.

With features like rubber feet for desk use, AC/DC power options, and a master on/off power switch, this controller system is a must-have for seamless lighting management. Order the Eliminator Lighting SC8 II Pad system today to elevate your setup and enhance your performance.

Key Features

• Elevate your event with the Eliminator Lighting SC8 II Pad system Analog Lighting Controller that turns ordinary gatherings into extraordinary experiences
• Designed for non-DMX lighting, this system allows you to effortlessly set the ambiance of your party or performance. Say goodbye to tangled cords and messy wires, allowing you to focus entirely on your show.
• 8x Innavidual channel On / Off toggle switches
• 8x innavidual flash switches
• Control Pad AC or DC powered with IEC and USB power inputs
• Master On/Off Power Switch
• 3-pin XLR Data Output
• Rubber Feet for Desk Use
• 8x Edison Power Inputs
• 15 AMPS Total Power Capacity (Per Relay Pack)
• 3-pin XLR Data In/Out to connect to additional relay pack
• Circuit Breaker Reset
• M10 Mounting Thread for clamp
• Safety Loop

Technical Specifications

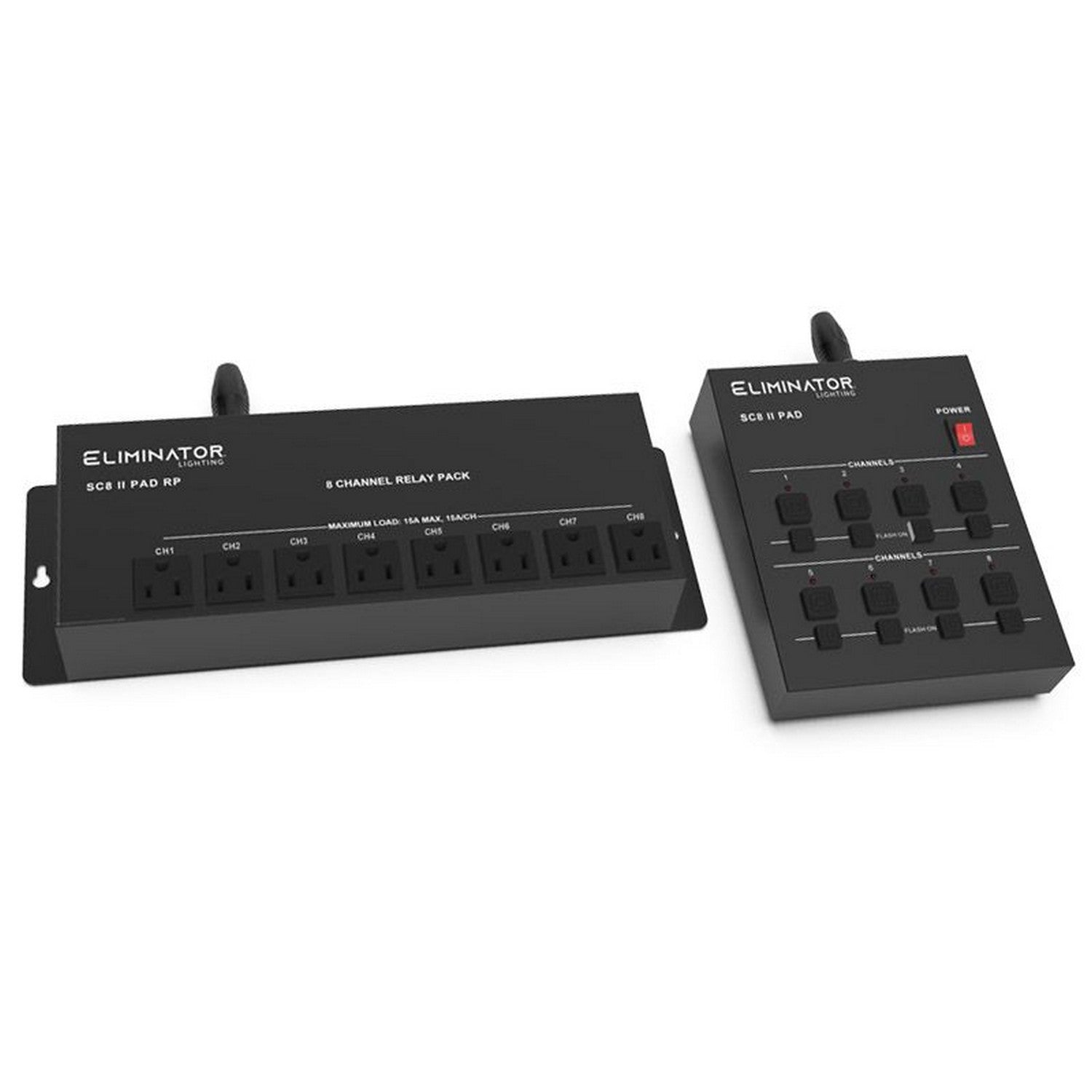

System Includes
1x SC8 II Pad controller
1x SC8 II PAD RP (Relay Pack)
1x 25ft. 3-pin DMX Cable
1x 4ft. (1.2M) IEC Power Cord
Electrical
Power Input
SC8 II Pad: AC 100-240V, 50/60Hz
SC8 II Pad RP: AC 100-120V, 60Hz
Power Consumption
SC8 II Pad: AC 120V, 60Hz; 350mA; 20W
AC 230v, 50Hz; 180mA; 21W
SC8 II Pad RP: AC 100V, 60Hz; 15A; 1500W
AC 120V, 60Hz; 15A; 1800W
Dimensions
SC8 II Pad – 7.75” x 5.9” x 2.25” / 197x150x57.9mm
SC8 II Pad RP – 13.5” x 5” x 2” / 343x128x53.2mm
Weight
5 lbs. / 2.37 kgs.
Approvals / Ratings
IP20
