Eliminator Lighting MDF3 RGB LED Dance Floor Panel Discount Classic

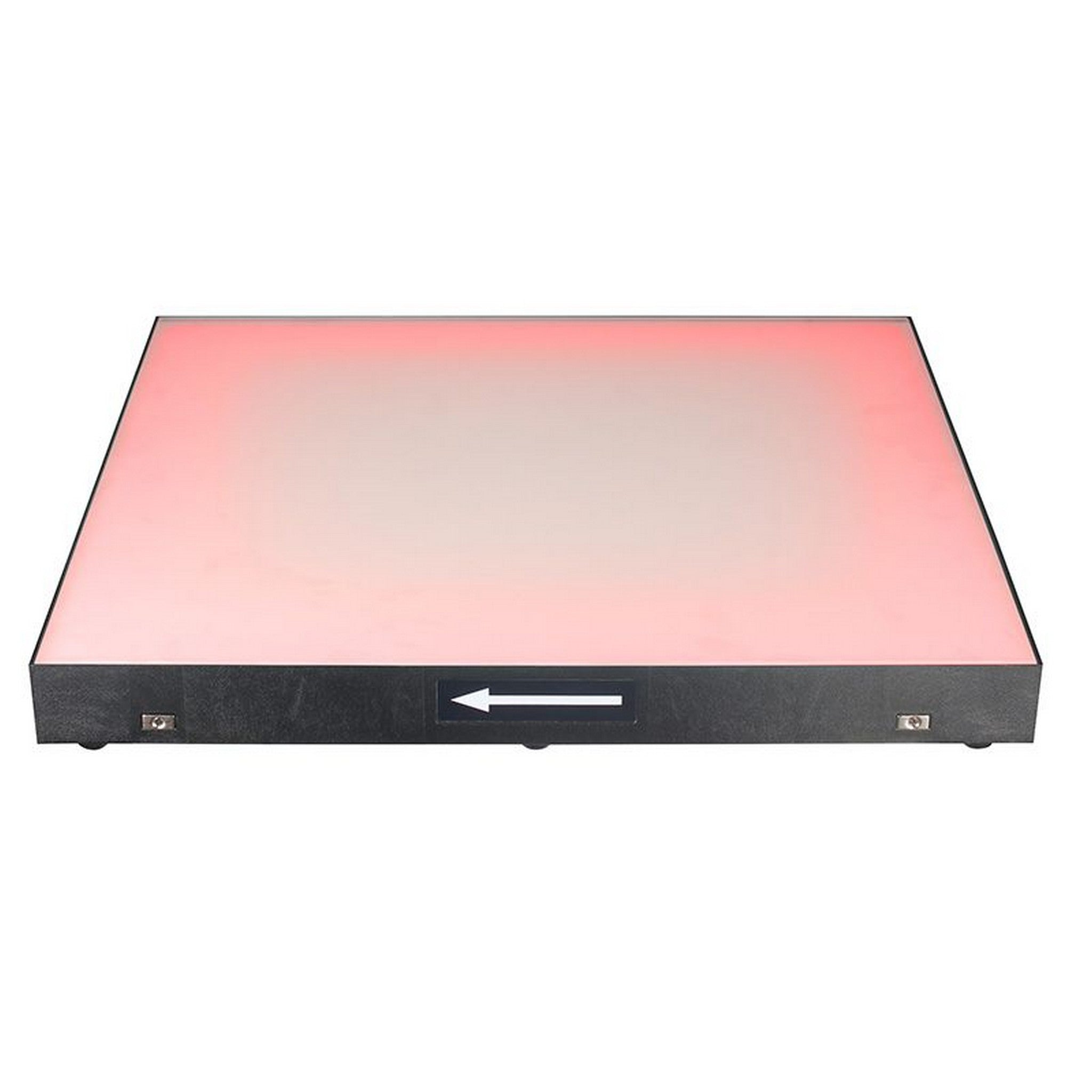

The Eliminator Lighting MDF3 RGB LED Dance Floor Panel stands out as a durable, lightweight, and adaptable LED dance floor panel, designed with a configuration of vivid 3-in-1 RGB color mixing LEDs that illuminate its opaque surface in a spectrum of vibrant colors. Noteworthy enhancements include an improved housing and power connection system featuring gold-plated copper strips and springs beneath the panels to ensure a secure link between adjacent units. Furthermore, it incorporates a service panel for easy maintenance, an advanced PCB with integrated RDM support for remote fixture addressing, and an onboard battery facilitating DMX addressing and mode selection prior to events without requiring panel power. Each panel measures 600mm x 600mm (23.62” x 23.62”) with a slender height of just 70mm (2.76”), weighing a mere 26.57 lbs. (12.05 kgs.), yet capable of supporting up to 300 kgs/m2 (61.5 lbs/ft2). The MDF3 offers various power supply options, ranging from configurations for 9 panels to expansive setups of 156 panels, complemented by edge and corner ramps to ensure safe deployment for naverse events and celebrations.

Technical Specifications

Source
Light Source: RGB 3-IN-1 LED
Visual Angle: 160°
Brightness: High Brightness

Control
Input Signal: DMX512 (3-Pin XLR)
Control Mode(s): DMX512 Console, Sound Control, Audio Control and Remote Control.
DMX Channel Mode: 3, 5, 7, & 10 Channel Mode

Physical
Surface Material: Tempered Glass
Base Material: ABS

Power | Power Consumption
Input Voltage: DC 24V (Must be used with power ramp)
Max Power Consumption: 15W

Unit Dimensions | Weight
Single panel Dimensions (LxWxH): 23.62” x 23.62” x 2.76” / 600x600x70mm
Single Panel Weight: 26.57 lbs./ 12.05 Kgs

Load Bearing Capacity
Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)

Approvals
cETLus Certified (Conforms to UL Std. UL 1573,)
CSA Certified to Std. CSA C22.2 No.166.
CE Compliant

Operating / Storage Temps
Operating and Storage Temperatures: -4°F min. ~ 113°F max. (-20°C~45°C)

MDF3 Series Products and Accessories (sold separately):
MDF300: LED Floor Panel
MDF232: Power Supply (powers up to 9 panels)
MDF248: Power Supply (powers up to 15 panels)
MDF264: Power Supply (powers up to 20 panels)
MDF281: Power Supply (powers up to 40 panels)
MDF454: Power Supply (powers up to 117 panels)
MDF477: Power Supply (powers up to 156 panels)
MDF297: Power Main Cable, 16ft
MDF313: Power Main Cable, 20ft
MDF320: Power Main Cable, 25ft
MDF336: Power Main Cable, 50ft
MDF388: Connection / Power Transfer Bracket
MDF368: Panel Removal Tool
MDF390: Power Supply Ramp
MDF401: Edging Ramp
MDF417: Corner Ramp

Specifications are subject to change without notice.
