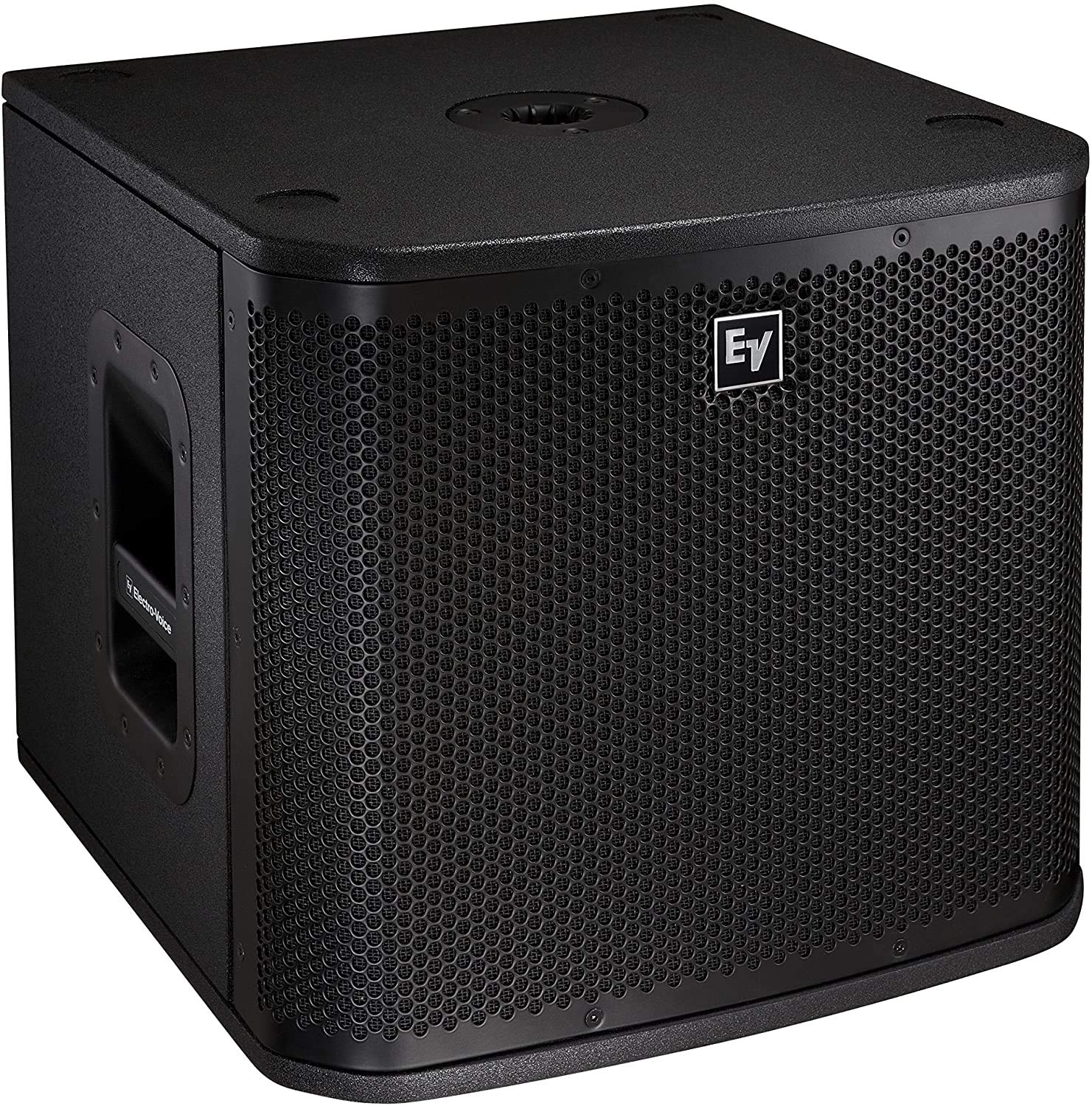

Electro-Voice ZXA1-SUB 12-Inch Powered Subwoofer

The Electro-Voice ZXA1SUB 12-Inch Powered Subwoofer wraps Electro-Voice technology in a durable, lightweight cabinet, resulting in the most powerful and versatile compact loudspeaker available today. Match ZxA1-Sub with the ZxA1 to create a truly exceptional professional sound system. The Electro-Voice ZxA1-Sub powered loudspeakers are fully integrated audio systems with carefully matched electronics and transducers. These products make it easy to set up a high quality sound system quickly, with a minimum amount of cables and external electronics. The Electro-Voice ZxA1-Sub is a compact, amplified loudspeaker system, which is designed for portable sound reinforcement applications that require maximum portability. The ZxA1-Sub utilizes EVS-12S, a high output, low distortion, 305mm (12 inch) woofer. The ZxA1-Sub subwoofer is powered by an integrated 700W amplifier module. The amplifier has dedicated XLR stereo inputs and XLR line level outputs for daisy chaining several ZxA1-Subs, mono sum, or adding ZxA1 full range systems. The amplifier, by design, features steep crossover slopes and woofer excursion protection for maximum output and reliability. A switchable DSP low-end boost filter provides additional low-frequency extension. The selectable polarity switch controls acoustic polarity of the subwoofer and can be applied, if bass output is low, eliminating possible “cancellation” of low frequencies. The ZxA1-Sub plywood enclosure is made for lasting durability and lightweight requirements. Solid, easy-to-grip handles on each side and pole mounts make the ZxA1-Sub ideal for many portable applications.

Key Features

Technical Specs

Frequency Response (-3dB)

53 Hz – 93 Hz

Frequency Range (-10dB)

44 Hz – 118 Hz

Max. Measured SPL

126dB

Coverage (Horz. X Vert.)

Omnidirectional

Power Rating

700W

LF Transducer

1 x EVS-12S, 305mm (12”) Woofer

Crossover Frequency

100Hz

Connectors

2 x XLR Stereo Input

2 x XLR Stereo Output

Enclosure Material

9-ply, 15mm Plywood, Internally Braced, with Textured Paint

Grille

16GA Steel with Black Powdercoat

Mains Requirements

120V: 90V-132V, 1.0A, 50-60Hz

230V: 190V-264V, 0.6A, 50-60Hz

Dimensions (H x W x D)

400mm x 444.5mm x 457.2mm (15.75” x 17.50” x 18.00”)

Net Weight

20.9kg (46.0lbs.)
