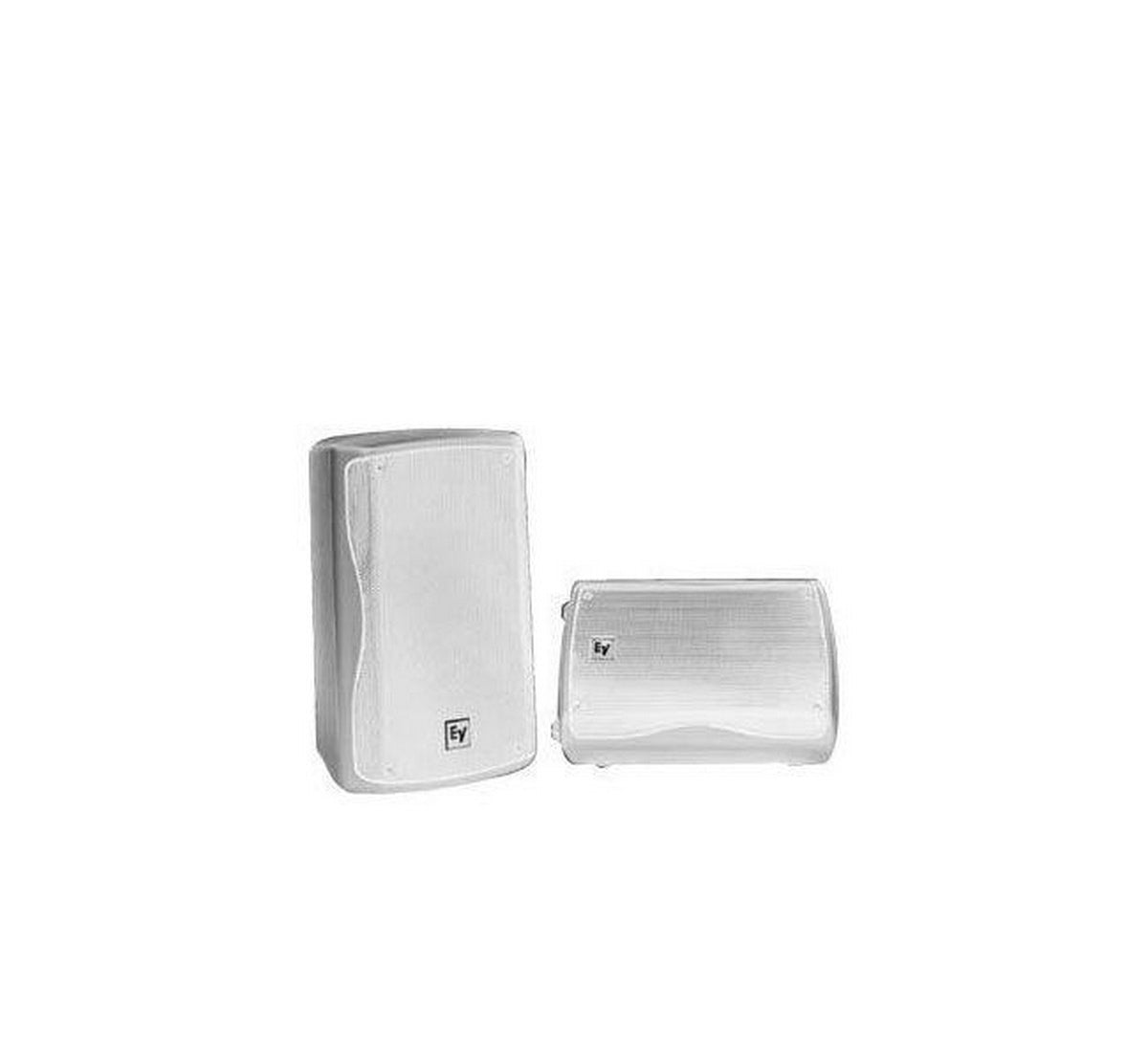

Electro-Voice ZX3-90 12-Inch Two-Way Full-Range Loudspeaker White

The Electro-Voice ZX390 12-Inch Two-Way Full-Range Loudspeaker | White is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90×50° coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12″ woofer and a 1″ Neodymium compression driver with a large 2″ voice-coil. The ZX3-90B cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.

Key Features

Technical Specs

Frequency Response (-3dB)

58Hz – 15kHz

Frequency Range (-10dB)

48Hz – 20kHz

Rec. Hipass Frequency

50Hz

Axial Sensitivity

97dB (1W/1m)

Max. Calculated SPL

131dB

Horizontal Coverage

90 degrees

Vertical Coverage

50 degrees

Power Handling (Passive)

600W Continuous, 2400W Peak

LF Power Handling (Biamp)

500W Continuous, 2000W Peak

HF Power Handling (Biamp)

40W Continuous, 160W Peak

LF Transducer

DVX3121, 12 in (305mm) Driver

HF Transducer

ND2, 1 in (25.4mm) exit Neodymium Compression Driver

Crossover Frequency

2kHz

Nominal Impedance

8Ohms

Minimum Impedance

6.2Ohms

Connectors

Neutrik Speakon NL4’s

Enclosure Material

Polypropylene Structural Foam

Suspension

Enclosure has locations for 4 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure

Grille

Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

Dimensions (H x W x D)

613mm x 397mm x 362mm (24.14” x 15.64” x 14.26”)

Net Weight

19.8kg (43.7lbs.)
