Electro-Voice ZX3-60 12-Inch Two-Way Passive Loudspeaker Black High Quality For Sale

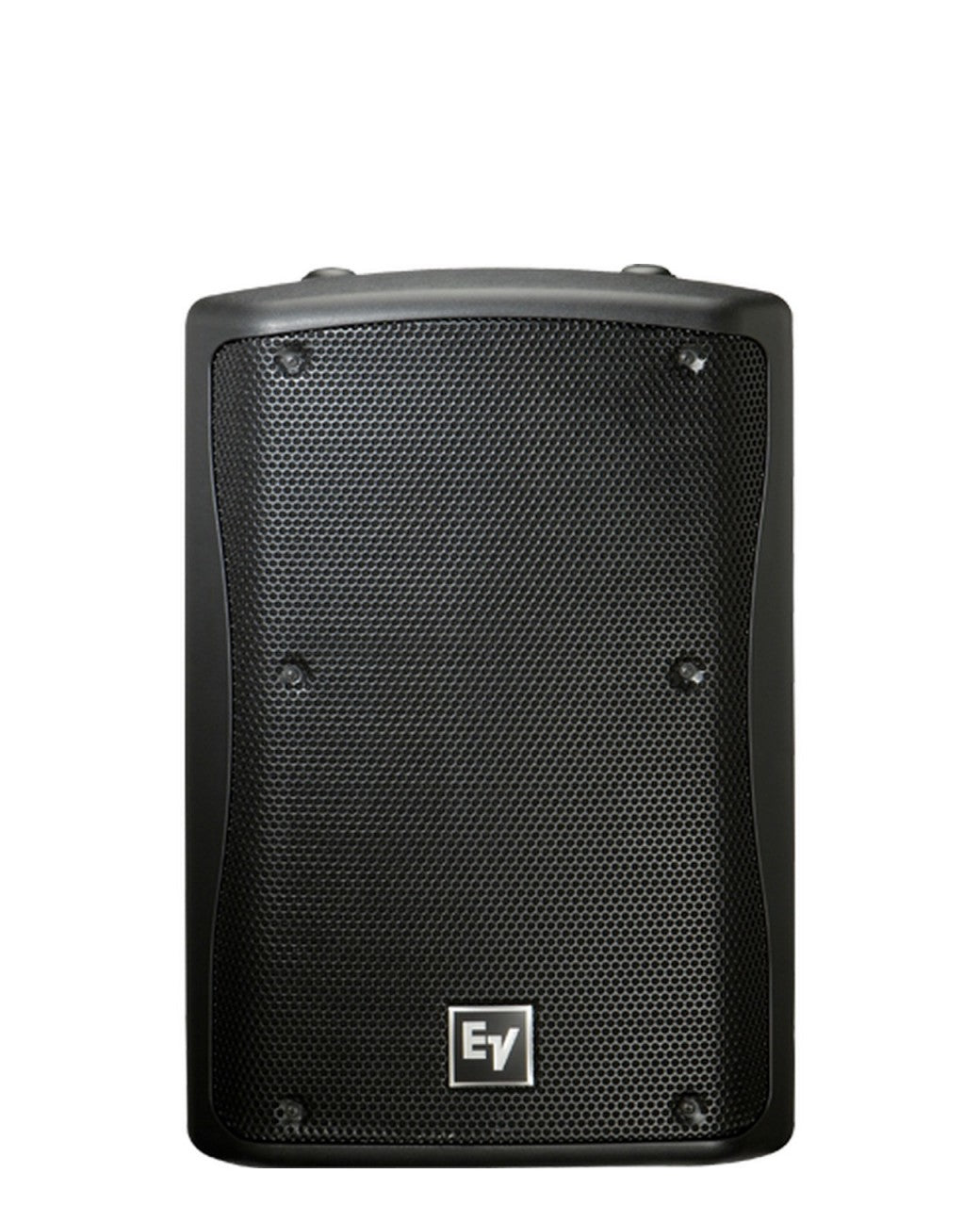

Electro-Voice ZX3-60 12-Inch Two-Way Passive Loudspeaker Black

The Electro-Voice ZX360 12-Inch Two-Way Passive Loudspeaker | Black is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 60×60° coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 12″ woofer and a 1″ Neodymium compression driver with a large 2″ voice-coil. The ZX3-60B cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.

Key Features

Technical Specs

Frequency Response

-10dB: 48Hz – 20kHz

Power Capacity

600W

Maximum Sound Pressure Level (SPL)

131dB

Nominal Sensitivity

97dB

Impedance

8Ohms

Crossover

2kHz

Low Frequency Driver

DVX3121, 12” (305mm) Driver

High Frequency Driver

ND2, 1” (25.4mm) exit Neodymium

Enclosure Material

Polypropylene Structural Foam

Input Connections

Neutrik Speakon NL4’s x 2

Mounting Options

Enclosure has locations for 4 Single-Stud-Attachment Plates and 10 Forged Steel Eye-bolts – 2 on top, 2 on bottom, 2 on side, and 1 on rear of enclosure

Dimensions

24.14x 15.64x 14.26” (613 x 397 x 362mm)

Weight

43.7lbs. (19.8kg)
