Electro-Voice ZX1-90 8-Inch Two-Way Full-Range Composite Loudspeaker Black In China Cheap Pice

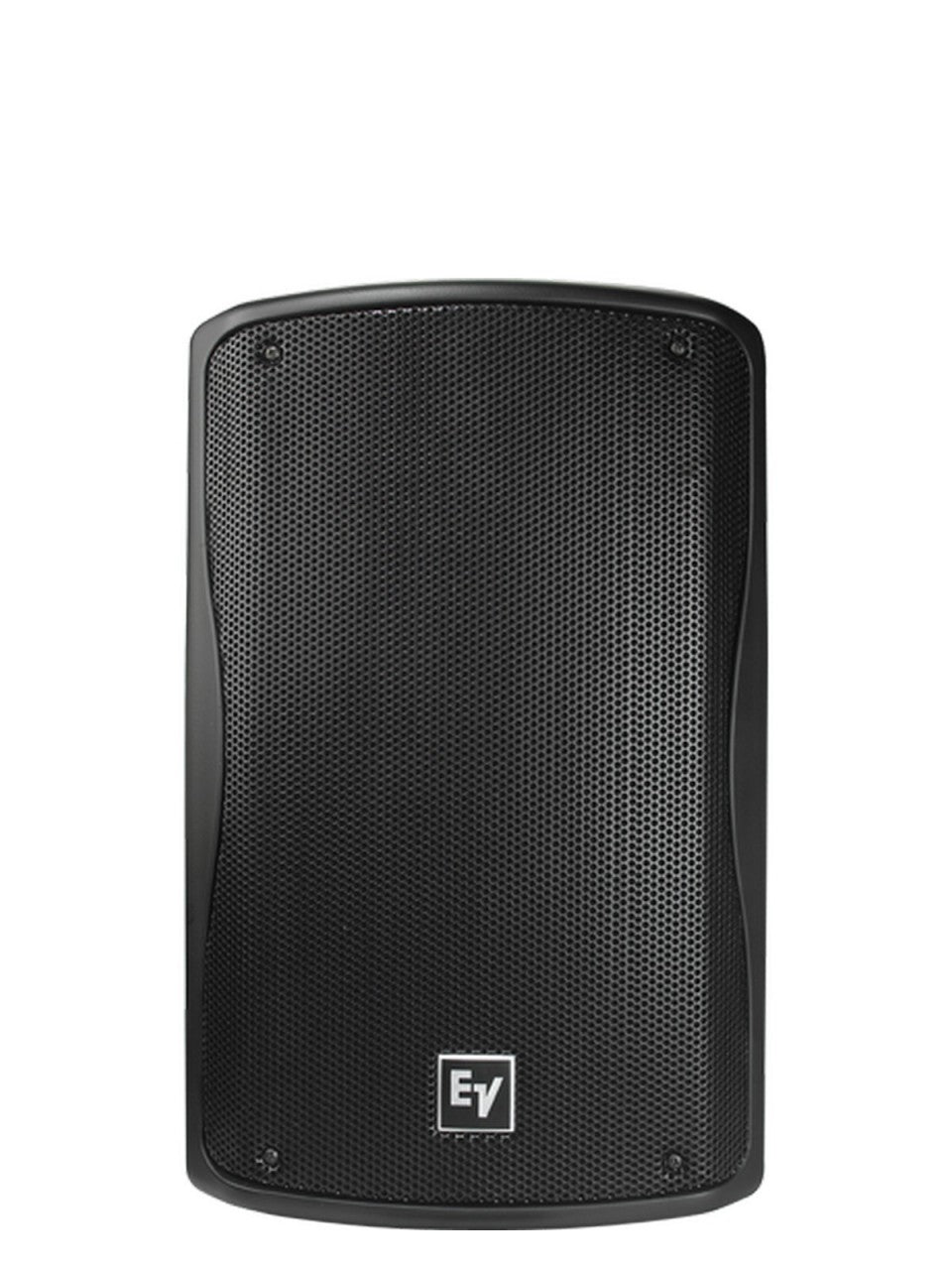

Electro-Voice ZX1-90 8-Inch Two-Way Full-Range Composite Loudspeaker Black

The Electro-Voice ZX190 8-Inch Two-Way Full-Range Composite Loudspeaker | Black is the new standard of no compromise audio performance and versatility for compact sound reinforcement. The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1 extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small loudspeakers and enables exceptional low frequency response without vent noise. The ZX1’s long excursion, high output 8″ woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25” voice coil titanium diaphragm true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long term operation without audible effect. The horn features 90° x 50° coverage with the important added benefit of rotation, allowing the ZX1 to be oriented either horizontally or vertically for the ultimate in coverage flexibility. The ZX1’s molded polymer enclosure is inherently water resistant. The enclosure features an integrated pole mount, a pocket handle, and a wedge-angle design allowing for use as a stage monitor.

Key Features

Technical Specs

Frequency Response (-3dB)

60 Hz – 20 kHz

Frequency Range (-10dB)

48 Hz – 20 kHz

Rec. Hipass Frequency

40 Hz

Axial Sensitivity

94 dB (1W/1m)

Max Calculated SPL

123 dB

Horizontal Coverage

90 degrees or 50 degrees

Vertical Coverage

50 degrees or 90 degrees

Rated System Power

200 W Cont., 400 W Prog., 800 W Peak

LF Transducer

EV8L, 8 in. (203mm) Driver

HF Transducer

DH2005, 1 in. (25.4mm) Exit Compression Driver

Crossover Frequency

1.7kHz

Nominal Impedance

8Ohms

Minimum Impedance

6Ohms

Connectors

Neutrik Speakon NL4

Enclosure Material

High Impact Polymer

Grille

Polyester Powder Coated, 18GA Galvanized Steel

Dim (H x W x D)

457mm x 282mm x 264mm (17.98” x 11.12” x 10.38”)

Net Weight

8.4kg (18.5lbs.)
