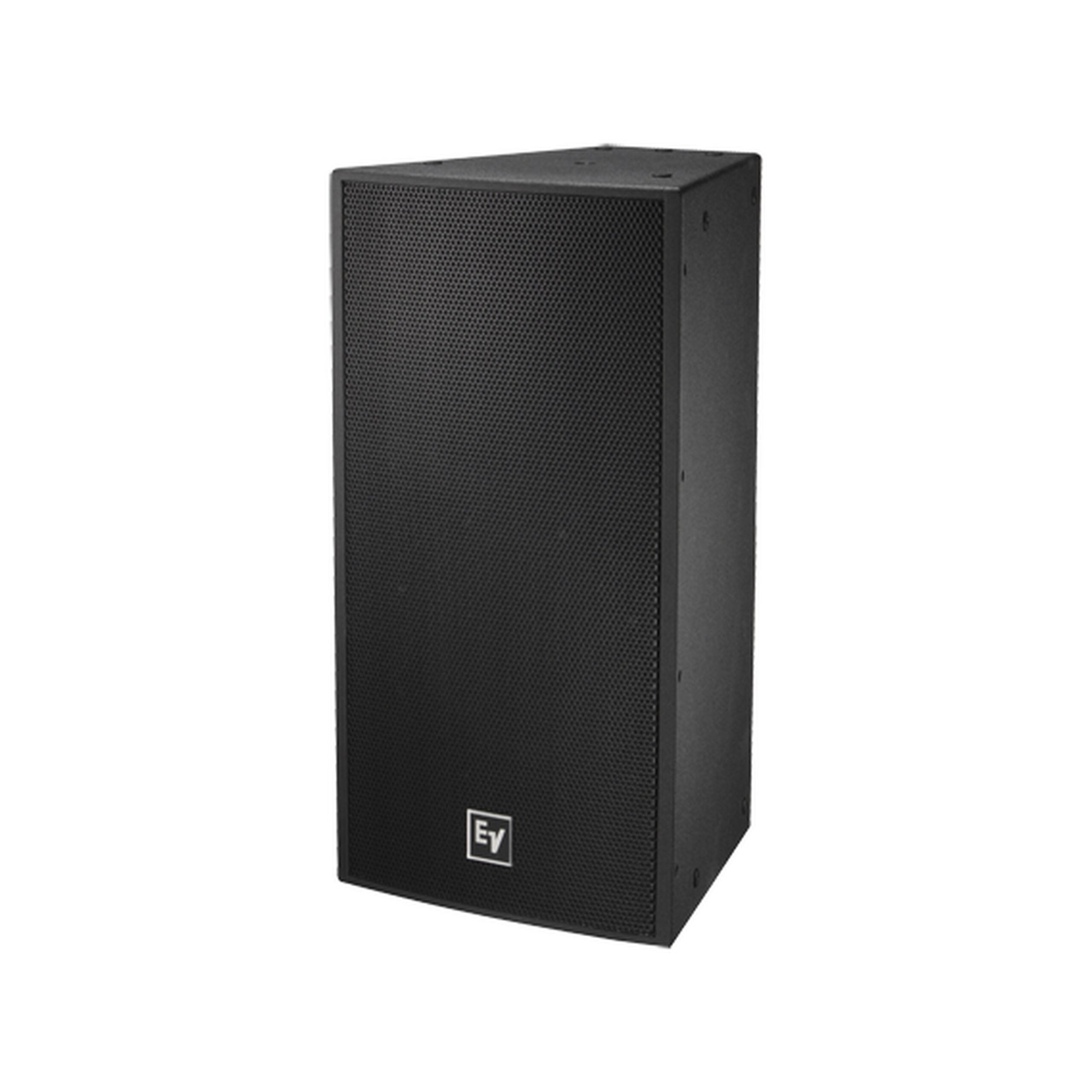

Electro-Voice EVF-1122D/96-FGB Premium 12 Inch 2-Way Full-Range Loudspeaker, Fiberglass-Weatherized Black

Premium 12″ 2-Way Full-Range Loudspeaker

Key Features

• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 60 to 120
• 97 dB sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Technical Specifications

Frequency Range (-10 dB)
49 – 21000kHz
Weight Net
65.48lbs (29.7kg)
Depth
16.27″ (413.3mm)
Width
16″ (406.3mm)
Height
30.26″ (768.6mm)
Coverage (Nominal -6 dB) H
90
Coverage (Nominal -6 dB) V
60
Crossover Frequency
1300Hz
Enclosure Material
13-ply weather-resistant birch with EVCoat
Environmental Specs
Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
Frequency Response (-3 dB)
57 – 18000kHz
Grille
16 GA powder-coated galvanneal with screen behind
HF Transducer
DH7N 3-inch (76mm) diaphragm compression driver
Input Connections
Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
LF Nominal Impedance
8ohms
LF Transducer
DVX312A 12-inch (305 mm) woofer
Max. SPL/1m (calc)
131dB
Minimum Impedance
6ohms
Nominal Impedance (Passive)
8ohms
Passive Power Handling
2400W peak
Recommended High-Pass Frequency
65Hz
Sensitivity 1 W/1 m
97dB
Shipping Weight
75.84lbs (34.4kg)
Speaker Type
Full-Range, Two-Way
Suspension
(22) M10 threaded suspension points
System Power Handling (Continuous/Program/Peak)
600/1200/2400Watts
Weatherized
No
