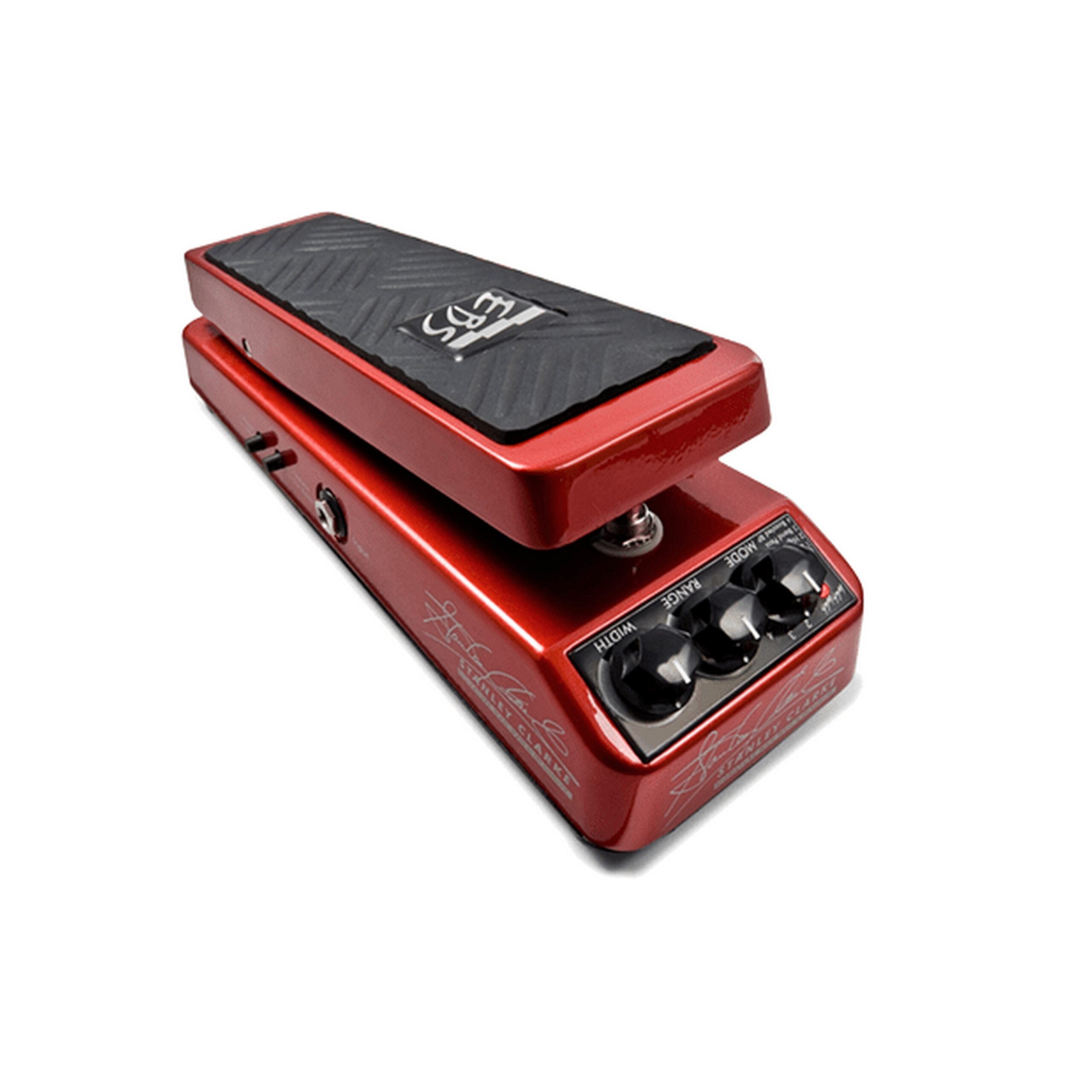

EBS Stanley Clarke Signature Wah/Tone Filter Pedal

Stanley Clarke’s signature tone can be achieved with this signature pedal and a passive standard bass for a lot less than it would cost to purchase an active electronics high-end boutique instrument. Rise to the levels and spectrum of tone that until now was solely instilled in those high-end bass guitars. The pedal pad is a releaseably secure mechanism that can be adjusted to maintain its position once you to find a desired tone within the pedals frequency sweep. It is also utilized with upright basses not limited to electric basses!

Use as a Wah-Wah pedal
The Stanley Clarke Signature Wah is highly flexible as a wah-wah pedal. It does not affect the entire frequency range, like many other wah pedals do, which helps preserve the bottom of your sound while using the effect. The pedal feature four different preshape pass modes, Low-pass, High-pass, Band-pass and Boosted Band-pass. In addition, it offers controls to adjust the Range and Width of the effect span.

Use as a volume pedal
The pedal has a switch on the side that desides what happens when you switch off the wah effect. One setting simply bypass the effect, but the other turn theWah pedal into a Volume pedal when the wah effect is switched off. There’s also an Active/Passive switch on the side, in case you use the pedal with an instrument with active electronics.

Key Features

• Preserve the low range
• Suitable for live and studio use
• Analog Signal Processing
• Flexible footswitch for Wah-wah/Bypass or Wah-Wah/Volume control
• Extended frequency range
• Low-Pass, High-Pass, Band-Pass and Boosted Band-Pass modes
• Variable Band Width
• Use as a Wah effect, Volume pedal or Tone Filter
• True Bypass
• Optional (not included): EBS AD-9 Power Supply

Technical Specifications

Nominal Input Level
– 8 or -20 dBv (active/passive)
Input Impedance
1 Mohms
Pedal Modes
Wah or Volume
Frequency Response
+3/-3 dB 20 – 20.000 Hz
Filter Center Frequency Range
50 – 12.500 Hz
Filter Q
min/max 4.5 / 16
Filter Mode
Low, Band, Boosted Band, and High Pass
Output Impedance
200 ohms
Bypass
True Bypass
Dimensions (L x W x H)
10.6” x 3.7” x 3.0” (270 x 95 x 75 mm)
Weight
1.8 kg (4 lbs.)
Power Requirements
9 V DC Regulated, 25 mA max.
