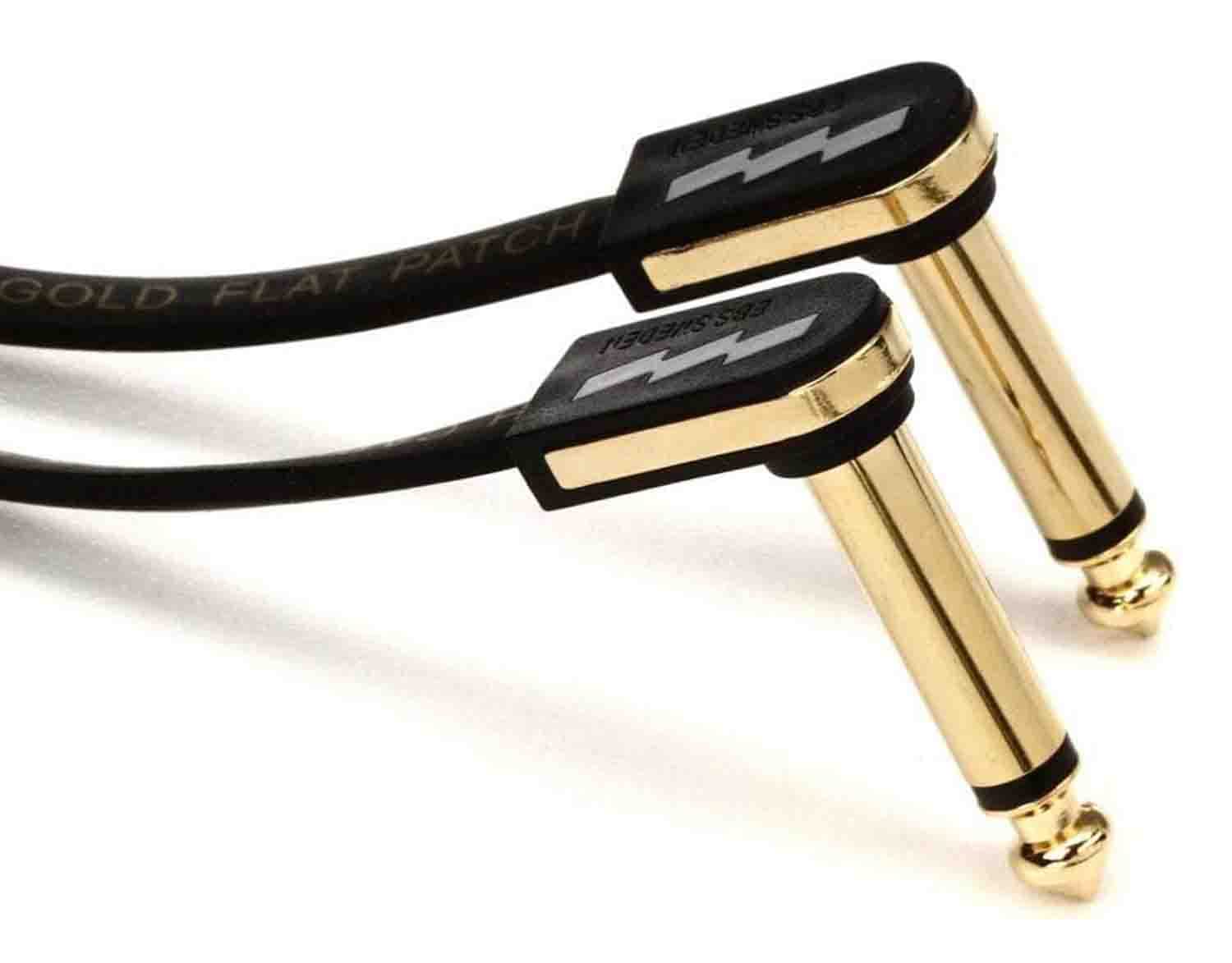

EBS PG-10 Premium Gold Flat Patch Cable, 10cm

If you have ever struggled with limited space on your pedalboard, we share the pain with you. To end the frustration we’ve designed the truly unique, super compact and affordable EBS Flat Patch Cables. Cables that won’t let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum. The elegant Premium Gold (PG) series are the most compact and features 24K Gold plated contacts with even smaller housing than the original EBS PCF-Deluxe (PCF-D) cables.

Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.

Extremely compact size and flexible cables ensure effective use of ALL space on your pedalboard.
Available in four lengths to cover your needs; 10, 18, 28 and 58 cm.

Since the introduction, these cables have made thousands of customers happy. We hope you will become one of them too.* Buy the cables at local stores and online dealers all over the world. * Great customer reviews and very few reported failures from hundreds of thousands sold cables so far.

Technical Specifications

Contact house
24 Carat Gold Plated
Double Shield
Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
Conductor
Flexible copper conductor low voltage audio signal system
Operating Temperature
-15C to +70C
Outer Insulation
PVC (Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Twisted Copper shield
45 x 0,12mm
Capacitance Cond./Shield
< 10 pF/decimeters
Conductor Resistance
< 10 mOhm/decimeters
Dimensions
5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
