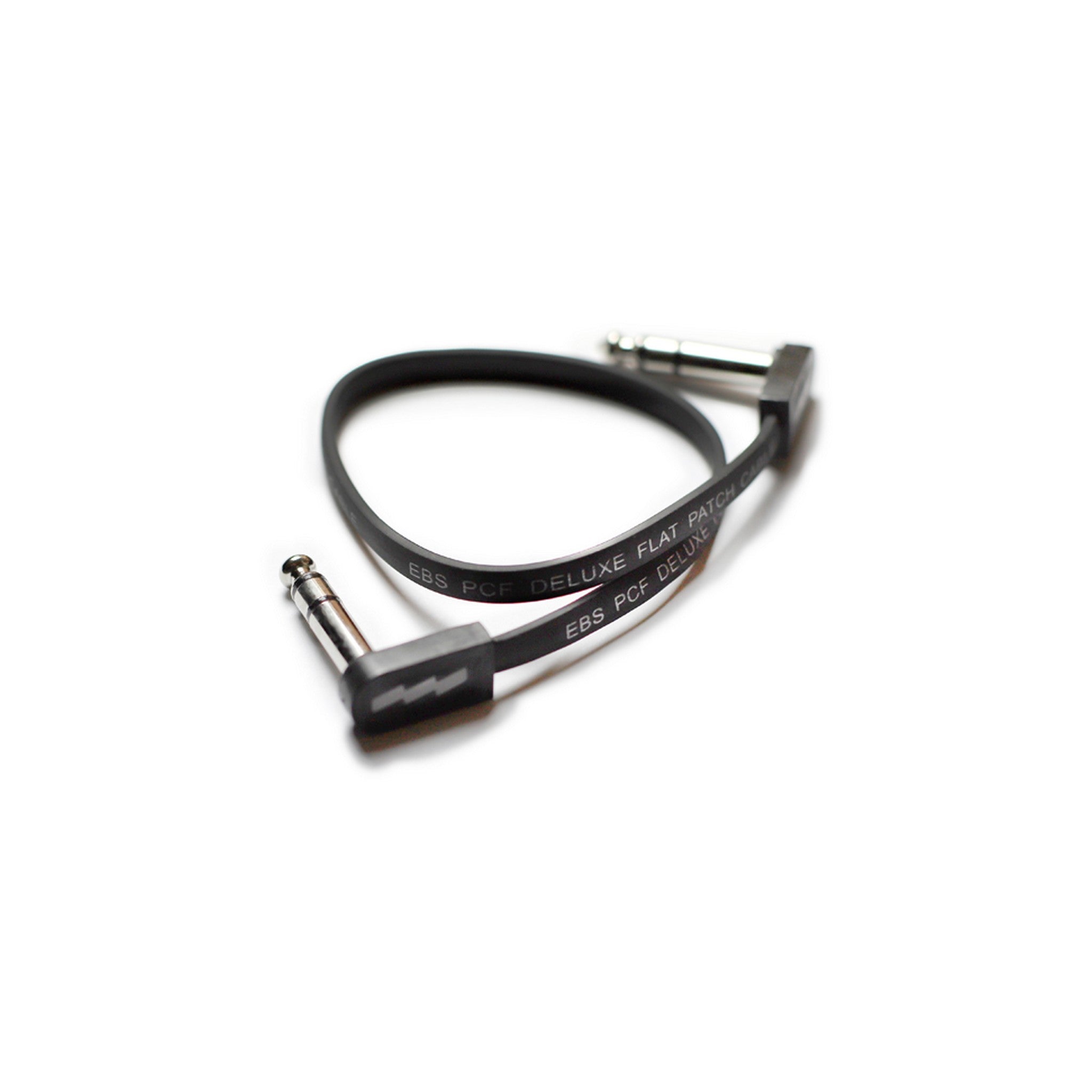

EBS PCF-DLS58 Flat Patch Cable with TRS Stereo Ends, 58cm

If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum by their unique design.

New from September 2021:

30% reduced size contact housing.
Remaining features from the last version:

Very compact size and flexible flat patch cables.

Technical Specifications

Conductor
Flexible copper conductor low voltage audio signal system
Operating Temperature
-15ºC to +70°C
Outer Insulation
PVC (Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Copper Twisted Shield
38 x 0,12mm
Capacitance Cond./Shield
< 10 pF/decimeters
Conductor Resistance
< 10 mOhm/decimeters
Dimensions
6 x 3 mm (rectangular cable)
22 x 11,5 x 5,7 mm (contact house)
Connectors
1/4″ 90 degrees angled TRS Stereo audio plug
