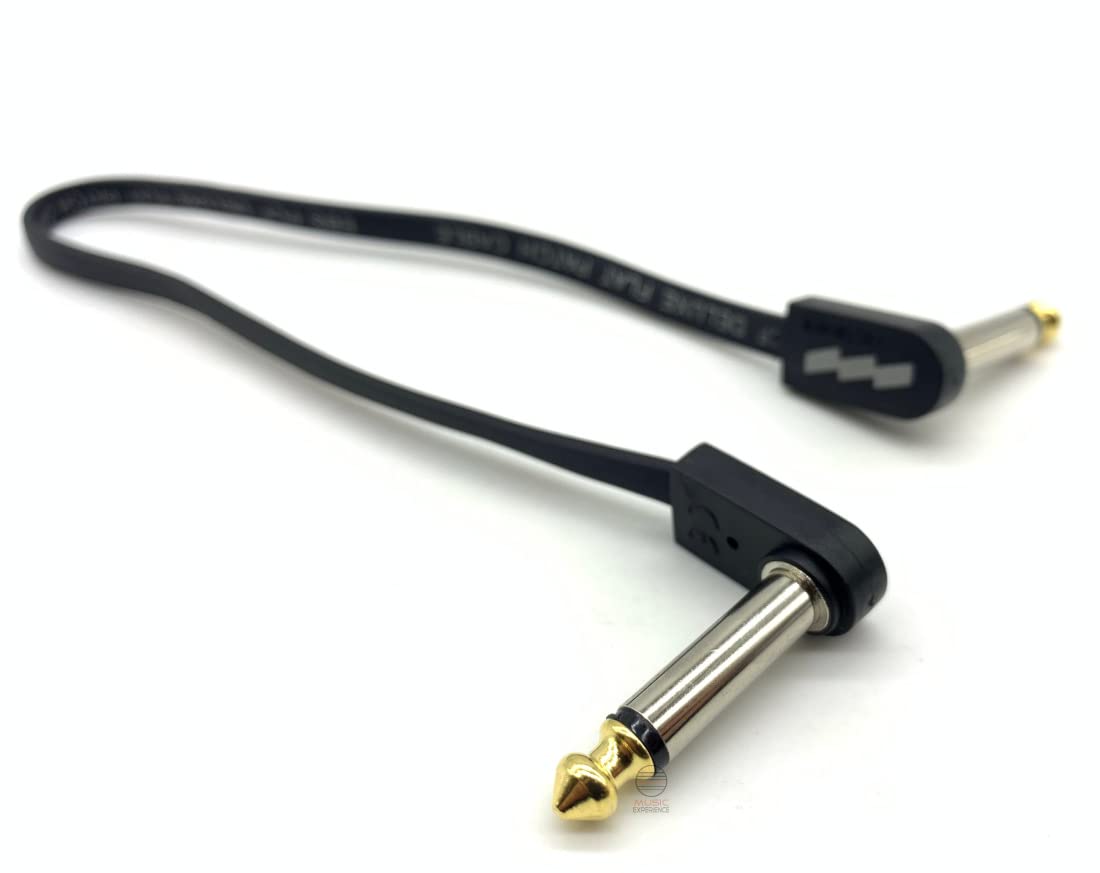

EBS PCF-DL28 Flat Patch Cable, 28cm

If you have ever struggled with limited space on your pedalboard, we share the pain with you.

To end the frustration we’ve designed the truly unique, super compact and affordable EBS Flat Patch Cables. Cables that won’t let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum.

The PCF Deluxe (PCF-DL) series is the most affordable alternative and is an improved version of the original design.

Key Features

• Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
• Very compact size and flexible cables ensure effective use of ALL space on your pedalboard.
• Available in four lengths to cover your needs; 10, 18, 28 and 58 cm.

Technical Specifications

Conductor
Flexible copper conductor low voltage audio signal system
Operating Temperature
-15-deg C to +70-deg C
Outer Insulation
PVC (Polyvinyl Chloride)
Signal Copper Cores
20 x 0,12mm
Signal Insulation
PE (polyethylene)
Copper Twisted Shield
38 x 0,12mm
Capacitance Cond./Shield
< 10 pF/decimeters
Conductor Resistance
< 10 mOhm/decimeters
Dimensions
6 x 3 mm (rectangular cable) 30,0 x 13,0 x 6,0 mm (contact house)
Connectors
1/4” 90 degrees angled audio plug
