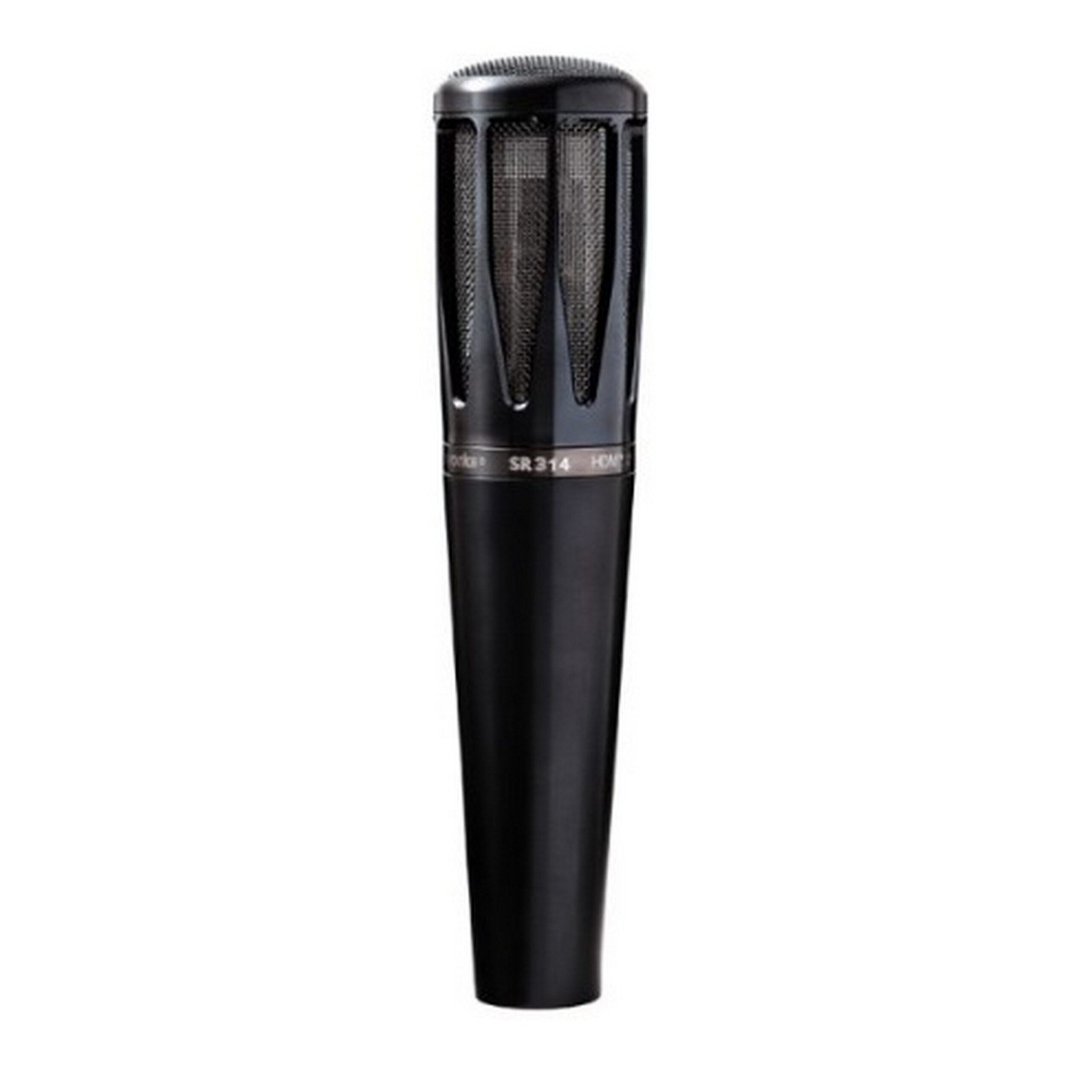

Earthworks SR314-B Cardioid Handheld Vocal Microphone, Black

The Earthworks SR314 is designed from the ground up to meet both the expectations and desires of a modern live performance environment. An extended flat frequency response and a focus on time coherence (fast clean impulse response) sets the Earthworks SR314 apart.

Key Features

• The SR314 democratizes exceptional live music experiences, making them accessible to everyone. Quicker soundchecks and better monitor and in-ear mixes let artists focus on what matters most – the music
• Engineers are unencumbered from the necessities of corrective EQ, heavy compression, de-essing and constant vigilance against feedback
• A tight cardioid polar pattern with a consistent frequency response all the way out to 90 degrees means the SR314 delivers the same quality of sound even when the singer moves off-center

Technical Specifications

Frequency Response
20Hz – 30kHz
Polar Pattern
Cardioid
Sensitivity
10mV/Pa (-40dBV/Pa)
Power Requirements
24-48V Phantom, 10mA
Max Acoustic Input
145dB SPL
Signal-to-Noise Ratio
79dB A-weighted
Output
XLR (pin 2+)
Output Impedance
65 balanced (between pins 2 & 3)
Min Output Load
600 between pins 2 & 3
Noise
15dB SPL equivalent (A weighted)
Dimensions (L x D)
181.1mm x 40.6mm (7.13 x 1.60 inches)
Weight
1.5 lb. (.68kg)
