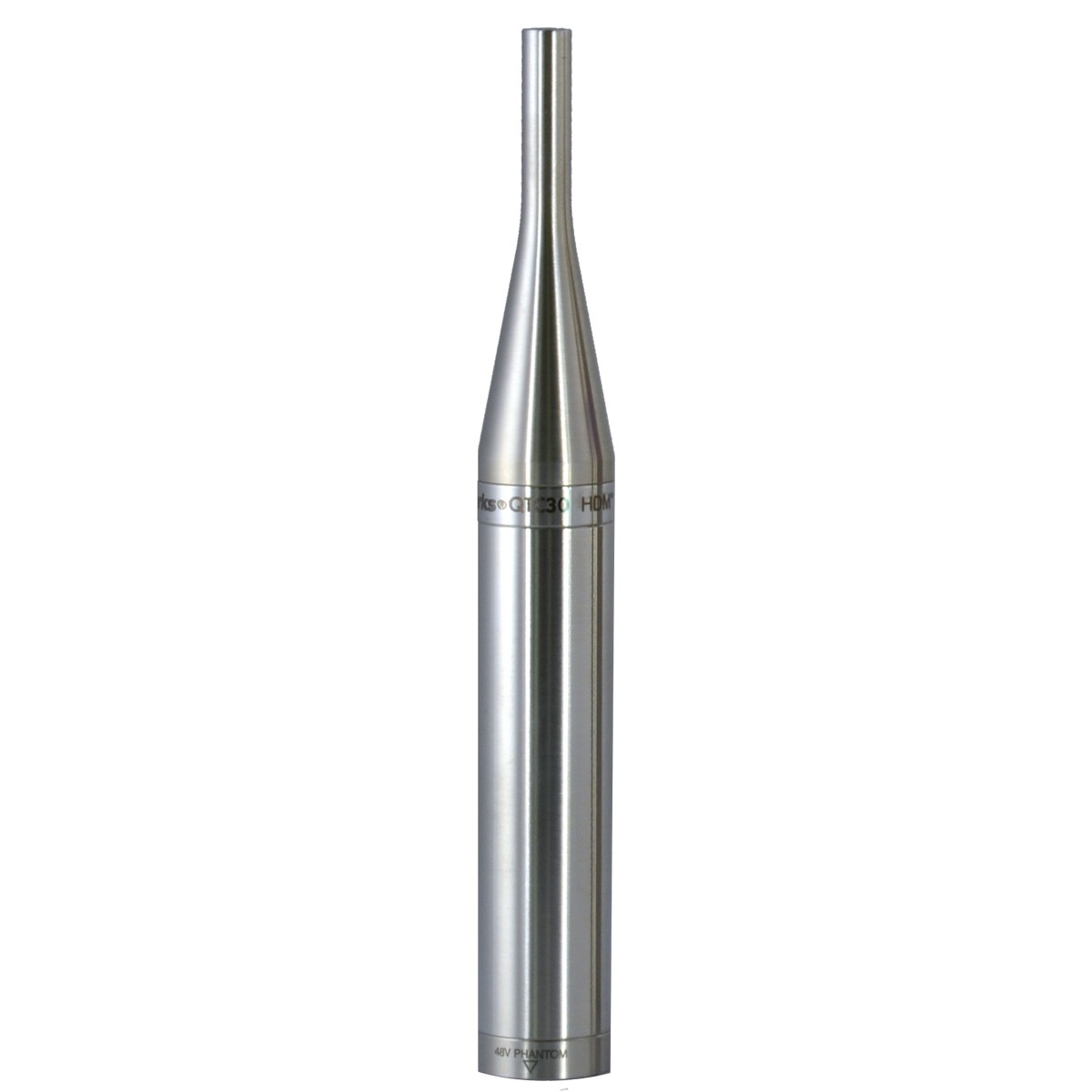

Earthworks model QTC30 Omni Microphone for Quiet Sources

The QTC Series (Quiet Time Coherent) is designed for recording quieter sources such as vocals, strings and distant miked orchestras or choirs. These low-noise omnis are also an excellent choice for drum overheads, close-miked wind and percussion instruments. Earthworks reputation for realism is based on these distinctive omnis. Time Coherent Response means these models do not smear the time domain as most microphones do.

Key Features

• With a frequency response to 40kHz and excellent impulse response, it will reproduce sounds with incredible detail that are true and life-like, making it an ideal and affordable choice for recording applications
• Intended for detailed sources
• Omnidirectional polar pattern
• Flat frequency response, fast impulse response and exceptional polar characteristics
• Accurate and uncolored
• Handles sound levels up to 142dB with no proximity effect or handling noise
• Requires 48V Phantom Power

Technical Specifications

Frequency Response:
6Hz to 30kHz ±1/-3dB

Polar Pattern:
Omnidirectional

Sensitivity:
30mV/Pa (-30.5dBV/Pa)

Power Requirements:
48V Phantom, 10mA

Max Acoustic Input:
142dB SPL

Output:
XLR (pin 2+)

Output Impedance:
100, balanced (50 ea. pin 2 & 3)

Min Output Load:
600 between pins 2 & 3

Noise:
22dB SPL equivalent (A weighted)

Dimensions L x D:
165mm x 22mm (6.5 x .860 inches)

Weight:
0.35 lb. (225g)
