Earthworks DK7 Gen 2 7-Piece Drum Microphone Kit Discount Exclusive

The Earthworks DK7 Gen 2 7-Piece Drum Microphone Kit is a cutting-edge drum microphone kit designed to meet the demands of professional sound engineers and discerning drummers. Building upon the success of its predecessor, the Gen 2 model introduces significant enhancements focused on improving performance and usability.

At the core of these improvements is the refined active electronics. Engineered for efficiency, the new electronics consume less phantom power while incorporating robust safeguards against accidental power surges. This translates to greater reliability and compatibility with a broader range of audio equipment.

Recognizing the value of time, particularly in fast-paced studio or live performance environments, Earthworks has redesigned the rim mounting system. This innovative solution dramatically accelerates setup and breakdown processes without compromising sound quality. Furthermore, the enhanced design offers compatibility with a wider range of drums and percussion instruments.

To ensure optimal protection during transport and storage, the included SKB case has undergone a redesign. The new case is more durable, compact, and easier to handle, providing superior safeguarding for your valuable equipment.

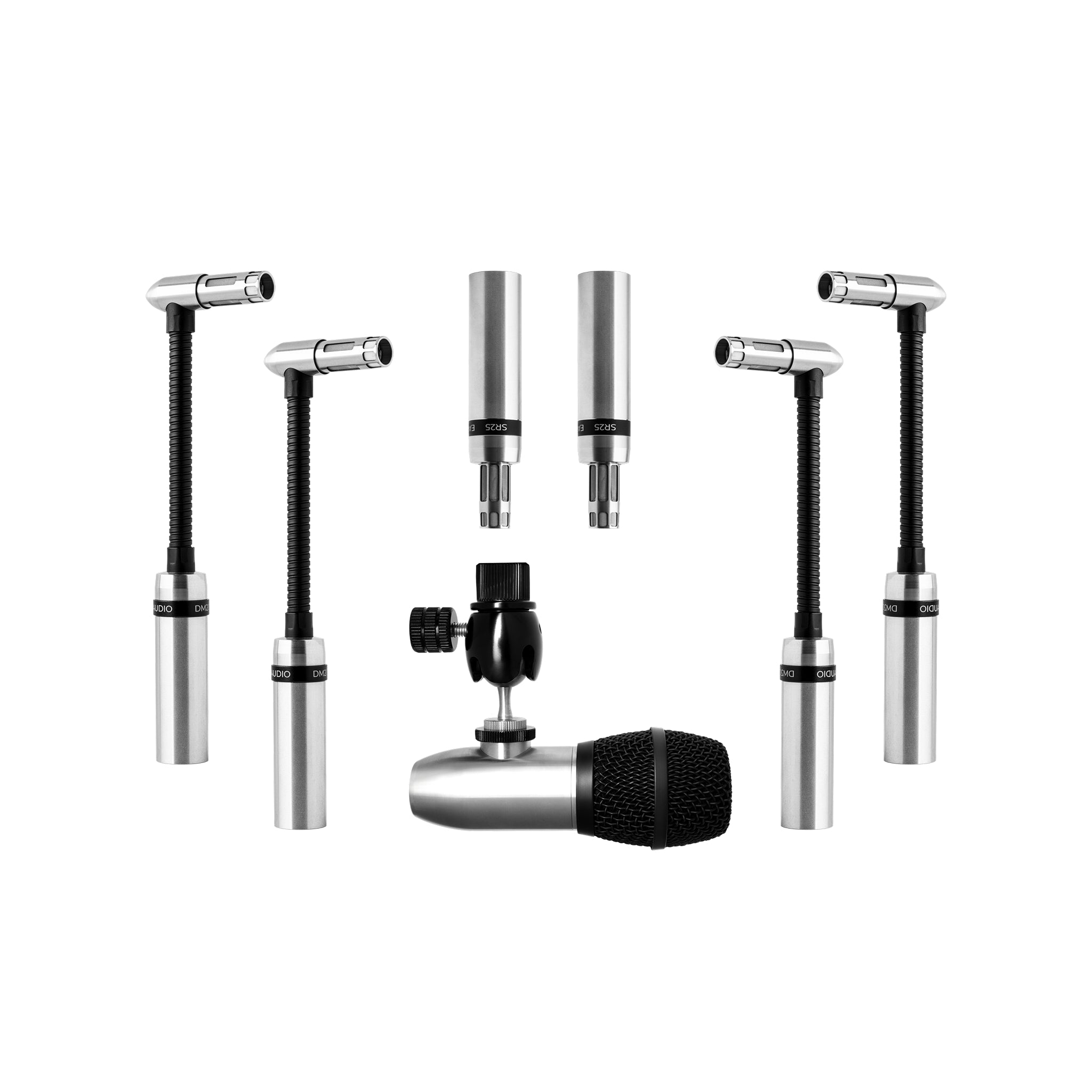

The DK7 Gen 2 is a comprehensive package that includes all essential components for professional drum recording. This kit comprises four DM20 Gen 2 microphones, two SR25 Gen 2 microphones, one DM6, four RM2 rim mounts, three microphone clips, seven microphone bags, six foam windscreens, and a custom SKB case.

It is important to understand the specific characteristics of condenser microphones. Their active nature results in a higher output level compared to dynamic microphones, which may necessitate gain reduction in certain setups. Additionally, condenser microphones require phantom power, which should be engaged on the interface or preamp. To protect the microphones, it is recommended to plug them in with phantom power off and the channel muted. Allow a brief moment after engaging phantom power before unmuting the channel.

The Earthworks DK7 Gen 2 represents a fusion of precision engineering and exceptional performance. It is a tool designed to elevate the sound quality of drum recordings to new heights.

Key Features

• The Earthworks DK7 Gen 2 is an advanced drum microphone kit designed for professional sound engineers and discerning drummers, with significant enhancements focused on performance and usability.
• Refined active electronics consume less phantom power and incorporate robust safeguards against accidental power surges, resulting in greater reliability and compatibility with a broader range of audio equipment.
• Rim mounting system has been redesigned to dramatically accelerate setup and breakdown processes without compromising sound quality, offering compatibility with a wider range of drums and percussion instruments.
• Included SKB case has been redesigned to be more durable, compact, and easier to handle, providing superior safeguarding for valuable equipment during transport and storage.
• Comprehensive package includes all essential components for professional drum recording, such as microphones, rim mounts, microphone clips, microphone bags, foam windscreens, and a custom SKB case.

Technical Specifications

DM20 Gen 2
Frequency Response
20Hz – 20KHz
Polar Pattern
Cardioid
Sensitivity
-51 dBV/Pa (2.8 mV/Pa)
Peak Acoustic Input
157dB SPL
Minimum Load Impedance
1kOhm
Noise
20 dBSPL (A-Weighted)
Power Requirements
48V, 6mA
Dimensions (L X D)
8 in x 0.860 in / 203.2 mm x 21.84 mm
Color
Stainless Steel
Weight
0.40lbs / 0.18kg
Manufacturer Part Number
DM20 G2
Gooseneck L & D
3.5in x 0.375in / 88.9mm x 9.53mm
Included Accessories
RM2 Rim Mount, Microphone Bag, Foam Windscreen

SR25 Gen 2
Frequency Response
20Hz – 25KHz
Polar Pattern
Supercardioid
Sensitivity
-36 dBV/Pa (15.8 mV/Pa)
Noise
20 dBSPL (A-Weighted)
Peak Acoustic Input
148dB SPL
Minimum Load Impedance
1kOhm
Power Requirements
48V, 6mA
Dimensions (L X D)
4.14 in x 0.860 in / 105.15 mm x 21.84 mm
Color
Stainless Steel
Weight
0.25 lbs (0.10 Kg)
Manufacturer Part Number
SR25 G2
Included Accessories
Microphone Clip, Microphone Bag, Foam Windscreen

DM6
Frequency Response
20Hz – 20KHz
Polar Pattern
Supercardioid
Sensitivity (1khz)
-60 dBV/Pa (1mV/Pa)
Peak Acoustic
150 dbSPL
Power Requirements
48V Phantom, 6.5mA
Minimum Load Impedance
1kOhm
Included Accessories
M2-R Ball Mount, Windscreen
Dimensions (L X D)
4.97″ x 1.93″ (Includes windscreen, does not include width of M2-R)
Color
Stainless Steel with Black Windscreen
Weight
1.25 lbs (0.58 kg)
Manufacturer Part Number
DM6
Microphone Type
Condenser

Package Contents
4x DM20 Gen 2 Microphones
2x SR25 Gen 2 Microphones
1x DM6
4x RM2 Rim Mounts
3x Microphone Clips
7x Microphone Bags
6x Foam Windscreens
1x Custom SKB Case
