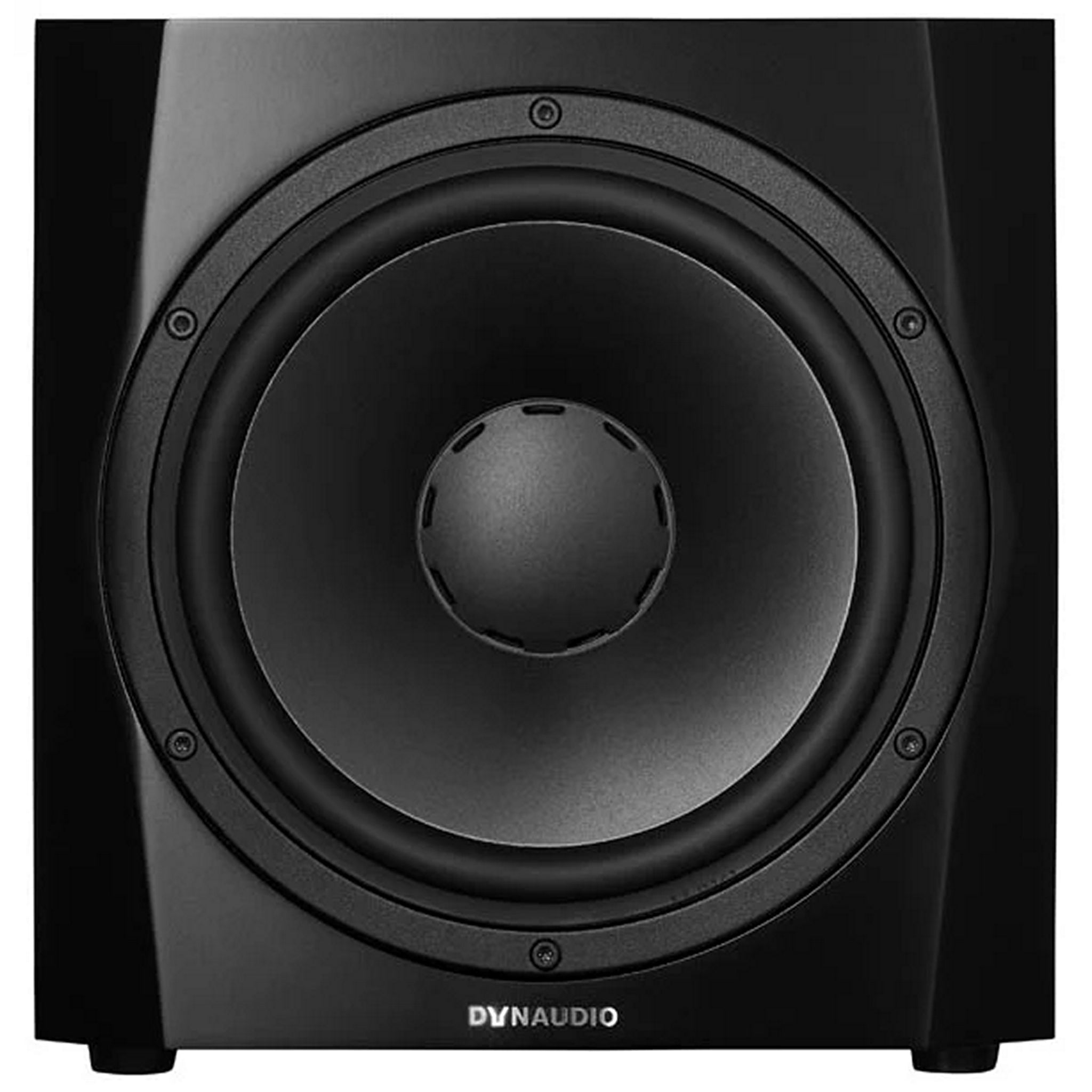

Dynaudio SUB 9S 300W Powered Studio Subwoofer, 9.5-Inch

The 9S subwoofer is designed to complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.

Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.

The 9S will expand any studio monitor setup regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.

A long-throw driver ensures the necessary movement to reproduce super low-end frequencies all the way down to 22Hz in great detail. Running the show is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.

Key Features

• 300-watt state-of-the-art Class D amplifier module
• 9 in long-throw MSP woofer for accurate low-end frequency reproduction
• 22-175 Hz frequency range
• Sealed, black-vinyl cabinet
• 37mm front baffle
• Master/Slave feature for daisy-chaining multiple subwoofers
• Adjustable lowpass filter to set the perfect crossover frequency
• SAT output with defeatable high pass filter

Technical Specifications

System
Single driver, active 9in subwoofer
Analog inputs
1 x XLR LFE, 2 x XLR Stereo
Analog outputs
1 x XLR Slave Out, 2 x XLR SAT Out
Frequency Response (?3dB)
22Hz – 175Hz
Max SPL
106dB
Auto ON/OFF
Yes
Box principle
Sealed
High pass filter
Flat / 60 / 80Hz
Low pass filter
50Hz -150Hz
Phase adjustment
0/180 degrees
Woofer
230mm MSP
Amplifier
300W Class-D
AC power input
100-120V/200-240V 50/60Hz
Standby power consumption
< 0.5W
Maximum power consumption
350W
Weight
10.5kg / 23.1lb
Dimensions (W x H x D)
266 x 276 x 320mm
Shipping box dimensions (W x H x D)
400 x 430 x 400mm
