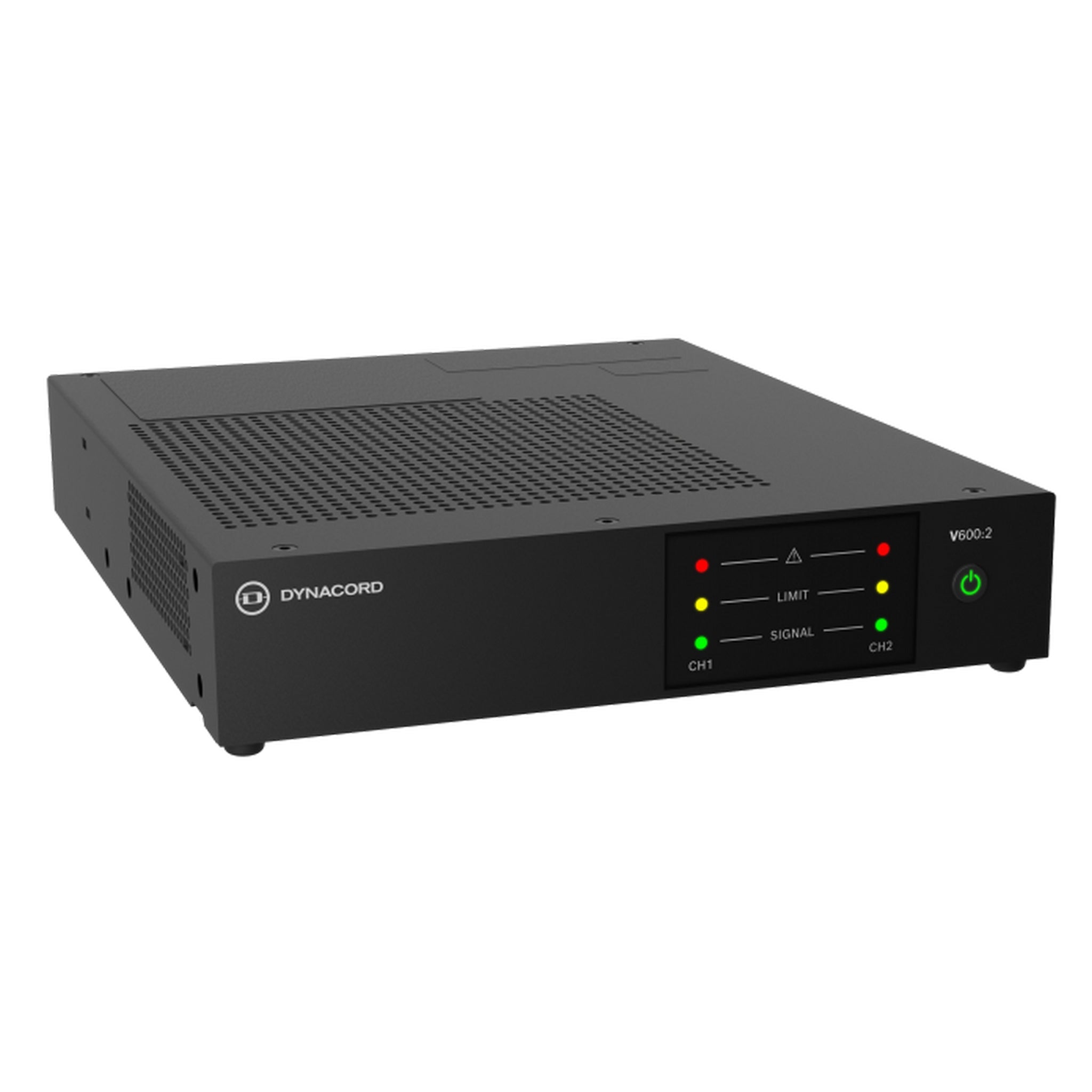

Dynacord V600:2 2-Channel Power Amplifier Buy Cheap Eastbay

With a total output capacity of 600 watts, the Dynacord V600:2 2-Channel Power Amplifier is designed for background music, announcements, and higher SPL levels in small to mid-sized fixed installations such as educational facilities, hospitality venues, retail areas, and houses of worship. Integrators can mix and match different V Series models to meet specific project requirements, offering installation versatility. The V600:2 shares top features with the V600:4 model, providing installation flexibility, power efficiency, and reliability.

Featuring advanced Dynacord technologies like powerTANK, Variable Load Drive (VLD), ecoRAIL, and dualCOOL, the V600:2 offers flexible power usage, reduced consumption, and silent operation.

At just one rack unit high and half a rack width wide, the V600:2 offers various installation options in limited spaces. Brackets enable single or dual rack-mounting and discreet installation under counters. Two amplifiers can fit in one rack unit when mounted side by side, optimizing space and doubling the channel count and output power.

powerTANK: Adapts amplification power across channels without manual configuration.
dualCOOL: Operates as a convection-cooled amplifier and has a multi-speed fan for extreme thermal conditions.
ecoRAIL: Maintains audio output while reducing power consumption, with an Auto Power Down (APD) mode for minimal power usage.
PFC Power Supply: Includes protection features for professional power amplifiers, ensuring optimal performance in all conditions.

Key Features

• Affordable and adaptable two-channel power amplifier designed for small to mid-sized commercial installations, perfect for background music and announcements
• Incorporates innovative Dynacord technologies to minimize ownership costs, featuring low energy consumption and adjustable power-load distribution
• User-friendly operation and reliable performance, even in challenging power conditions, housed in a compact form factor of one RU high and half a rack width wide.

Technical Specifications

Total rated Output Power
600 W
Number of Channels
2
Rated Output Power
2 x 300 W
Output Power
4 Ω / 8 Ω / 70 V / 100 V
Maximum Output Power per Channel (Power Sharing)
500 W / 600 W / 500 W / 600 W
Amplifier
4 Ω / 8 Ω / 70 V / 100 V
Nominal Gain
(+6 dBu input sensitivity, LEVEL 0 dB)
27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
Signal to Noise Ratio
(A‑weighted, ref. to rated output power, LEVEL 0 dB)
> -100 dB / > 102 dB / > 101 dB / > 103 dB
THD+N
(1/8 RATED OUTPUT POWER, 1 KHZ)
< 0.1 %
Connectivity Type
1 x 6-pin Euroblock, 3.81 mm, male,
parallel 1x RJ45 (AES72-1E)
Loudspeaker Output
2 x 4-pin Euroblock, 5.08 mm, female
Control Port Type
1 x 5-pin Euroblock, 3.81 mm, male
Signal Processing
Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
Power Requirements
100 V to 240 V, 50 Hz to 60 Hz AC
Power Consumption
Idle mode (ecoRAIL with no input signal): < 12 W
Consumption at 1/8 rated output power: 115 W
Standby mode (APD active): < 1 W
Protections
Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
