DPA 6066 CORE Omni Headset Microphone, Brown, Mini-Jack Free Shipping Largest Supplier

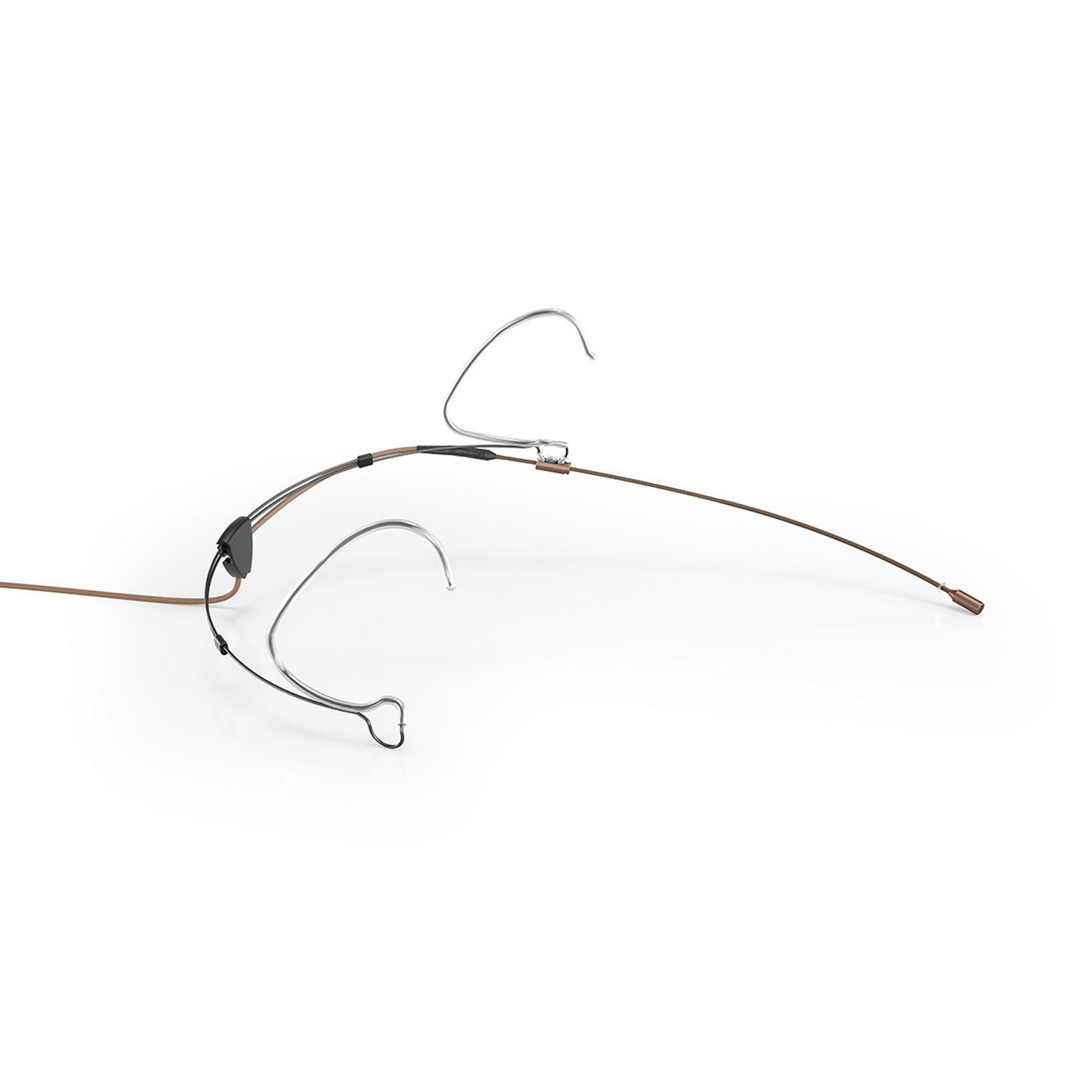

DPA 6066-OC-R-C34 6066 CORE Omni Headset Microphone, Brown, Mini-Jack

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Key Features

• Amazing 3 mm CORE by DPA capsules technology
• Renowned DPA sound in a 60% smaller capsule
• One-size-fits-all, headset fits securely and comfortably
• 2-way adjustable, non-reflective boom with locking system
• Unique, comfortable 3-point gripping system above, below and behind the ear
• New 90 cable management constructed to guide the cable and minimize cable breaks

Technical Specifications

Directional pattern
Omnidirectional
Principle of operation
Pre-polarized condenser
Principle of operation
Pressure
Effective frequency response
20 Hz – 20 kHz
Frequency range, +/-2 dB
40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
Distortion, THD < 1%
125 dB SPL RMS, 128 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, THD 10%
144 dB SPL peak
Rated output impedance
From MicroDot: 30 – 40 OHM. From DAD6001-BC: 100 OHM
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power +/-4 V for full performance. Works from 12V
Weight
11 g (0.40 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule diameter
3 mm (0.12 in)
Cable length
1.3 m (4.3 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40C to 45C (-40F to 113F)
Relative humidity (RH)
Up to 90%
