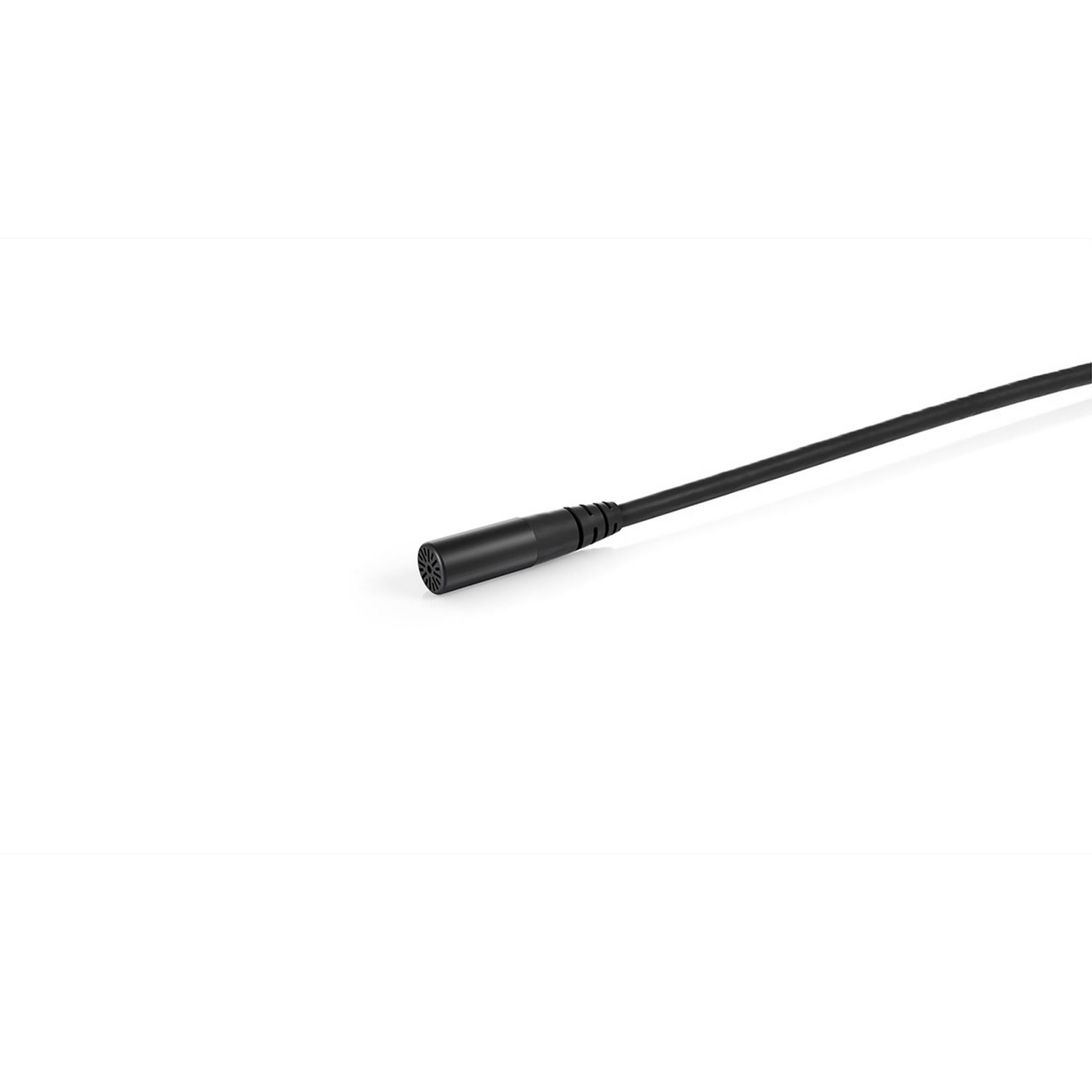

DPA 6060-OC-U-B34 d:screet CORE 6060 Omni Submini Microphone, Normal SPL, Black, Mini-Jack

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Now we’ve taken the amazing CORE technology and shrunk it down to fit into our (0.12 in) subminiature mics. This means that, despite their small size, the performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.

Advanced new mic design
This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of our 5 mm (0.20 in) versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

The cable is often the weak spot on these types of mics, but we have opted to use the same size cable (- 1.6 mm (.06 in)) and the same rugged cable relief as on our 5 mm (0.20 in) mics. The cables are extremely durable, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls. A strain relief is integrated in the mic housing to strengthen the assembly.

The cable and capsule design ensure immunity to noisy wireless devices. These mics are typically connected to a wireless belt pack and we offer a comprehensive mix of adapters to suit the many wireless transmitters available. When used with an adapter, the connector is our MicroDot but we also offer hardwired terminations to suit the most popular systems from manufactures such as Shure and Sennheiser. All of our connectors are equipped with a rugged strain relief.

It’s the only 3 mm (0.12 in) mic that gives you the DPA sonic quality that you know and love.

Technical Specifications

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Effective frequency response
20 Hz – 20 kHz
Frequency range, +/-2 dB
40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 24 dB(A) re. 20 uPa (max. 26 dB(A))
Distortion, THD < 1%
123 dB SPL RMS, 126 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated output impedance
From MicroDot: 30 – 40 OHM. From DAD6001-BC: 100 OHM
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power +/-4 V for full performance. Works from 12V
Weight
8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter
3 mm (0.12 in)
Cable length
1.8 m (5.9 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40C to 45C (-40F to 113F)
Relative humidity (RH)
Up to 90%
