DPA 4090 Omnidirectional Microphone, Normal SPL, P48

This is a high-quality omnidirectional condenser microphone. Due to its uniquely natural and open sound, the 4090 is suitable for instrument-miking applications in the studio or on the stage.

With 134 dB SPL handling, this microphone can be used with essentially any instrument from acoustic guitar and strings to piano and wind instruments. Due to their remarkably linear frequency response in the 20 Hz to 20 kHz range, sound system engineers can also use these mics for sound system alignment, testing and tuning.

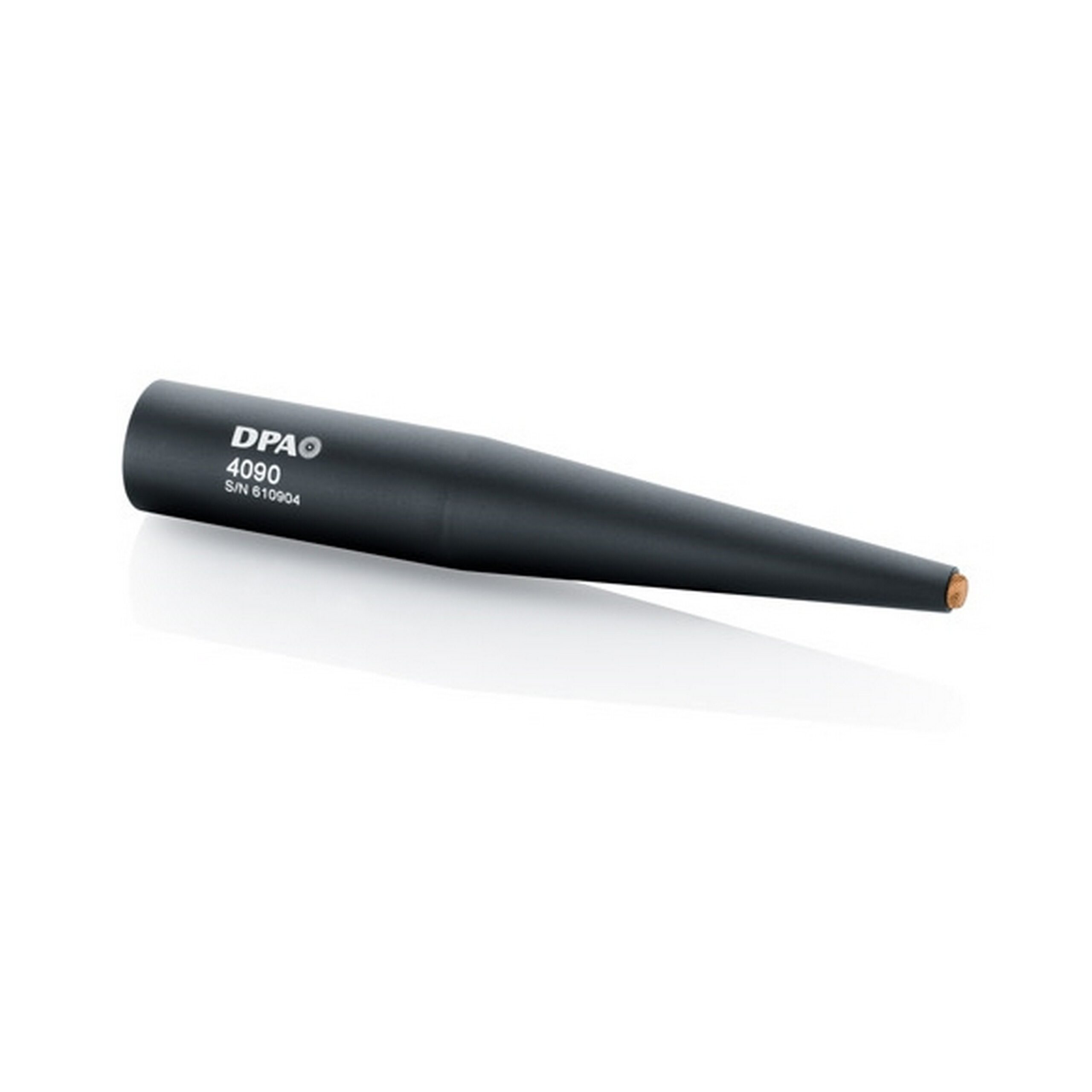

The rugged and compact design features a 5.4 mm (.21 in) diameter pre-polarized condenser capsule in a tapered body measuring just 12 cm (4.76 in).

Technical Specifications

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz – 20 kHz
Effective frequency range +/-2 dB
20 Hz – 20 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 uPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 35 dB (max. 38 dB)
Distortion, THD < 1%
120 dB SPL RMS, 123 dB SPL peak
Dynamic range
Typ. 100 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated output impedance
< 40 OHM
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balanced
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
P48 (Phantom Power)
Current consumption
2 mA
Color
Black
Weight
38 g (1.34 oz)
Microphone diameter
19 mm (0.75 in); at tip 6.7 mm (0.26 in)
Microphone length
122 mm (4.8 in)
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40C to 45C (-40F to 113F)
Relative humidity (RH)
Up to 90%
