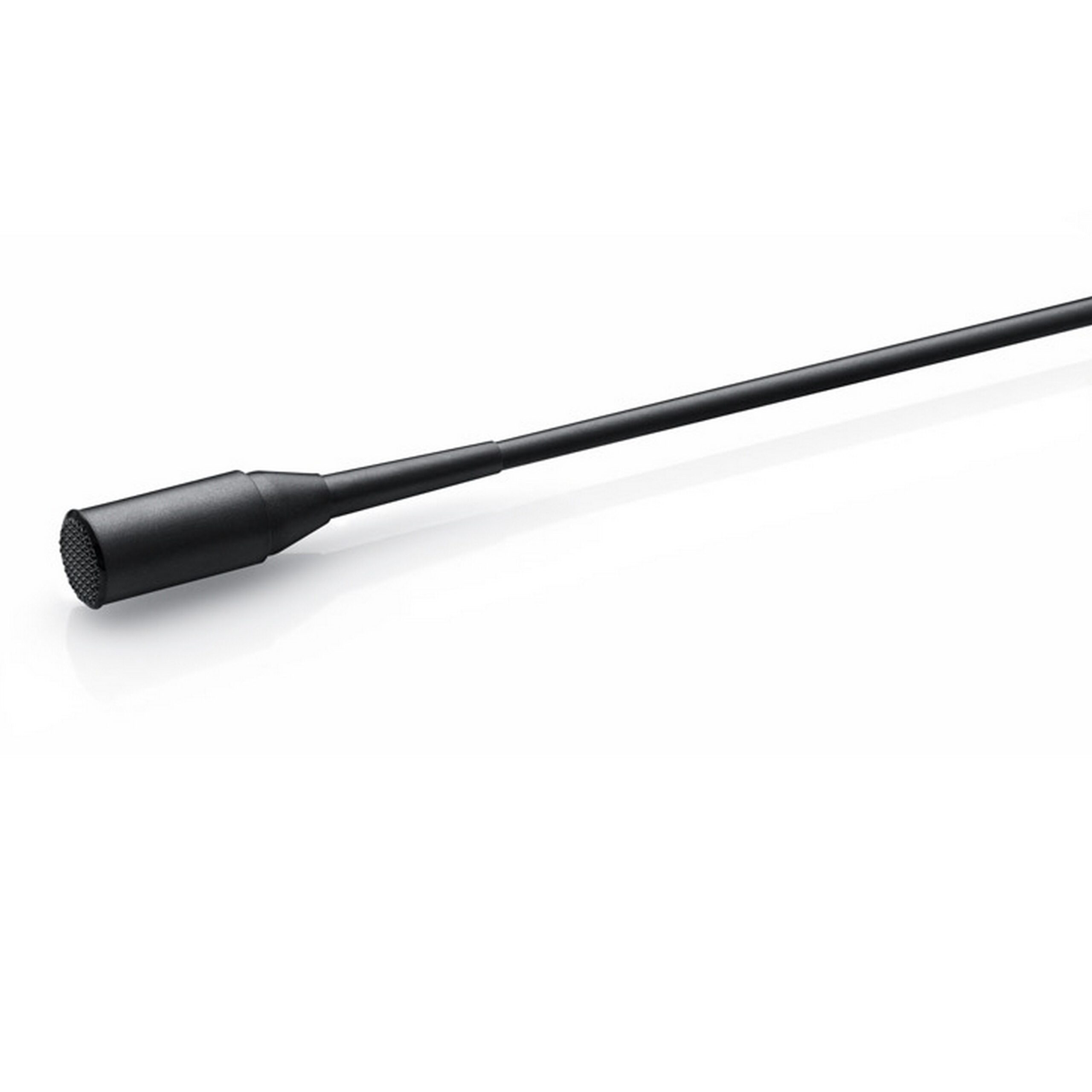

DPA 4071 Core Presence Boost, Loud SPL Omnidirectional Lavalier Microphone, Black, MicroDot Clearance 2025

DPA 4071-OC-C-B00 Core Presence Boost, Loud SPL Omnidirectional Lavalier Microphone, Black, MicroDot

The 4071 Miniature Omnidirectional Microphone, Presence Boost is a fantastic lavalier mic, which features a presence boost of typically 5 dB at 4 to 6 kHz. This is critical for a chest-placed microphone because the frequency range of the consonants spoken is damped in this position, which results in poor intelligibility. The 4071 has a boost that maximizes speech intelligibility. This microphone will be able to handle sound pressure levels up to 144 dB before clipping occurs.

When recording voices from mic placement on a performer’s body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut at 100 Hz has been incorporated in the 4071’s capsule so the built-in preamplifier (and the wireless system) will have a much larger headroom. Furthermore, the low-cut filter removes low-frequency rumble, noise and proximity effect.

Because of its special optimization for speech, this mic is especially appropriate for ENG news crews since very few ENG mixers have the ability to make this type of compensation. It is also a fantastic choice for in-studio reporters or even hidden under clothing for film production use.

The 4071 is available in three colors: black, beige and white. An even more robust, heavy-duty version is also available.

Technical Specifications

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz – 20 kHz
Effective frequency range +/-2 dB
100 Hz – 15 kHz with typ. 5 dB soft boost at 4 – 6 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
Distortion, THD < 1%
120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% – CORE
134 dB SPL RMS, 137 dB SPL peak
Dynamic range
Typ. 97 dB
Dynamic range – CORE
Typ. 111 dB
Max. SPL, THD 10%
144 dB SPL peak
Rated output impedance
30 – 40 OHM
Cable drive capability
Up to 300 m (984 ft)
Power supply (for full performance)
For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance
Weight
7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter
5.4 mm (0.21 in)
Microphone length
17 mm (0.67 in)
Cable length
1.8 m (5.9 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
