DPA 4018VL-B-WI2 d:facto Linear Supercardioid Handheld Microphone Capsule, Black, WI2 Adapter Compatlbie with Wisycom Transmitters

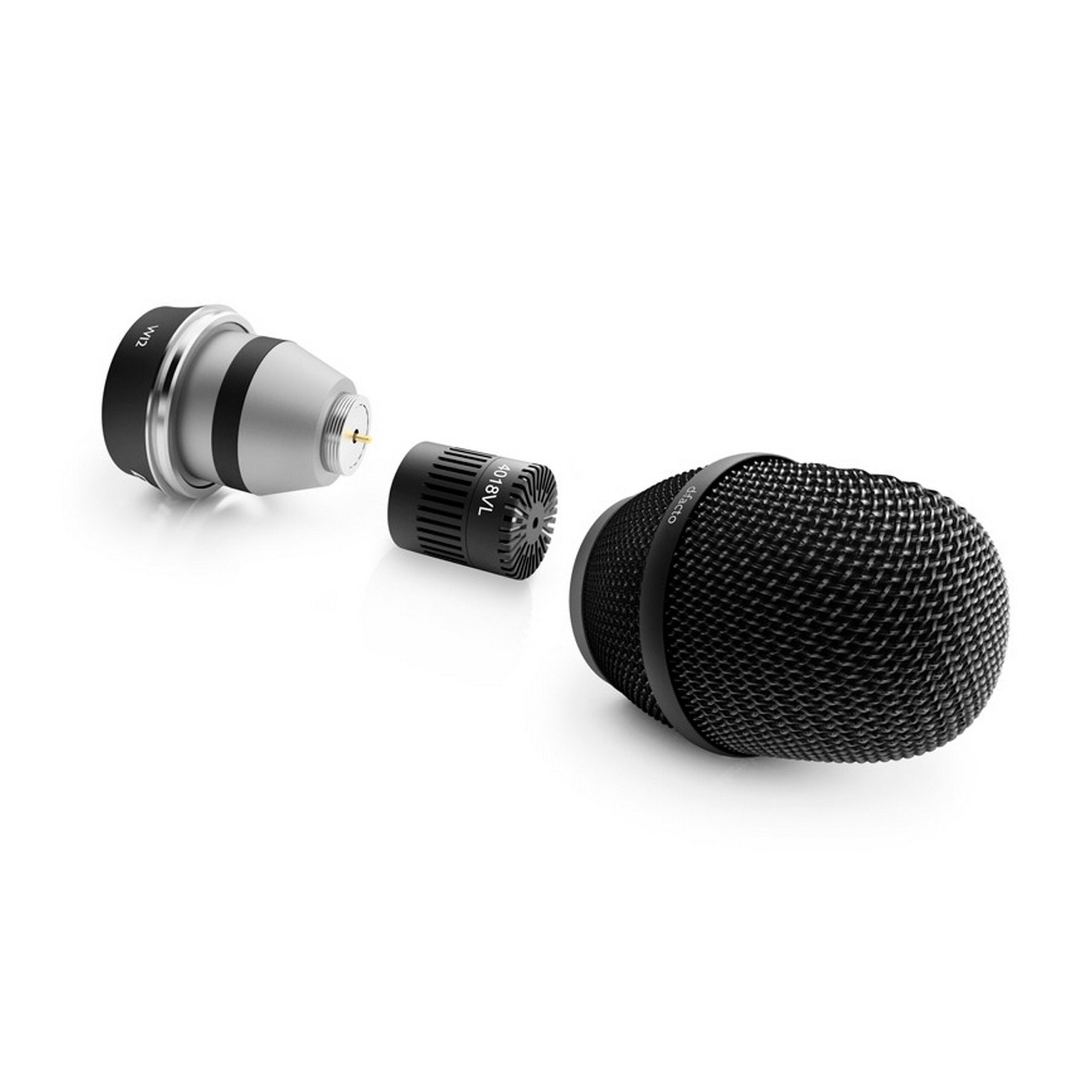

The d:facto series brings true studio sound to the live stage and broadcasting studio. These mics are available in an extremely linear version as well as in a version with a high-end boost. The modular nature of the d:facto series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Key Features

• Extraordinarily natural sound
• Perfectly uniform supercardioid directionality
• High separation
• Extreme SPL handling
• Low handling noise
• Sleek design
• Flexible adapter system fits most professional wireless systems

Technical Specifications

Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz – 20 kHz, permanent third order high pass filter at 80 Hz
Frequency range, +/-2 dB, at 12 cm (4.7 in)
100 Hz – 16 kHz
Sensitivity, nominal, +/-2 dB at 1 kHz
5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 19 dB(A) re. 20 uPa (max. 21 dB(A))
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 75 dB(A)
Total harmonic distortion (THD)
< 1% up to 139 dB SPL peak
Dynamic range
Typ. 120 dB
Max. SPL, peak before clipping
160 dB
Output impedance
100 OHM
Minimum load impedance
1 kOHM
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB at 1 kHz
Power supply (for full performance)
48 V Phantom power (+/- 4 V)
Current consumption
Max. 2 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Weight
309 g (10.9 oz)
Microphone diameter
52 mm (2.05 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
205 mm (8.1 in)
Maximum output voltage, RMS
8 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40 deg C to 45 deg C (-40 deg F to 113 deg F)
Relative humidity (RH)
Up to 90%
