DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters Quality Free Shipping Outlet

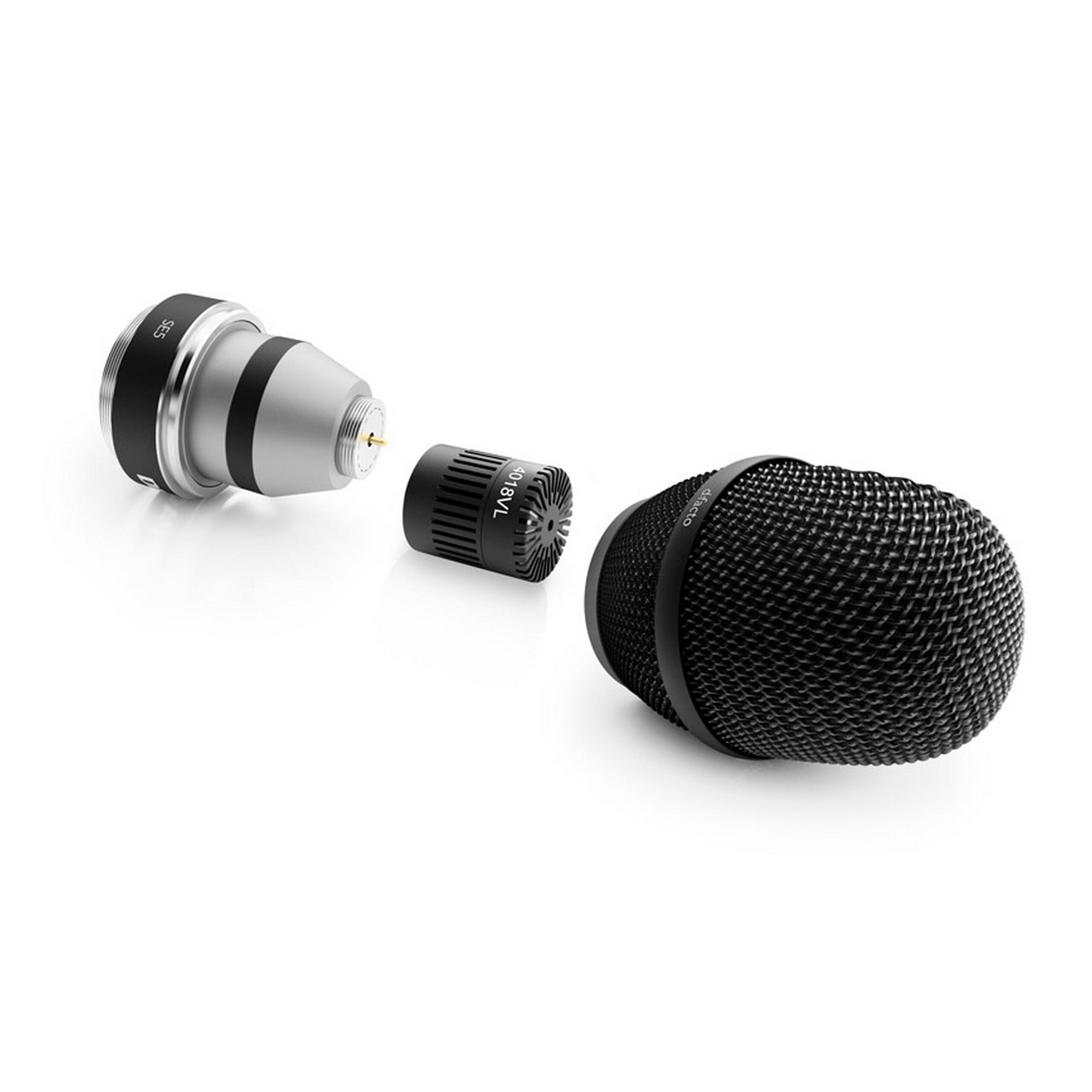

DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters

The DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule in Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters, is your go-to solution for achieving studio-quality sound in live stage and broadcasting settings. Distinguished by its extraordinarily natural sound, this microphone capsule maintains a perfectly uniform supercardioid directionality, making it a top choice for professional vocalists and sound engineers. The d:facto series also boasts modularity, allowing you to switch both the capsule and the adapter, providing unmatched flexibility in your recording and performance setups.

Whether you’re performing on a live stage or in a controlled studio environment, the DPA 4018VL guarantees high separation and extreme SPL handling. It features a sleek design and low handling noise, ensuring that your audience gets only the clearest and most precise sound. With a flexible adapter system that fits most professional wireless systems, this microphone capsule is as versatile as it gets.

Key Features

• Extraordinarily natural sound
• Perfectly uniform supercardioid directionality
• High separation
• Extreme SPL handling
• Low handling noise
• Sleek design
• Flexible adapter system fits most professional wireless systems

Specifications

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz – 20 kHz
• Permanent third order high pass filter at 80 Hz
• Frequency range +/-2 dB, at 12 cm (4.7 in): 100 Hz – 16 kHz
• Sensitivity, nominal +/-2 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 19 dB(A) re. 20 uPa (max. 21 dB(A))
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 75 dB(A)
• Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
• Dynamic range: Typ. 120 dB
• Max. SPL, peak before clipping: 160 dB
• Output impedance: 100 OHM
• Minimum load impedance: 1 kOHM
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
• Power supply (for full performance): 48 V Phantom power (+/- 4 V)
• Current consumption: Max. 2 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
• Weight: 309 g (10.9 oz)
• Microphone diameter: 52 mm (2.05 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 205 mm (8.1 in)
• Maximum output voltage, RMS: 8 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 deg C to 45 deg C (-40 deg F to 113 deg F)
• Relative humidity (RH): Up to 90%

Package Contents

• DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black
• SE5 Adapter Compatible with Sennheiser 5200 Transmitters
