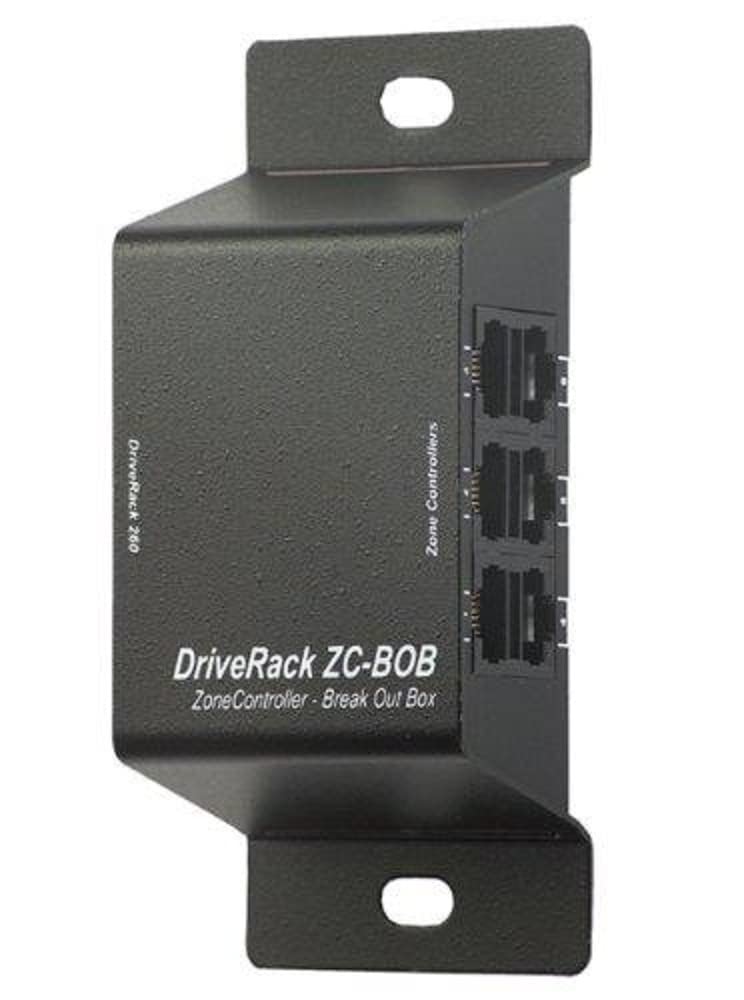

DBX ZC-BOB Breakout Box for DriveRack and ZonePro

The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ -45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-BOB allows “home run” or parallel wiring to the DriveRack and ZonePRO devices.

All information is subject to change without notice.

Recommended for: Installed.

Key Features

• The remote device shall provide up to 6 RJ-45 input jacks for “Home Run” or parallel wiring configurations of the dbx ZC wall panel controllers, and one output RJ-45 jack for connection to the dbx DriveRack or ZonePRO device.
• The device shall be a dbx ZC-BOB remote controller.

Technical Specifications

Connectors
(2) RJ-45
Series Wiring
Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB
Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable
CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications
UL 60065, IEC 60065, EN 55013, E60065
