Countryman H6DW5BSX Directional H6 Headset Microphone with Samson Hirose 6 Pin Connector, Black Get Authentic

Countryman H6DW5BSX Directional H6 Headset Microphone with Samson Hirose 6 Pin Connector, Black

H6DW5BSX, Samson: TX3 (Black), UT5, UT6, (D) Directional, (W5) Standard gain for general speaking, (B) Black. Compatible with SamsonTX3 (Black), UT5, UT6

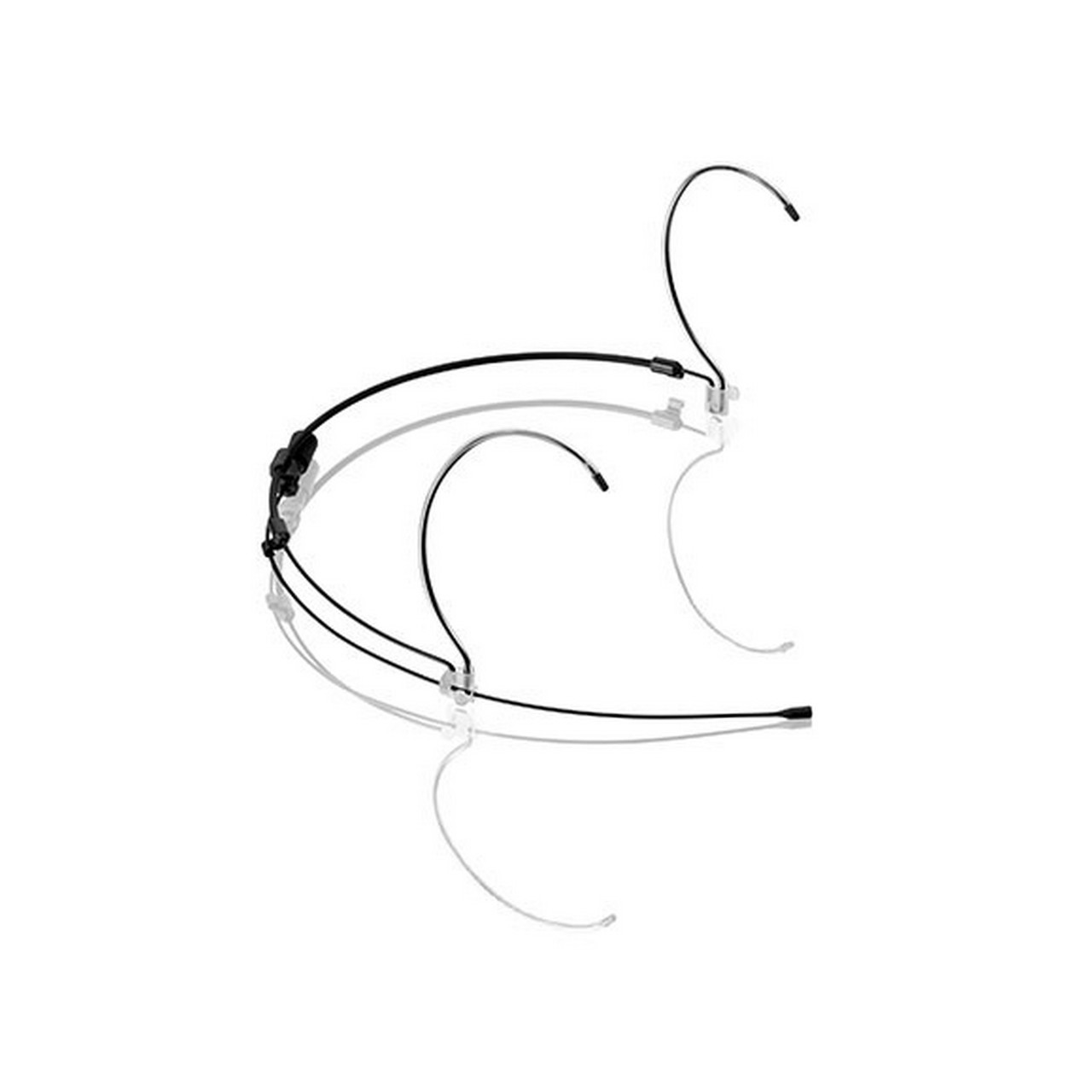

The H6 Headset is the lowest profile headset microphone in the world. Combining the transparent sound quality and water-resistant capsule design of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe, the H6 Headset is perfect for houses of worship, theaters, broadcasters, and presenters.

Technical Specifications

Frequency Response
Omnidirectional: 20 Hz to 20 kHz
Directional: 30 Hz to 15 kHz
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight:
0.07 oz (2 g)
Sensitivity
Omnidirectional W5 (no band): 7.0 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal
Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Equivalent Acoustic Noise
W5: 24 dBA
W6: 29 dBA
W7: 39 dBA
Overload Sound Level
Omnidirectional W5: 120 dB SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL
Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Cable Length
5 Feet
What’s Included
H6 Headset Microphone
H6 Headset Cable (optional)
Black and White Single Tie Cable Clips
Omnidirectional Protective Caps (+0, +4, and +8 included with Omnidirectional Headsets)
Directional Protective Caps (Hypercardioid and Cardioid included with Directional Earsets)
Windscreen
Carrying Case
