Countryman H6DW5BSB Directional H6 Headset Microphone with Sabine Screw on Mini 4 Pin Connector, Black Manchester For Sale

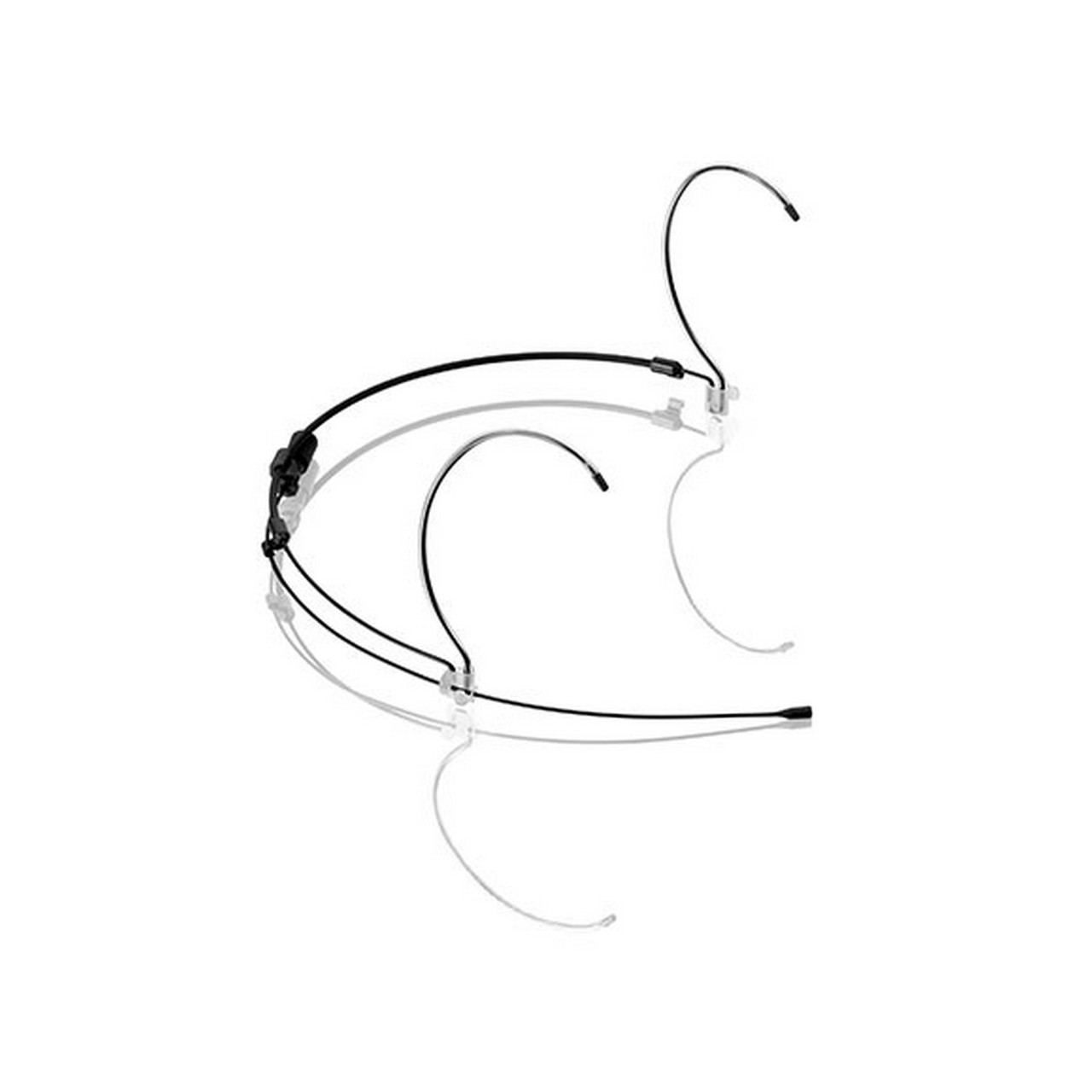

Countryman H6DW5BSB Directional H6 Headset Microphone with Sabine Screw on Mini 4 Pin Connector, Black

H6DW5BSB, Sabine: SW16T, SW30T, (D) Directional, (W5) Standard gain for general speaking, (B) Black. Compatible with SabineSW16T, SW30T

The H6 Headset is the lowest profile headset microphone in the world. Combining the transparent sound quality and water-resistant capsule design of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe, the H6 Headset is perfect for houses of worship, theaters, broadcasters, and presenters.

Technical Specifications

Frequency Response
Omnidirectional: 20 Hz to 20 kHz
Directional: 30 Hz to 15 kHz
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight:
0.07 oz (2 g)
Sensitivity
Omnidirectional W5 (no band): 7.0 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal
Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Equivalent Acoustic Noise
W5: 24 dBA
W6: 29 dBA
W7: 39 dBA
Overload Sound Level
Omnidirectional W5: 120 dB SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL
Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Cable Length
5 Feet
What’s Included
H6 Headset Microphone
H6 Headset Cable (optional)
Black and White Single Tie Cable Clips
Omnidirectional Protective Caps (+0, +4, and +8 included with Omnidirectional Headsets)
Directional Protective Caps (Hypercardioid and Cardioid included with Directional Earsets)
Windscreen
Carrying Case
