Countryman E6DP5L1 Earset Microphone, Directional, Light Beige, 1mm Cable, XLR Hardwired Visa Payment

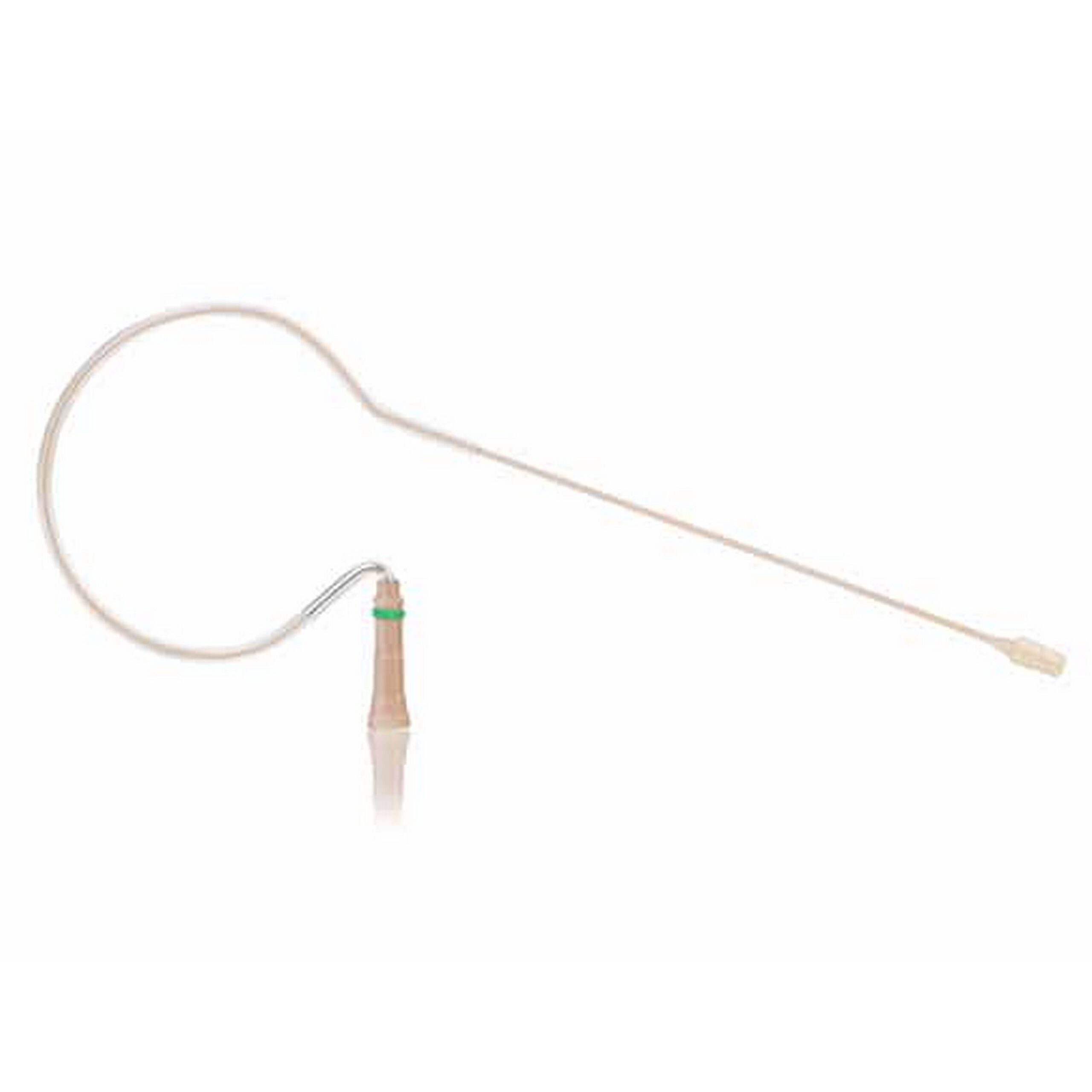

Countryman E6DP5L1 Earset Microphone, Directional, Light Beige, 1mm Cable, XLR Hardwired

E6DP5L1, Hardwired/XLR, Classic/springy boom, (D) Directional, (P5) standard gain for general speaking, (L) Light Beige, (1) 1mm aramid-reinforced cable

Our most popular microphone, the extremely low-profile E6 Earset delivers beautifully uncolored audio while rejecting surrounding noise and feedback. An ultra-miniature electret condenser element is held close to the mouth by a thin boom and comfortable earpad. Three sensitivity options cover general speaking applications through extremely powerful vocals. Four colors allow you to match the E6 to your skin tone for minimum visibility. The element is available as a water- and wind-resistant omnidirectional microphone or as a pattern-changeable directional microphone for maximum isolation and gain before feedback. The boom adjusts for a custom fit and is available in our classic springy style, the extremely flexible “i” style, or the Flex style providing a soft boom in front and a springy ear section.

NEARLY INVISIBLE
Countryman Earsets are the smallest, lightest, and least visible head-worn microphones.

FUTURE-PROOF
The E6 detachable connector makes cable or transmitter changes easy.

RUGGED AND RELIABLE
The E6 Earset’s stainless steel, boom is incredibly tough and can be bent and re-bent many times to fit different performers. The E6 is highly resistant to makeup, sweat and moisture when used with the supplied protective caps. The aramid-reinforced cable and braided RF shielding are ready for years of service in demanding environments.

ULTRA LIGHTWEIGHT
With a weight of .07 oz the E6 Earset is as light as it gets! You‘ll forget it’s even there.

Technical Specifications

Frequency Response
Omnidirectional: 20 Hz to 20 kHz
Directional: 30 Hz to 15 kHz
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight
0.07 oz (2 g)
Sensitivity
Omnidirectional W5 (no band): 7.0 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal

Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Equivalent Acoustic Noise
W5: 24 dBA
W6: 29 dBA
W7: 39 dBA
Overload Sound Level
Omnidirectional W5: 120 dB SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL

Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Cable Length
5 Feet
