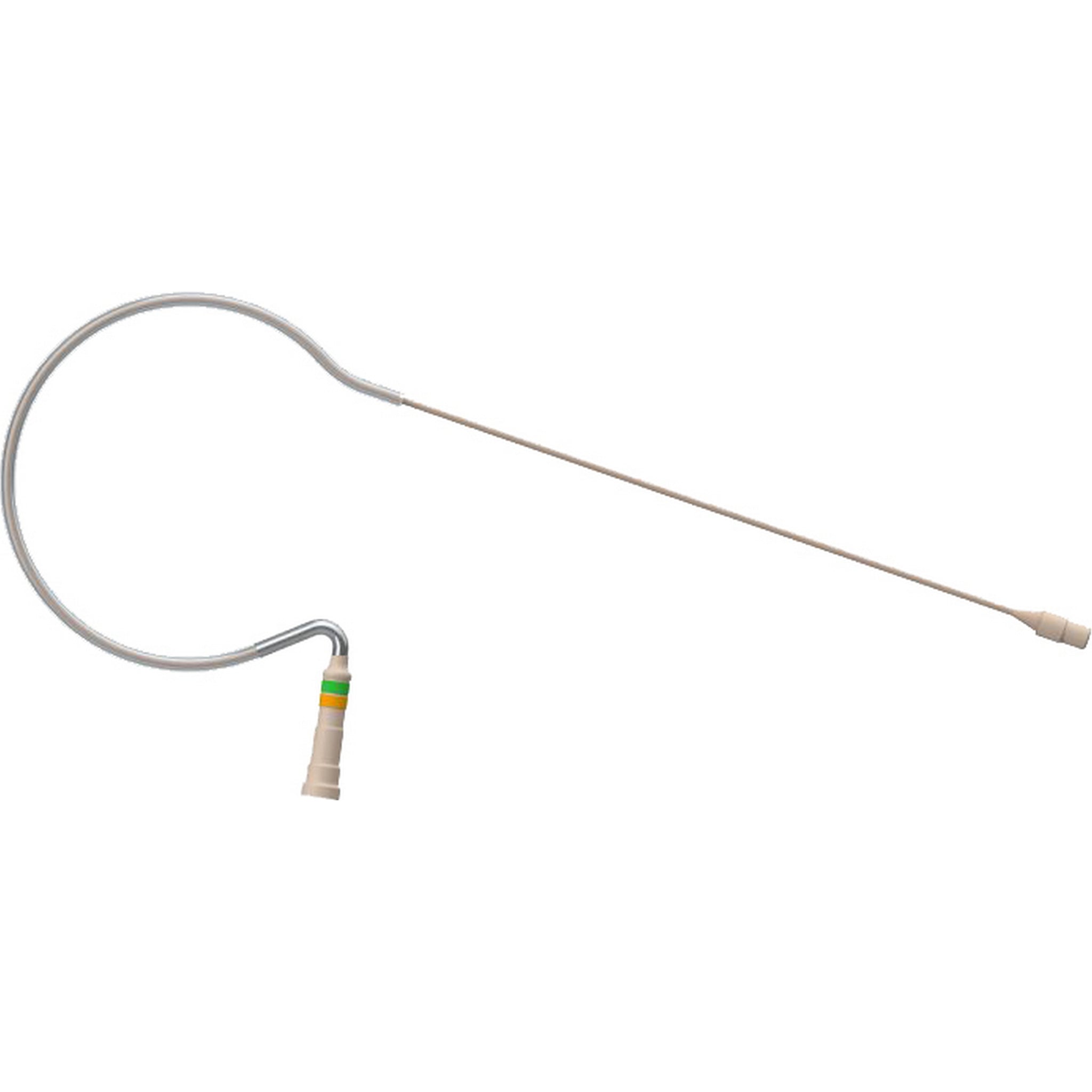

Countryman E6 Low-Profile Omnidirectional Earset Microphone with Screw-On Mini 4-Pin Connector for MIPRO With Credit Card

Compatibility:
MIPRO: ACT-707T (older), MT-103 (older), MT-303 (older), MT-801 (older), MT-808 (older)

Flexibility:
Classic/springy boom

Countryman’s top-selling microphone, the E6 Earset, is exceptionally discreet and provides clear audio quality while effectively reducing background noise and feedback. This ultra-compact electret condenser element is positioned near the mouth using a thin boom and comfortable earpad. It offers three sensitivity options, catering to various speaking needs and powerful vocals. Available in four colors, you can easily match the E6 to your skin tone for minimal visibility. The microphone element comes in an omnidirectional version, resistant to water and wind, or in a directional version, allowing for maximum isolation and feedback rejection. The boom is adjustable for a personalized fit and is offered in three styles: classic springy, flexible “i” style, or Flex style with a soft boom and springy ear section.

ALMOST INVISIBLE
Countryman Earsets are the tiniest, lightest, and most discreet head-worn microphones available.

READY FOR THE FUTURE
The E6’s detachable connector simplifies cable or transmitter replacements.

TOUGH AND DEPENDABLE
Featuring a durable stainless steel boom, the E6 can be bent and adjusted numerous times to suit different performers. It withstands makeup, sweat, and moisture with the supplied protective caps. The aramid-reinforced cable and braided RF shielding ensure longevity in challenging conditions.

EXTREMELY LIGHTWEIGHT
Weighing just 0.07 oz, the E6 Earset is incredibly lightweight, making it easy to forget you’re even wearing it.

Technical Specifications

Frequency Response
Omnidirectional: 20 Hz to 20 kHz
Directional: 30 Hz to 15 kHz
Operating Current
500 uA
Operating Voltage
1 to 2 Volts
Power Supply Voltage
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight
0.07 oz (2 g)
Sensitivity
Omnidirectional W5 (no band): 7.0 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal

Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Equivalent Acoustic Noise
W5: 24 dBA
W6: 29 dBA
W7: 39 dBA
Overload Sound Level
Omnidirectional W5: 120 dB SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL

Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Cable Length
5 Feet
Included
E6 Earset microphone
Detachable cable.
Black and White Single Tie Cable Clips
Omnidirectional Protective Caps (+0, +4, and +8 included with Omnidirectional Earsets)
Directional Protective Caps (Hypercardioid and Cardioid included with Directional Earsets)
Windscreen
Carrying Case
