Cloud Electronics PM-4SA Multizone Paging Microphones

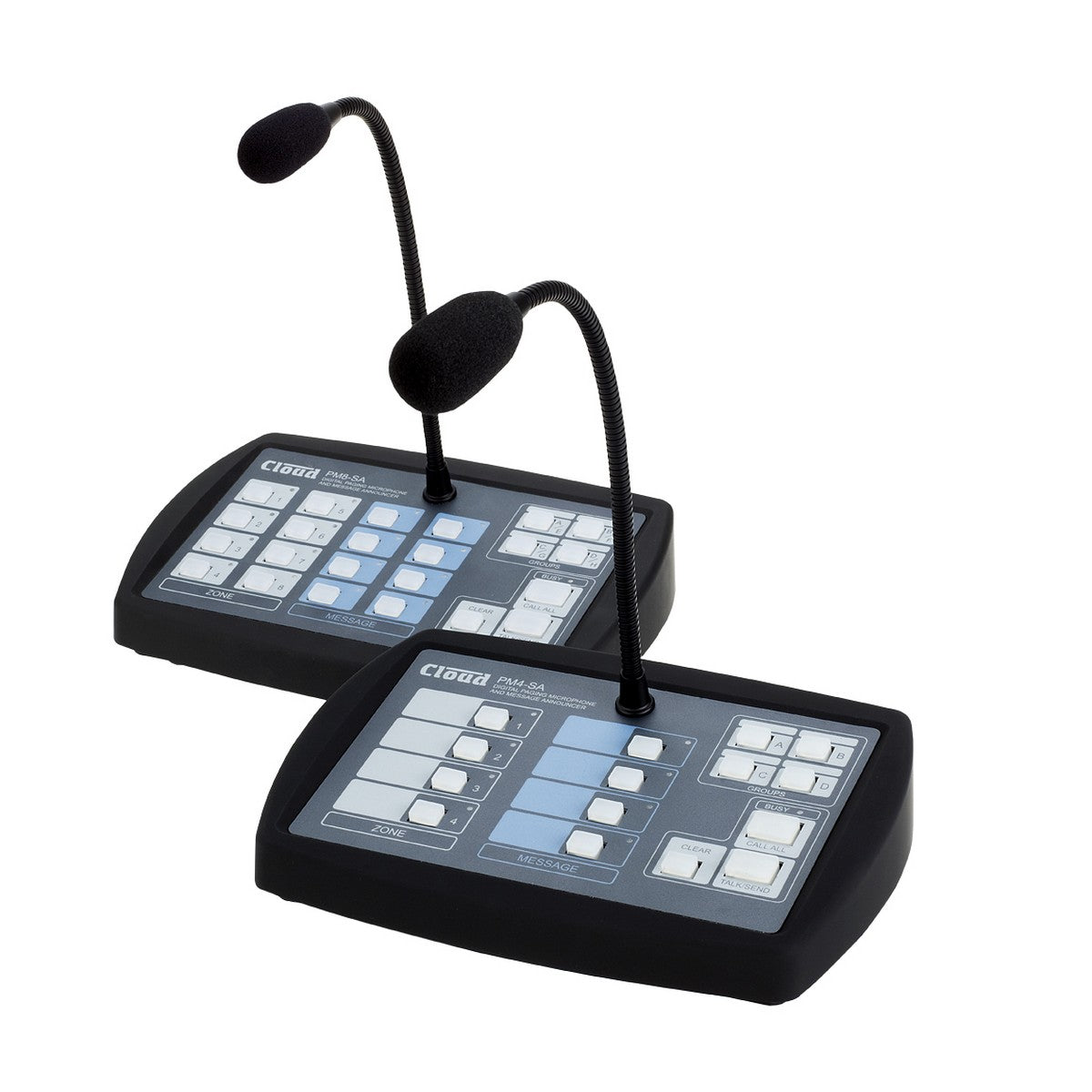

The Cloud PM4-SA / PM8-SA Mutizone Paging Microphones with ‘Spot Announcer’ capability offer reliable paging microphone performance with the added functionality of pre-recorded message announcement capability.

Up to four (PM4-SA) or eight (PM8-SA) pre-recorded messages, of any length, can be stored internally on a standard SD memory card, plugged into a dedicated card slot and accessed through the base plate of the PM-SA unit.

A ‘Group’ function allows an innavidual message and a number of zones to be grouped together which allows single-button playback of innavidual messages to a specified number of zones, handy for regular announcements. The ‘Group’ function can also be remotely triggered by remote timers, PIR’s, Camera’s and DVR’s using a NO/NC contact.

Messages for announcement and pre-announcement chime sound files (.WMA or .MP3) need to be prepared on a computer with a SD card slot, and then saved to the SD card. For operational and security reasons messages cannot be overwritten by the paging microphone.

An SD card is supplied with each PM-SA unit, with pre-announcement chime sound files already loaded.

Key Features

• Innavidual and Multiple Zone Selection by Mic or Message
• Remote Message Trigger Contacts (NO/NC Contacts) for PIRs, Timer, DVR/Cameras
• User Definable .WMA & .MP3 Recordable Message – any length
• Definable Zone Groups with Group Selection
• Pre-Announcement Chime (recordable on SD Card)
• TALK & CALL ALL Buttons
• BUSY LED
• Configurable 2-Layer Announcement Priority
• Auto Zone Reset after Announcement
• Zone Disable Function

Technical Specifications

Capsule Type: Condenser
Polar Pattern: Cardioid
Gooseneck Length: 300mm (standard); 140mm (alternative Part No. M1100166)
Number of Zones: 4 or 8
Number of Chimes: 4 or 8 (derived from SD card); internal speaker
Digital: Cloud Digital Paging Interface (RJ45)
Analogue: Zone Access Output (Short to Ground), Audio Output
Number of Messages: 4 or 8; internal speaker
Card Format: SD/SDHC
File System: FAT16 or FAT32
File Types: MP3 or WMA
Voltage Range: 9 – 17VAC, 12 -24VDC
Dimensions: 245 x 65 x 170mm
Weight: 1.2 kg
