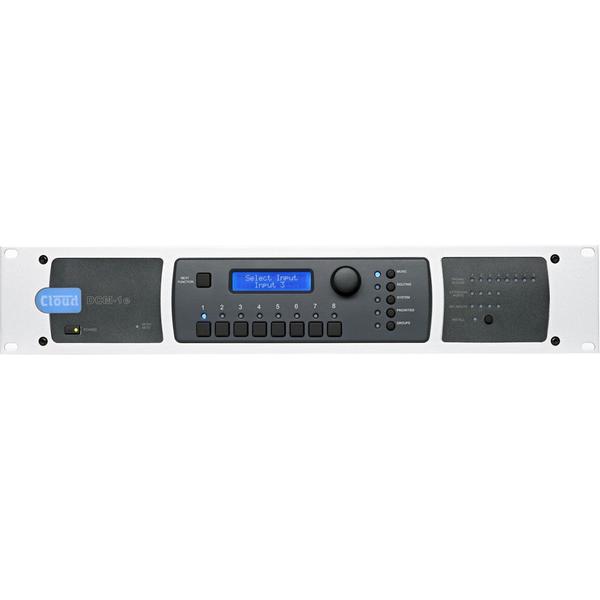

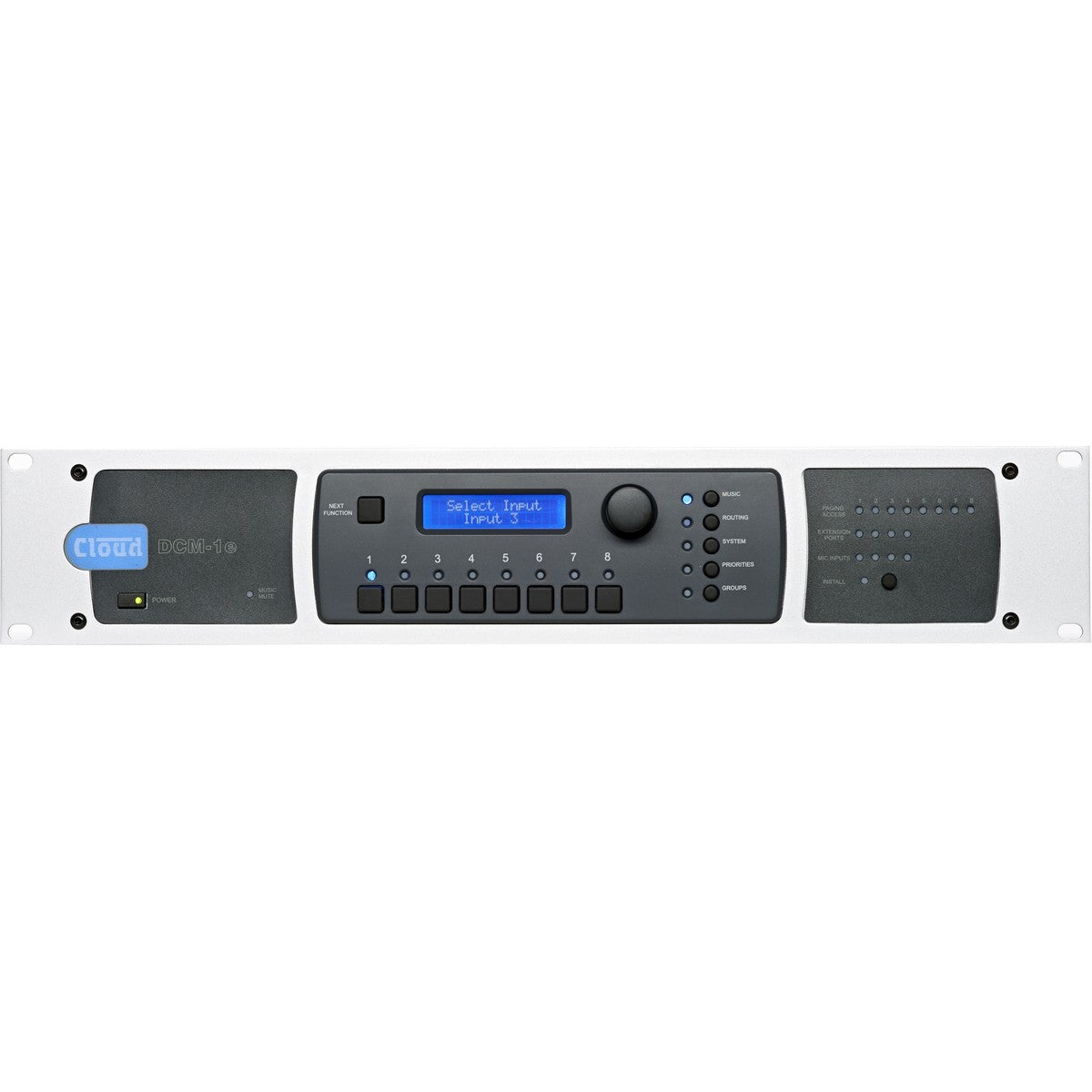

Cloud Electronics DCM1e Ethernet Digital Control Zone Mixer

The DCM1e is a new Ethernet version of the popular DCM1 Digital Control Zone Mixer. The addition of an ethernet port on the rear panel of the new DCM1e allows its own on-board web-server to be connected via an RJ-45 socket to an independent or existing switch or router. This feature means the new DCM1e can be configured and controlled remotely by any mobile device or PC connected to the same network.

Using the web browser of any mobile device Users have limited installer defined controls via simple and intuitive interface pages. Power Users are provided with additional installer defined controls, whilst Installers have administrator status via a password protected Configuration Options screen.

Multiple devices can connect and operate the DCM-1e concurrently, providing complete flexibility and control for up to eight separate zones, if required.

Key Features

• 8 stereo line inputs (1 balanced), with input level trims (via menu system)
• 8 balanced line outputs (2 stereo + 6 mono)
• Any source may be routed to any zone at any level
• 4 Extension Ports for optional remote line input modules (balanced or unbalanced), using Cat 5 UTP cable
• 4 Mic Inputs for optional remote mic input modules, using Cat 5 UTP cable
• External inputs (mic or line) may be routed to any zone
• RJ45 interface for Cloud PM Series digital paging microphones
• Separate analogue paging mic input with standard short-to-ground zone selection
• Paging to all zones with fully programmable override logic
• Supports up to 100 CDR-1 Remote Controls (optional), in any wiring configuration, using Cat 5 UTP cable
• Remote control of source, level, EQ and group enable via CDR-1 plates
• 2 x 16 character LCD dot-matrix display (both DCM1/DCM1e and CDR-1)
• Four definable zone groups; groups have same selection options as zones
• Any line input may have priority in any zone; configurable per-zone
• Configurable source selection restriction, per-zone
• Key-protected Installer mode (both DCM1/DCM1e and CDR-1) prevents user access to configuration menus
• Inputs, zones and groups can be named
• RS232 interface for control by third-party control systems
• Paging access port may be reconfigured as eight GPIO ports, under RS-232 or Ethernet (DCM1e only) control
• Front-panel LEDs confirm remote access
• Optional per-zone EQ cards to suit a range of popular installation loudspeakers
• Software Configuration Tool available (free download) to permit easy configuration from a computer
• Self-contained – can be fully configured and controlled without a computer if preferred
• Multiple mixers may be cascaded to create larger systems
• External Music Mute input for interfacing with emergency systems
• Any input (mic or line) may be assigned as Emergency Input, overriding Music Mute
• 2U 19 inch rack-mounting unit
• Ethernet port with internal web server
• Control over main user functions from web-capable devices
• Extended range of password-protected functions
• Ethernet to RS232 bridge may be used to send commands to third-party equipment

Technical Specifications

Frequency Response
20 Hz – 20k Hz ±1 dB
Distortion
Sensitivity
195 mV (-12 dBu) to 3.1 V (+12 dBu)
Input Gain Control
24 dB range
Input Impedance
47k ohm
Headroom
>+10 dB
Noise
-90 dB A weighted (0 dB gain)
Equalization
HF: ±14 dB/10k Hz
MID: ±14 dB/1200 Hz
LF: ±14 dB/50 Hz

Frequency Response
100 Hz / -3 dB(filter) to 20 kHz
±0.5dB
Distortion
<0.05% 20 Hz-20k Hz
Gain Range
10 dB – 50 dB
Input Impedance
>2k ohm (balanced)
Phantom Power
+12 V (PCB jumper for on/off)
Headroom
>20 dB
Noise
-120 dB EIN 22 Hz – 22k Hz (150 ohm)
Equalization
HF: ±10 dB/5k Hz
LF: ±10 dB/100 Hz

Balanced Zone Outputs
775 mV (0 dBu)
Minimum Load Impedance
600 ohm
Maximum Output Level
+10 dBu (2.6 V)

External Supply Input
100 V-240 V AC; 47-63 Hz; 1.35 A
Power Supply
+12 V, 3 A; -12 V 1 A

Dimensions (w x h x d)
482.6 mm x 88 mm (2U) x 170 mm
19 x 3 1/5 x 6 3/5 inches
Dimensions (packed)
570 mm x 270 mm x 220 mm
22 x 11 x 9 inches
Weight
3.12 kg (7 lbs) net
4 kg (8.8 lbs) packed
