City Theatrical 5902 Multiverse Node 900MHz/2.4GHz Wireless DMX Transceiver, NA Only

Each City Theatrical Multiverse Node 5902 is a transceiver. As a single universe transmitter, it functions in a similar plug and play manner to the Multiverse SHoW Baby and legacy SHoW DMX SHoW Baby products, and also has a full user interface, with four buttons and a backlit LCD display. As a receiver, the Multiverse Node is the primary single universe standalone receiver in the Multiverse system, and can be part of a larger multi-universe setup.

Multiverse Node models include:

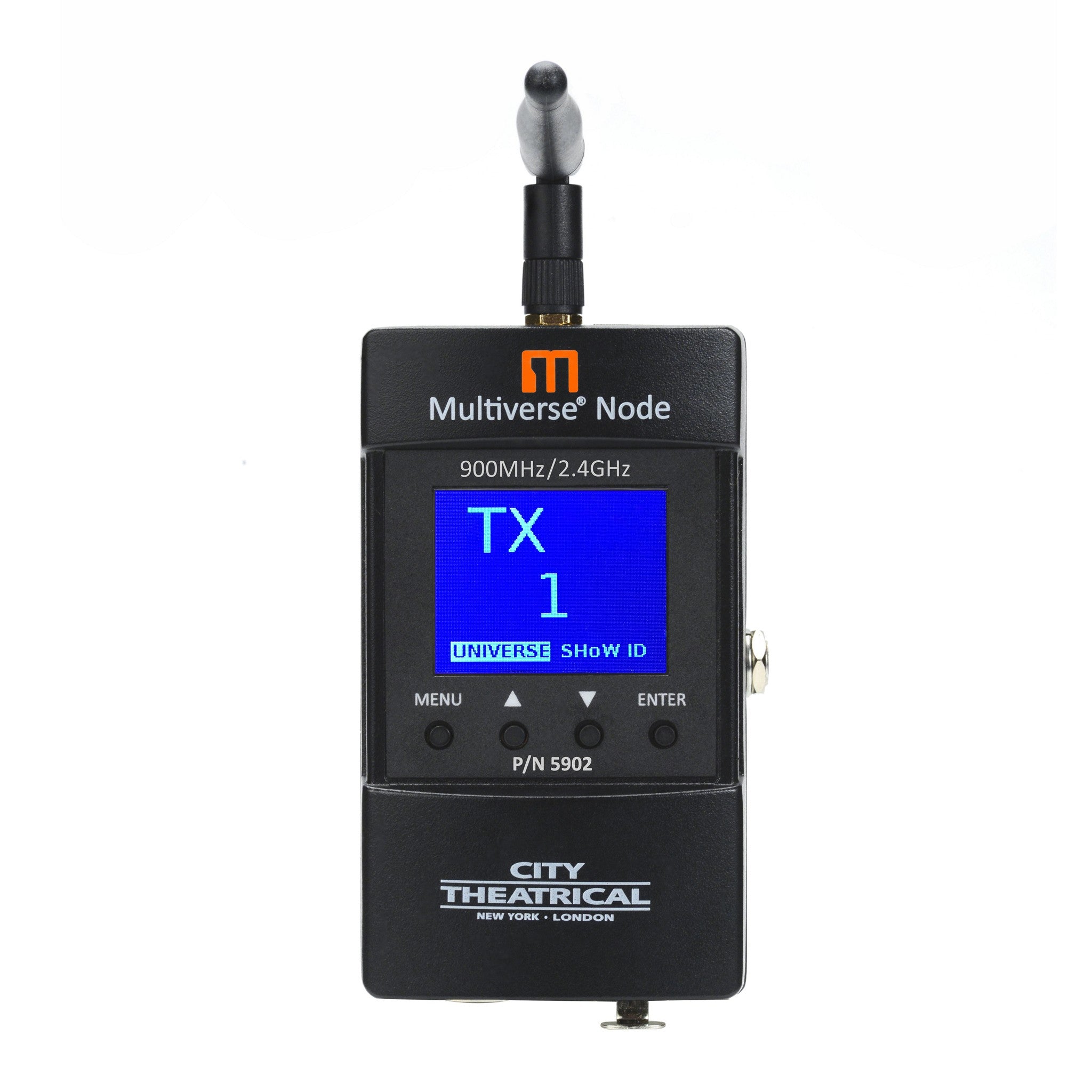

The Multiverse Node 900MHz/2.4GHz (P/N 5902), which is licensed for use in North America only. It contains two built-in radios, 2.4GHz and 900MHz, which allow the user to select which single universe to transmit, and which radio band to use via the SHoW ID. This model is shown in the diagram below.

The Multiverse Node 2.4GHz (P/N 5903) contains a 2.4GHz radio and can be used worldwide.

Key Features

• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
• Compatible with all Multiverse and SHoW DMX Neo products
• User can select a single universe to receive
• A very simple user interface to set SHoW ID and universe
• RDM proxy and responder functions
• DMX 5-pin in and out/thru ports
• Rugged cast aluminum enclosure
• Antenna: Omni Broadband 900MHz/2.4GHz, 2dBi/4dBi (P/N 5902); Omni Broadband 2.4GHz, 4dBI (P/N 5903)
• Auto-selection of transmit or receive mode
• Firmware updateable via USB port
• CL2 power supply with locking connector
• Built-in auto select DMX512 termination
• Selectable display timeout and brightness level
• A hanging bracket for hanging from pipe or truss

Technical Specifications

Physical Specifications
Length
4.05” (102.8mm)
Width
2.36” (60mm)
Height
1.44” (36.47mm)
Weight
0.4Lbs (0.4kg)
Construction
Die Cast Aluminum, Black
Frequency Range
2400 – 2480 MHz; 902 – 928 MHz
Connection Specifications
Locking DC Jack, 5.5mm x 2.1mm barrel, center positive, 12.1mm mating depth (this power supply connector is not compatible with SHoW Baby)
5-Pin XLR DMX512 in and out/thru ports
RP-SMA female antenna connector
USB Type-A port
Functionality
User Interface
4 Button/Backlit LCD display
RDM Features
RDM Proxy, RDM Responder
Power
Input Power
5-30VDC, 0.6W
Max Draw
45mA max draw at 12V
AC Adapter Voltage
100VAC to 240VAC 50/60Hz
Radio Technology
Latency
4 ms average
RF Sensitivity
-95dBm
Loss of Data Behavior
Output stops
Broadcast Power
3.2mW, 10mW, 32mW, 100mW EIRP
Broadcast Modes
Adaptive, Full, Low, Mid, High, Max
DMX Burst Modes
Auto Dynamic
Show IDs
307 (North America)
Other Product Information
Use Environment
Indoor
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature
-40° to 185°F (-40° to 85°C)
IP Rating
IP50
Compliance
FCC, IC
