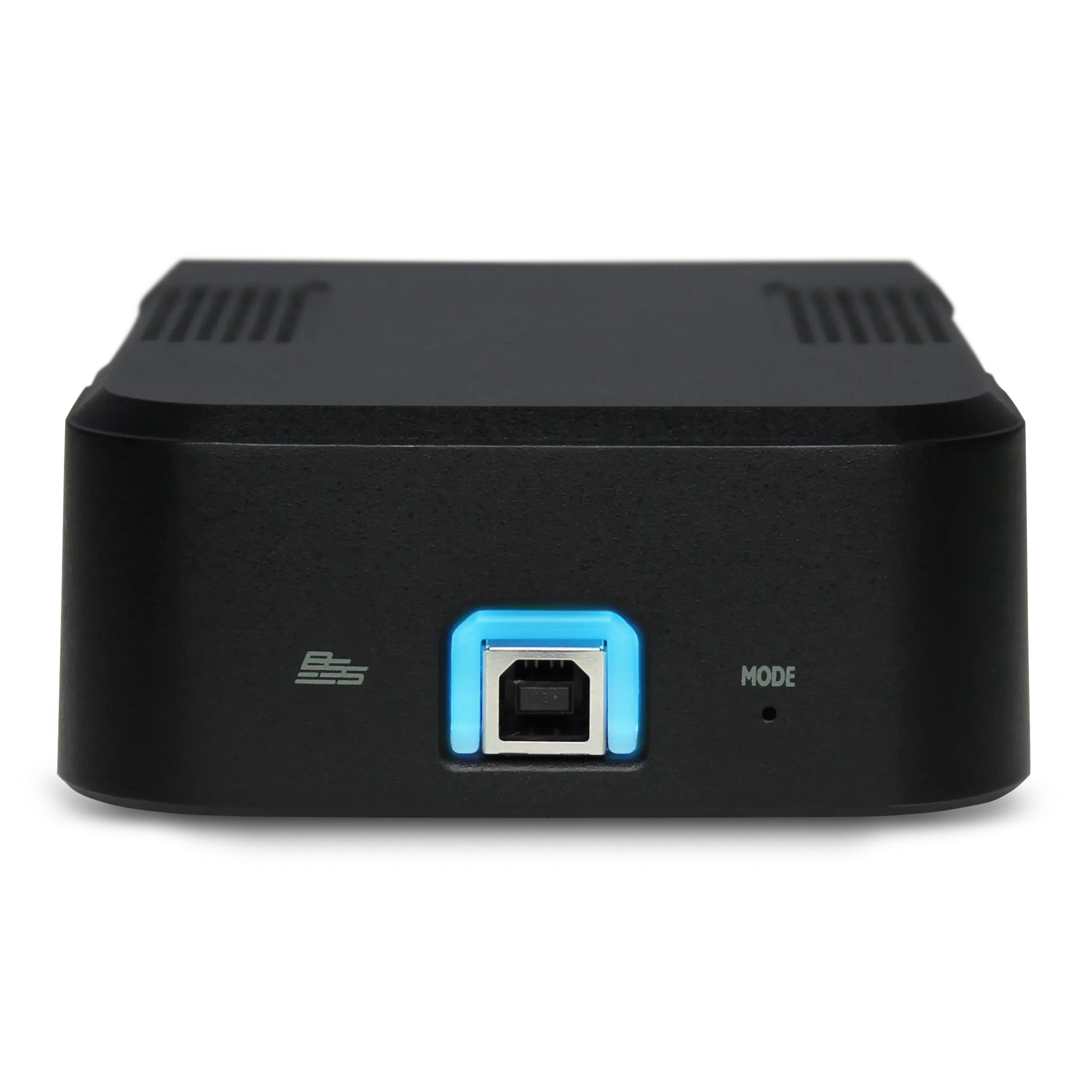

BSS BLU-USB USB Audio to BLU Link Interface

The BLU-USB allows audio from a PC/Mac to be directly placed onto the BLU link audio bus, enabling easy implementation of softphones for conferencing systems or audio playback directly to/from a computer.

Key Features

• Simple integration of computers to Harman audio systems
• Digital conversion directly to BLU link
• Eliminates USB Distance Limitations
• Multiple mounting options

Technical Specifications

No driver installed (Class 1)
2 x 2 plug ‘n’ play operation
48kHz
Driver installed (Class 2)
8 x 8 operation
48/96kHz
COMPUTER AUDIO PLAYBACK
Supported Sound File Sample Rates
8kHz-192kHz
Supported Sound File Bit Depths
16-bit, 24-bit (24-bit recommended for best performance)
Supported Drivers
Windows: WDM, ASIO Mac: Core Audio
BLU LINK BUS
Supported Sample Rates
48kHz, 96kHz (compatible with Class 2 USB mode only)
Connectors
2 x RJ45 Ethernet connector
Maximum Cable Length
100m/328ft on Category 5e cable between devices
Pass-Through Latency
4/Fs <0.08ms at 48kHz, 0.04ms at 96kHz>
Maximum Nodes
60
POWER/TEMPERATURE
Mains Voltage
100-240V AC, 50/60Hz
Power Consumption
4 Watts
Operating Temperature Range
5 <41> to 35 <95> degrees C
PHYSICAL
Weight
1 lb.
0.45 kg
Dimensions
3.85″ (W) x 1.57″ (H) x 5.67″ (D)
97.8 mm (W) x 39.9 mm (H) x 144.0 mm (D)
