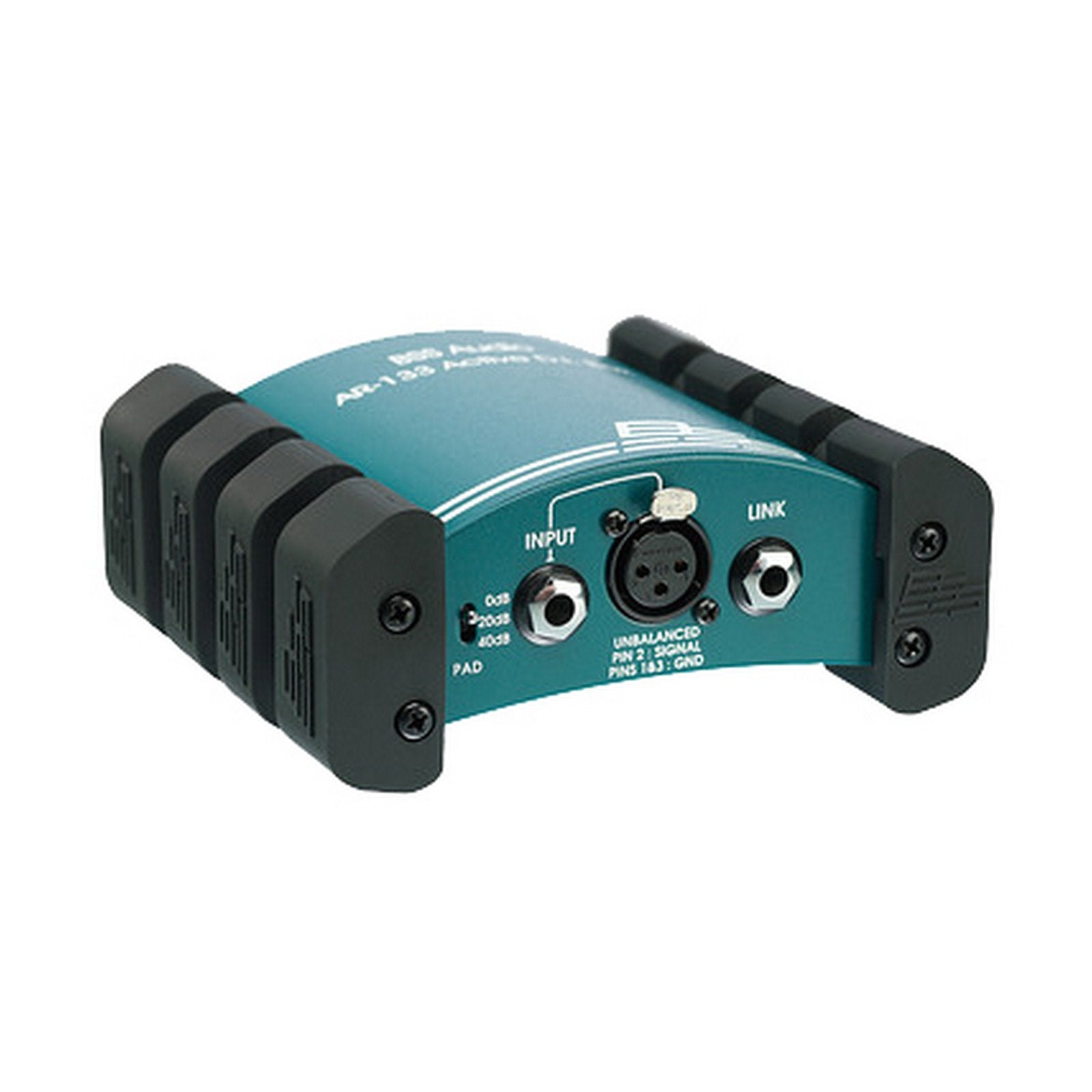

BSS AR-133 Active Direct Injection Box

The unit includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.

The AR-133 uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars.

Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources.

Key Features

• The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look
• The arched case allows cables to run back underneath the unit from the end for neat cable management
• The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look
• Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs
• Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems

Technical Specifications

Input Impedance
1 mOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB)
Max Input
+9dBu (pad at 0dB), +29dBu (pad at -20dB), +49dBu (pad at -40dB)
Input Connectors
Two Parallel 1/4″ jack connectors (Tip Hot +ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot +ve, Pin 1 & 3 ground)
Output
Transformer Balanced
Max Output
+8dBu into 600 Ohms or greater
Output Connectors
XLR3-32 or equivalent
THD
< 0.005% at 1khz, 0dbu output
Noise
< -105db unweighted, 22hz-22khz, rms*
Frequency Response
30Hz to 20kHz, +0dB/-1dB
Main/Standby battery
9 volt PP3 type, preferably alkaline
Power Consumption
on phantom: less than 7.5mA, on battery: less than 2mA.
Phantom Power
+20 volts DC to +48 volts DC
Unit Weight
650 gms, excluding batteries
Dimensions
59 mm x 124 mm x 143 mm (2.3″ x 4.9″ x 5.6″)
