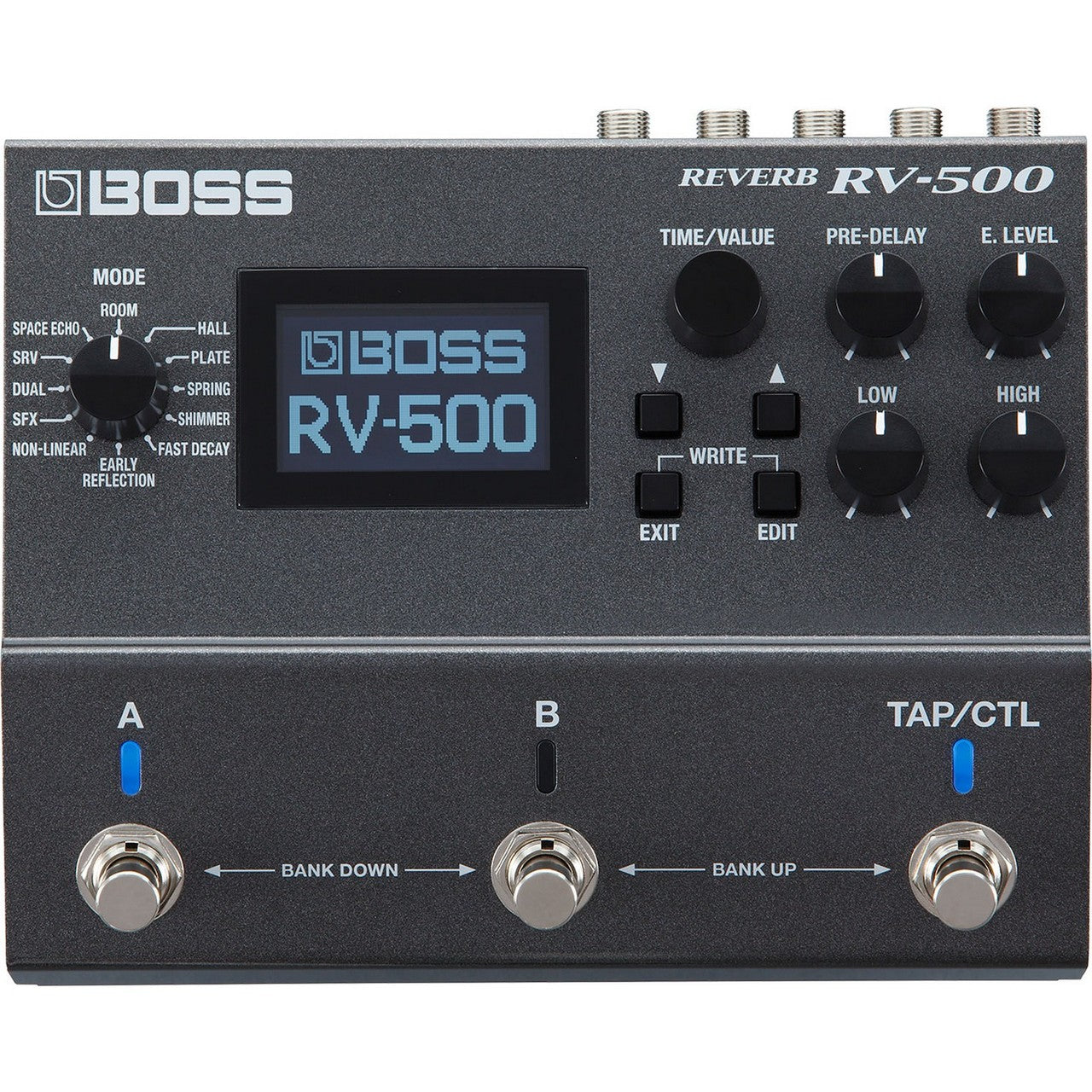

Boss RV-500 Reverb Guitar Effects Processor Pedal

Journey to new dimensions of time and space with the RV-500, the most powerful and versatile reverb processor BOSS has ever produced. This multifaceted creation machine features class-defying 32-bit AD/DA along with 32-bit/96 kHz floating point processing and immense programmability, putting pro-level studio reverb and more at your feet.

Key Features

• Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• 12 modes with 21 reverb types, all with deep editing parameters
• Includes a wide range of reverb types from standard to advanced, plus Roland classics such as the SRV-2000 Reverb and RE-201 Space Echo
• A/B Simul mode allows you to use two reverb patches at once
• Selectable carryover function allows reverb tails to continue with patch change or effect bypass
• Powerful DSP provides independent digital delay with modulation along with each reverb patch
• Graphic LCD and intensive real-time control options
• 297 onboard patch memories and hands-on controls
• Selectable buffered-bypass or true-bypass operation
• MIDI I/O for interfacing with MIDI control devices
• USB-MIDI for connecting to the RV-500 Editor/Librarian or a DAW (to be available in early July 2017)
• Runs on four AA-size batteries or PSA-series AC adapter

Technical Specifications

Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Modes
12 modes
ROOM
HALL
PLATE
SPRING
SHIMMER
FAST DECAY
EARLY REFLECTION
NON-LINEAR
SFX
DUAL
SRV
SPACE ECHO
Memory
198 (99 banks x 2 ), 297 (99 banks x 3 )
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +8 dBu
Input Impedance
INPUT A/MONO, B: 1 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +8 dBu
Output Impedance
OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 20 k ohms or greater
Bypass
Buffered bypass or True bypass (with relays)
Controls
A switch, B switch, TAP/CTL switch
DOWN button, UP button, EXIT button, EDIT button
MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob
Display
Graphic LCD (128 x 64 dots, backlit LCD)
Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TSR phone type
USB COMPUTER port: USB type B
MIDI (IN, OUT) connectors
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
Current Draw
225 mA
Expected battery life under continuous use
Alkaline: Approx. 4.5 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner’s manual
Leaflet “USING THE UNIt’sAFELY”
Alkaline battery (AA, LR6) x 4
SIZE AND WEIGHT
Width
170 mm
6-3/4 inches
Depth
138 mm
5-7/16 inches
Height
62 mm
2-1/2 inches
Weight (including battery)
1.0 kg
2 lbs 4 oz
