Boss BOX-40 Compact Pedal 40th Anniversary Box Set

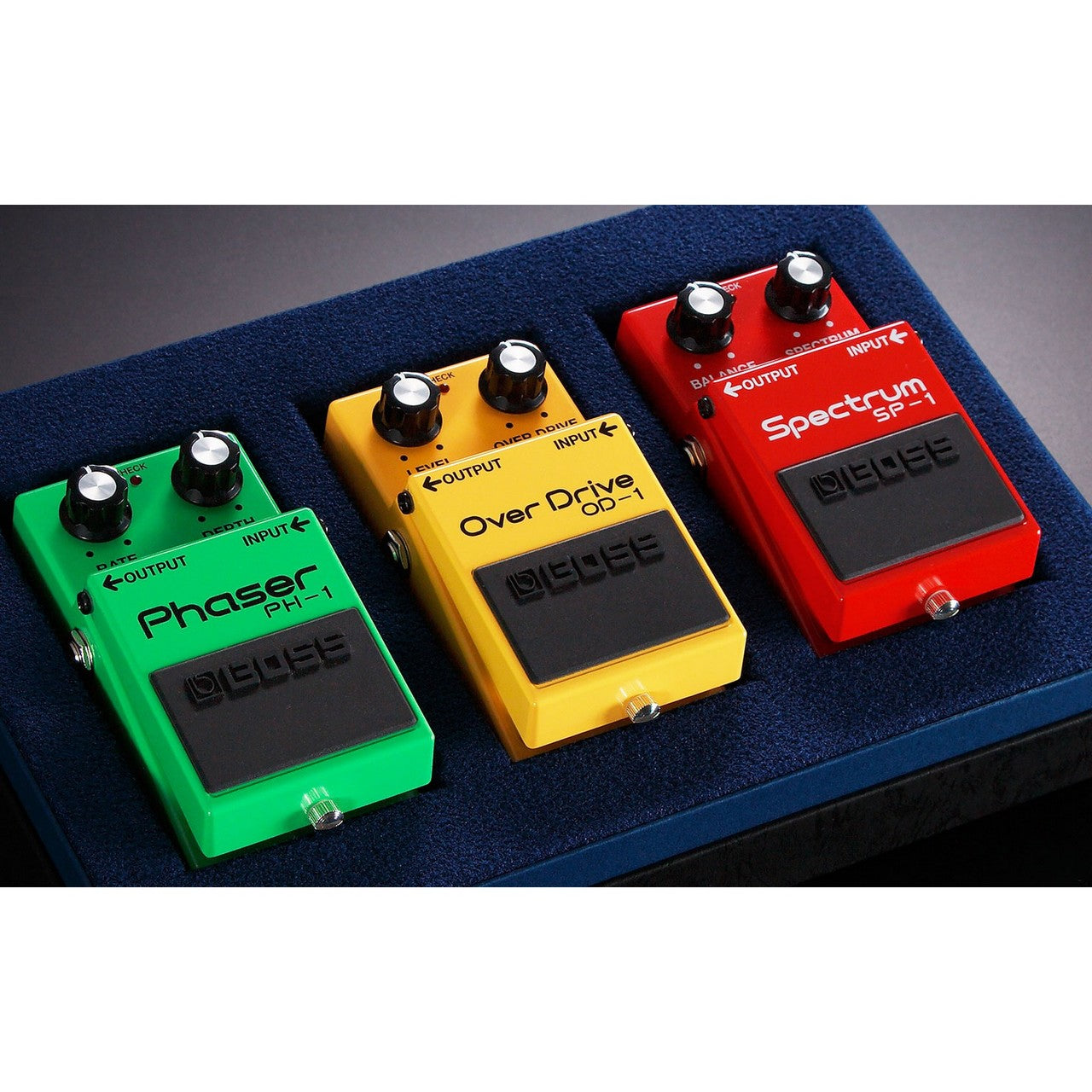

In celebration of four decades of compact pedal innovation and the support of millions of worldwide users, BOSS is pleased to offer the Compact Pedal 40th Anniversary Box Set. This special limited-edition commemorative package features one-time-only reissues of the OD-1 Over Drive, PH-1 Phaser, and SP-1 Spectrum, the original three BOSS compact pedal models. Only 1500 box sets will be produced, and each comes in a deluxe presentation box with the BOSS 40th Anniversary logo and a numbered message card.

Key Features

• Commemorative set with rare reissues of the first three BOSS compact pedal models
• Includes the OD-1 Over Drive, PH-1 Phaser, and SP-1 Spectrum
• Manufactured in Japan with wiring and circuit adjustments performed by hand, just like the original pedals
• Carefully selected components ensure faithful reproduction of the original pedals’ sound and response
• Subtle modern enhancements include PSA-compatible power section, reinforced battery snap, and LED on/off status
• Includes presentation box with a numbered message card
• Limited worldwide production of 1500 sets

Technical Specifications

Set Configuration
BOSS OD-1
BOSS PH-1
BOSS SP-1

OD-1: OVER DRIVE
Nominal Input Level
-20 dBu
Input Impedance
220 k ohms
Nominal Output Level
-20 dBu
Output Impedance
470 ohms
Recommended Load Impedance
600 ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
LEVEL knob
OVER DRIVE knob
Indicator
CHECK indicator (serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
10 mA
Expected battery life under continuous use
Alkaline: Approx. 131 hours
Carbon: Approx. 82 hours
* These figures will vary depending on the actual conditions of use.

PH-1: PHASER
Nominal Input Level
-20 dBu
Input Impedance
220 k ohms
Nominal Output Level
-20 dBu
Output Impedance
470 ohms
Recommended Load Impedance
600 ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
RATE knob
DEPTH knob
Indicator
CHECK indicator (serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
15 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 53 hours
Carbon: Approx. 27 hours
* These figures will vary depending on the actual conditions of use.

SP-1: SPECTRUM
Nominal Input Level
-20 dBu
Input Impedance
470 k ohms
Nominal Output Level
-20 dBu
Output Impedance
470 ohms
Recommended Load Impedance
600 ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
BALANCE knob
SPECTRUM knob
Indicator
CHECK indicator (serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
10 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 139 hours
Carbon: Approx. 85 hours
* These figures will vary depending on the actual conditions of use.

Accessories
Owner’s manual
Alkaline battery (9 V, 6LR61)
Message card Options (sold separately) AC adaptor: PSA series
Size and Weight
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 400 g, 15 oz
