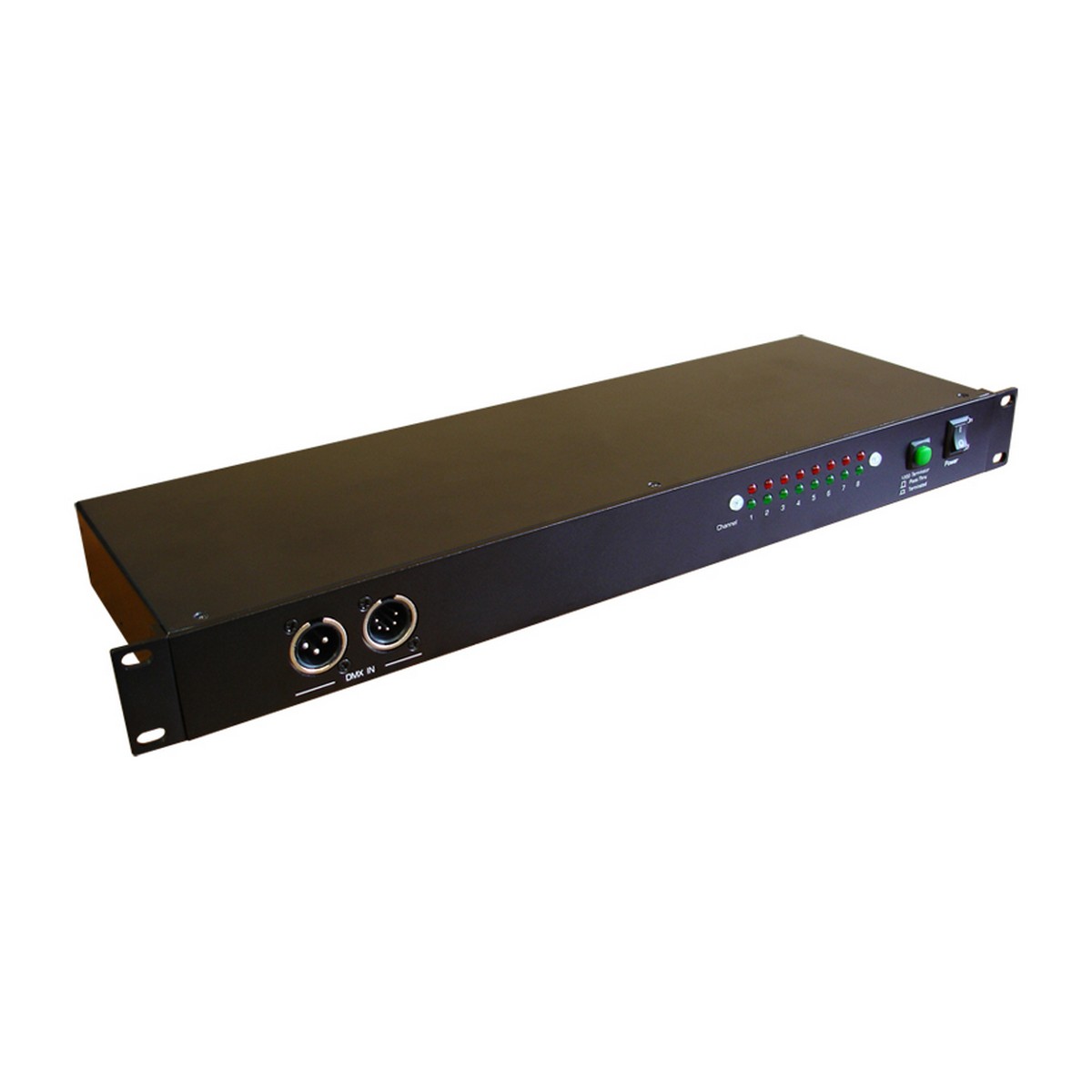

Blizzard Lighting Pipeline 19″ Rack Mountable DMX-512 Splitter

Blizzard Lighting is proud to introduce the Pipeline- 8-way DMX distributor. The unit has two inputs and eight outputs. It features absolute electrical isolation between input and outputs, and between all of the outputs. There are two types of DMX connectors (3-pin) for each innavidual channel. Each DMX output features an independent driver. With the Pipeline you can run up to 32 units per one output channel.

Key Features

• Fully compliant to DMX-512 (1990)
• 3pin & 5pin DMX Input and DMX Thru
• 100% electrical isolation between in/output
• 100% electronic isolation between output/output
• Signal & power LED indicator for each output
• Termintor resistor switch for end of a DMX chain
• Power input via IEC connector on rear panel
• Removable rack wings for Rack mount or wall mount
• Anodized aluminum front panel

Technical Specifications

Power Input
AC120V 50Hz/60Hz
Consumption
10W
Dimensions
482 mm x 130 mm x 44 mm
Weight
5.8 lbs (2.6 kg)
