Blizzard Lighting Komply AMP 3-Channel RGB Amplifier Free Shipping For Cheap

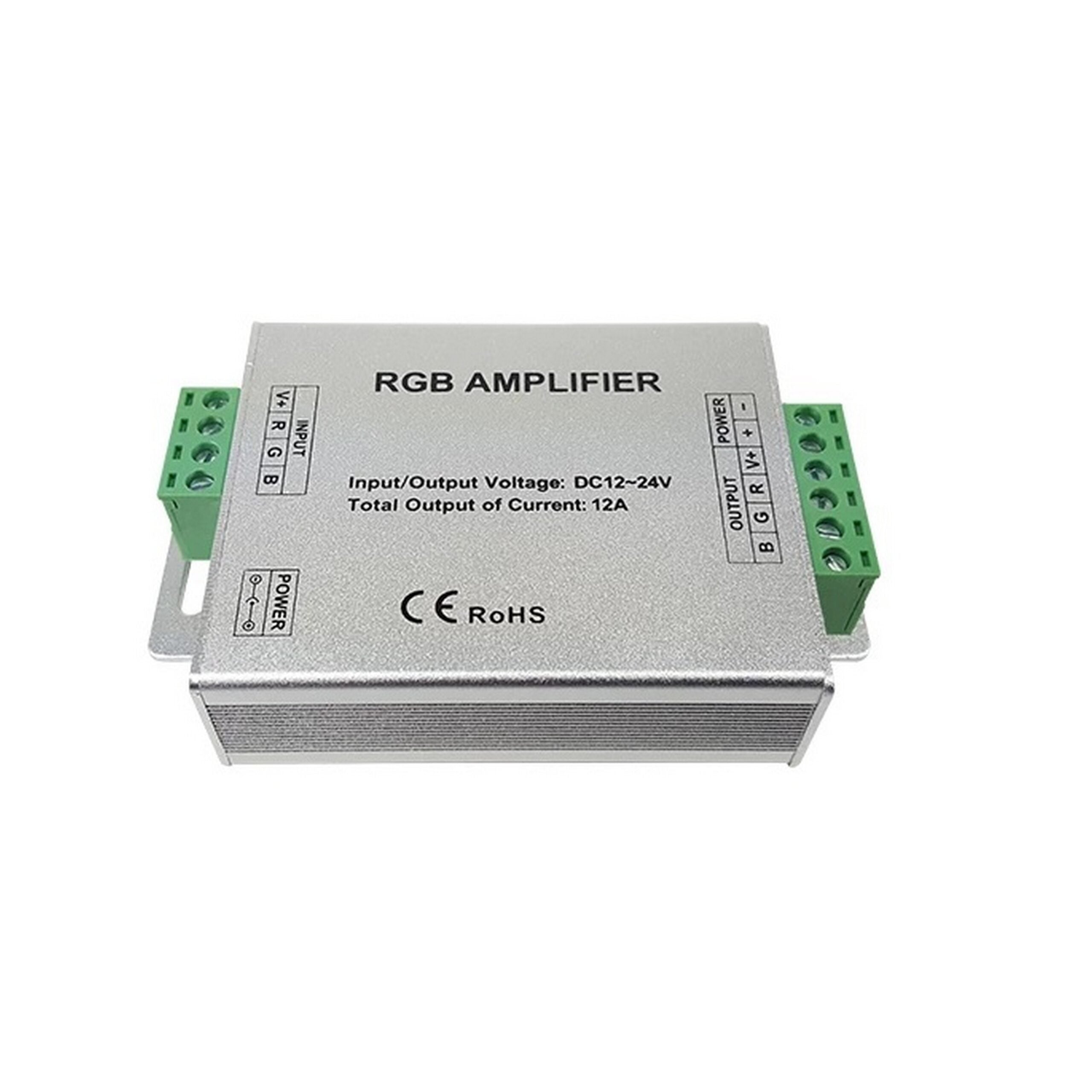

Blizzard Lighting Komply AMP 3-Channel RGB Amplifier

If the total length of your Komply LED ribbon project has maxed out the power of your LED driver, the Komply Amp will give you the boost you need. It is designed to receive and amplify the PWM (pulse width modulation), allowing the number of connected LED strips to more than double.

Key Features

• Ideal for use with RGB LED strips
• 144W output, 3 channels
• 3 signal inputs and output connections: red, green, blue + common anode (DC+)
• Increase the number of LEDs you can drive by adding additional RGB amplifiers
• Connection: common anode
• 12 volt DC input is required

Technical Specifications

12V RGB booster/amplifier
Receives and amplifies PWM signals
Easy to set up
Weight & Dimensions
Dimensions
4.2 x 2.3 x 1 inch (105 x 65 x 25mm)
Weight
145g
Power & Current
Supply voltage
DC12V
Output current
<4A (each channel)
Static power consumption
<1W
Output power
12V: <144W
Thermal
Working temperature
-20 to 60C
