Biamp H20 Weatherproof Compression Horn Loudspeaker

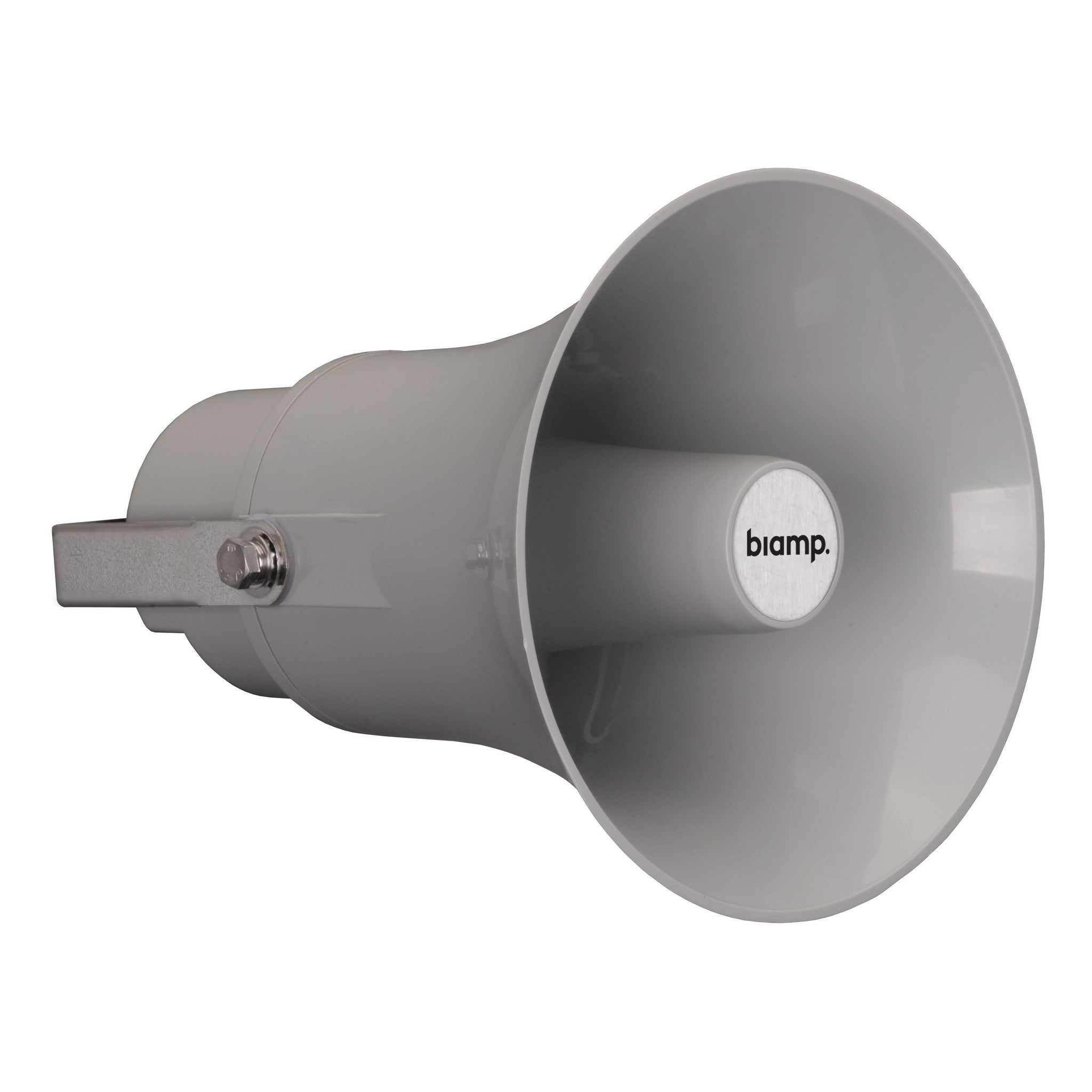

The H20 is a powerful weatherproof industrial horn loudspeaker with compression driver. It offers high sound pressure, which makes this loudspeaker ideally suited for speech and the reproduction of alarm signals in a noisy environment. The H20 is ideal for long-distance and outdoor use.

The stainless-steel brackets and rust-free bolts and screws make this horn suited for indoor and outdoor use. The bracket also makes it possible to rotate the speaker over a range of more than 180 degrees. Because this horn speaker is constructed in high impact ABS, it can withstand even the harshest of elements.

The H20 loudspeaker is equipped with a high quality 70/100-volt transformer with several power taps and can also be used in 8ohm systems. Our technology avoids any overload of your amplifier by controlling the impedance with the unique IMC protection device inside.

Key Features

• High output voice paging and signal horn
• Rugged construction for industrial applications
• IP66 Indoor/Outdoor ready
• Permanently attached and water-sealed input wire
• Externally accessible 6-position tap switch

Technical Specifications

Operating Mode
Passive with selectable low-impedance or 70 V/100 V operation, Single-amplified with DSP
Operating Environment
Indoor or Outdoor Direct Exposure
Operating Range (-10 dB)
490 Hz to 6.7 kHz
Nominal Beamwidth (H x V)
85 x 85 Degrees
Transducer
MF: 1 x 1.4” (36 mm) voice coil compression driver
Sensitivity
107 dB (2.83 V)
107 dB (1 W, 8 Ω)
Nominal Continuous Power Handling
13 V (20 W, 8 Ω rated Impedance)
Transformer
70 V: 20 W, 10 W, 5 W, 2.5 W, 1.25 W
100 V: 20 W, 10 W, 5 W, 2.5 W
Protection
Internal DC-blocking capacitor
Required Accessories
425 Hz, 6 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers
20 W – 40 W, 8 Ω (13 V – 18 V)
PHYSICAL
Input Connection
2 x 0.3 mm2 conductor 1 m (39.3”) cable
Controls
Wattage / low impedance selector switch
Mounting Provisions
U-Bracket
Compliance
IEC 62368-1 certified
Environmental Rating
IP66 per IEC 60529
Dimensions H x W x D
200 x 200 x 230 mm
<7.88” x 7.88” x 9.06”>
Weight (with U-Bracket)
1.4 kg <3.15 lbs>
