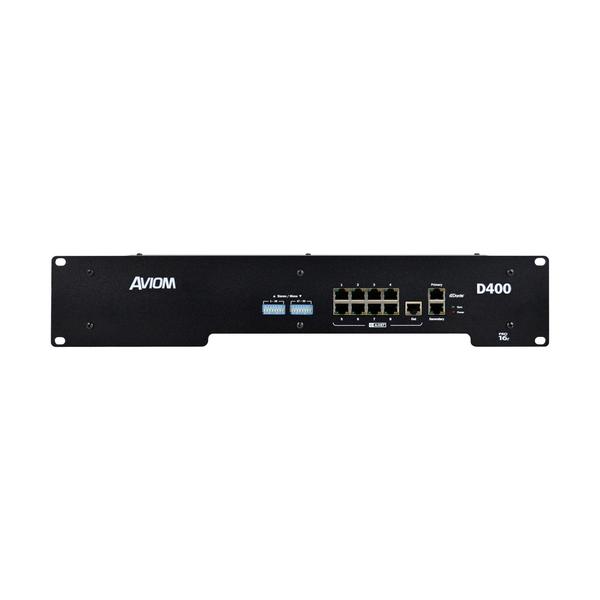

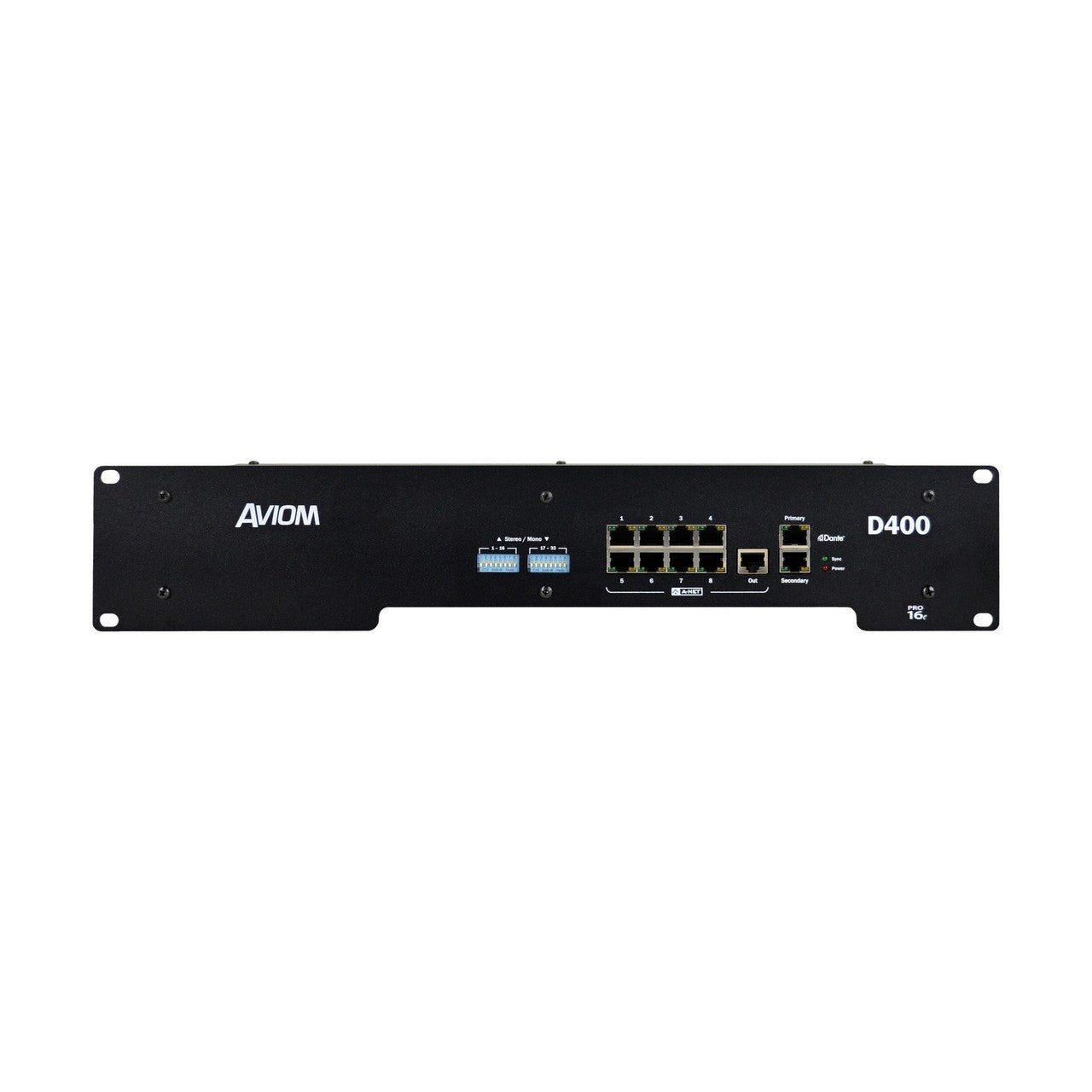

Aviom D400-Dante Distributor for Personal Mixers

The D400-Dante A-Net Distributor adds connectivity for a Dante digital audio network, allowing up to 32 channels to be sent directly from a Dante audio network to A320 and A360 Personal Mixers. Any 32 Dante channels may be selected from the Dante network using the Dante Controller software.

Key Features

• Direct connectivity to a Dante audio network
• Support for up to 32 Dante network channels
• Distributes power and audio to up to eight A320 and A360 Personal Mixers
• One unpowered Pro16e A-Net Out for thru connections
• Stereo Link DIP switches simplify stereo channel assignments

Technical Specifications

Dante Interface
32 channels
(44.1/48kHz Sample Rate only)
Dante Primary I/O
RJ45 connector
Dante Secondary I/O
RJ45 connector
Dante LEDs
Network Activity (green);
1GB Network Connection Active (yellow)
Static IP support
Yes
AES67 Support
Yes
Dimensions
19″ (482.6 mm) wide x 7.25″ (182 mm) deep; 2U, 3.5″ (88.9 mm) high
Weight
12.0 lbs (5.44 kg)
