Aviom A640 16 Channel Digital Monitor Mixer Low Cost Online

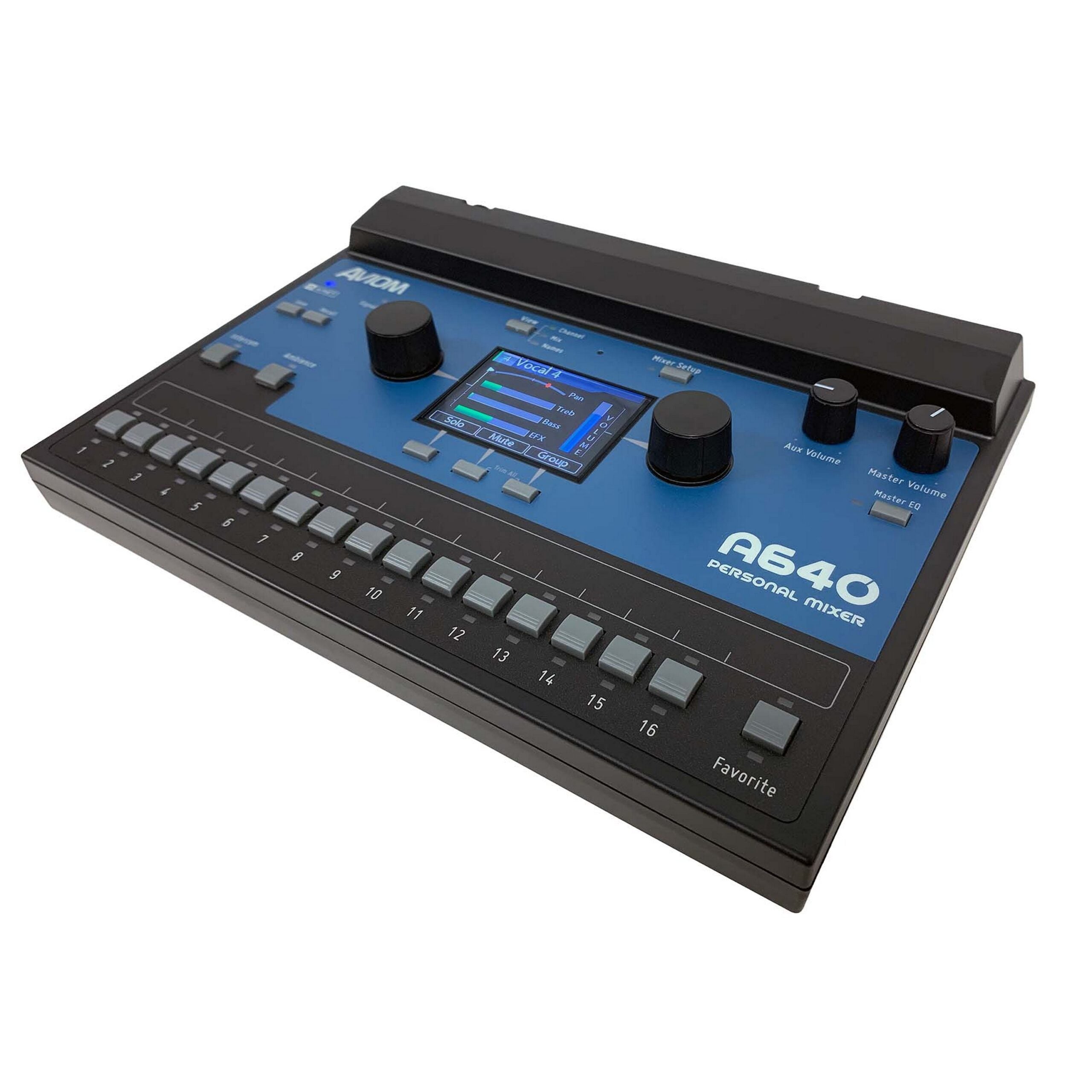

Aviom A640 16 Channel Digital Monitor Mixer

Aviom’s Personal Mixers are the worldwide industry-standard for personal mixing on stage and in the studio. The A640, Aviom’s new flagship personal mixer, brings an unparalleled level of control, performance, and fidelity to personal mixing that exemplifies Aviom’s core brand sensibilities. With more mix channels, powerful features, and an intuitive, streamlined user-interface, the A640 helps musicians hear better than ever before. It’s compatible with all existing Aviom systems using Dante networking, digital console cards, or analog inputs, and can be used simultaneously with the A360, A320 and/or A-16II Personal Mixers.

Key Features

• Intuitive user interface featuring high-res color multi-mix-view display
• Customizable channel selection from up to 64 network channels
• 36-channel mix engine for up to 18 mono or stereo sources
• Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance
• One-Touch Ambience using network audio or the internal mic
• Intercom for communicating with other A640 users
• Favorite Channel holds each musician’s most important channel
• USB for easy archiving and loading custom mixer configurations
• 1/4” and 1/8” stereo mix out plus XLR mono Aux mix out
• Support for Network Mix Back (requires a D800)

Technical Specifications

Audio Output
1/4” TRS stereo, headphone or line level;
1/8” TRS stereo, headphone or line level;
XLR balanced mono, line level
Stereo Mix Outputs, Headphone/Line
Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
Mono Mix Output
Pin 2: Hot, Pin 3: Cold; Pin 1: Ground
A-Net
1 A-Net In, locking RJ45 connector;
Supports
Power Over A-Net
D/A Conversion
44.1/48kHz, 24-bit
Stereo Operation
Stereo Link, per mixer channel and A-Net channel pair
Set at the input device;
Variable pan per mono channel or pan/spread per stereo channel pair
USB Storage
Save/load mix configuration data and mixer presets;
Firmware updates
Requires USB compliant mass storage device, formatted for PC
Headphone Output
1.0 watt at 100 ohms
(Line/Headphone output)
Output Impedance
32 ohms
Frequency Response
2-22kHz +0.2dB/-3dB
THD+N
< 0.003%
Signal to Noise (unweighted)
-106dB (measured with zero data into all channels)
Latency
<0.680 msec (measured from analog input to analog output)
A-Net Cables
Use unshielded Cat-5e UTP (or better) cable;
Maximum
400 ft (122 m) between devices;
Power Supply
Input Voltage
Plug Size
Optional
24 VDC, 0.5 amp
2 mm
Dimensions
10.76 in. (273.3mm) wide x 7.6 in. (193.04mm) deep; 2.212 in. (56.18mm) high
Weight
2 lb (0.907 kg); packaged weight 3 lb. (1.36 kg)
Options
MT-1a Mic Stand Mount (uses 6-32 1/4-inch screws)
EB-1 Extension Bracket
PS-120/PS-240 Power Supply
