Audio-Technica BP893xCT4 Omnidirectional Earset with Detachable Cable, TA4F Connector, Black

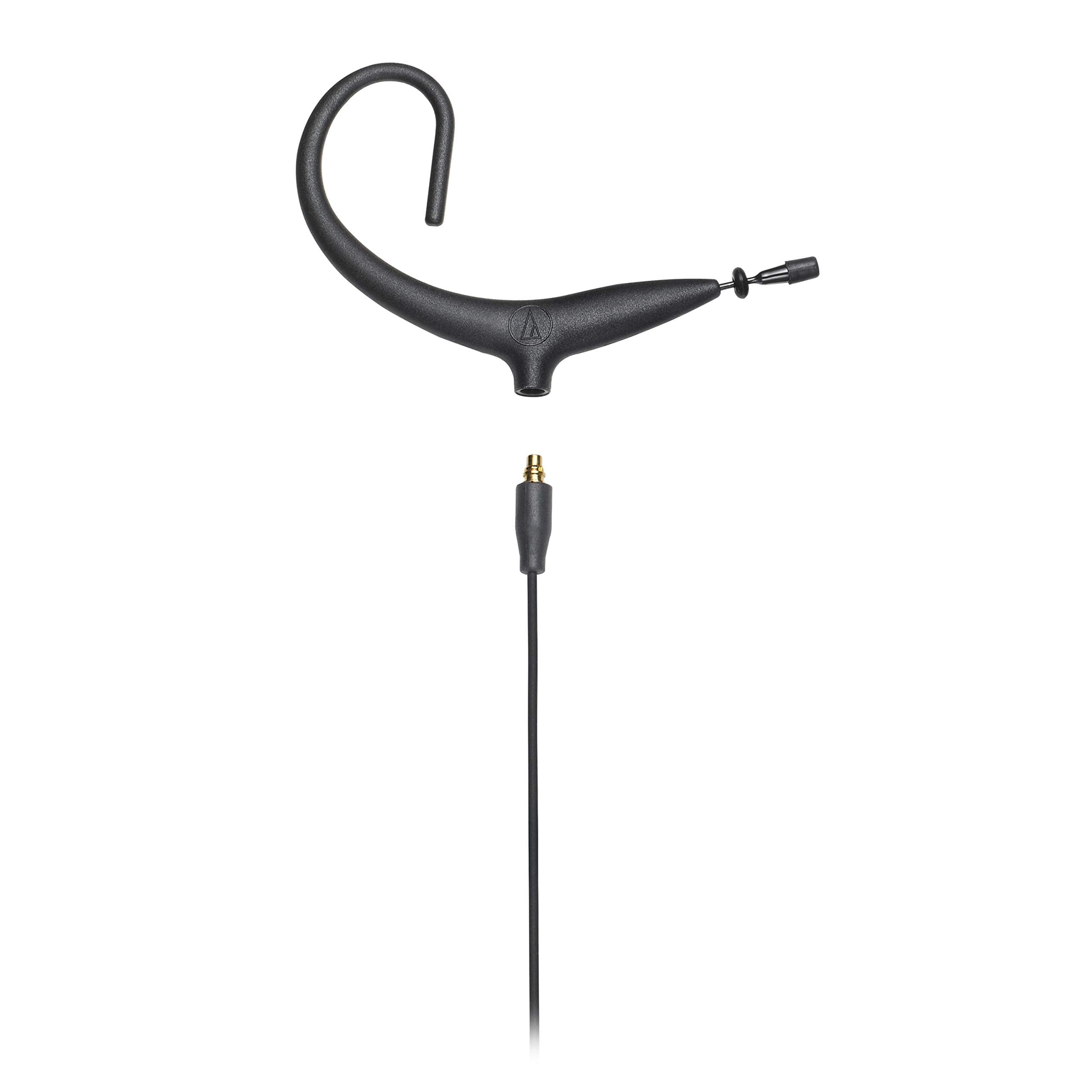

The Audio-Technica BP893xCT4 Omnidirectional Earset is a premier solution for professionals seeking high-quality, natural vocal reproduction with a discreet profile. This earset combines an ergonomic, under-ear design with an extremely unobtrusive 0.2″ boom, making it ideal for applications where a low visual presence is desired. The omnidirectional subminiature condenser capsule is expertly tailored for natural vocal pickup, similar to the performance of a high-quality lavalier microphone. Featuring a detachable, field-replaceable cable, this unit provides versatility for both wired and wireless applications, making it a reliable choice for various professional settings.

One of the standout components of the BP893xCT4 is its comfort and secure placement. The earset hooks around the back of either ear with the boom extending from below, ensuring it remains inconspicuous without sacrificing stability. For additional comfort and stability, the included AT8464x Dual-Ear Adapter Kit converts the single-ear MicroSet to a dual-ear unit, catering to extended wear during long performances or presentations. The construction of the device, using hypoallergenic materials, ensures a comfortable experience for all users.

With an extended frequency response, the BP893xCT4 ensures that every nuance of the vocal performance is captured accurately. The wired version’s power module (AT8545) includes a high-pass filter that offers low-frequency attenuation, enhancing sound pickup without affecting voice quality. Overall, this earset by Audio-Technica is a blend of discreet design, high-quality audio reproduction, and versatile application possibilities.

Key Features

• Omnidirectional condenser capsule offers extended frequency response for extremely intelligible, natural vocal reproduction
• Lightweight, ergonomic design
• Extremely unobtrusive, 0.2″ boom
• Secure under-the-ear placement
• Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
• Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
• Constructed of hypoallergenic material

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only)
• Open Circuit Sensitivity: -38 dB (11.8 mV) re 1V at 1 Pa
• Impedance: 250 ohms (wired only)
• Maximum Input Sound Level: 131 dB SPL, 1 kHz at 3% T.H.D.
• Dynamic Range (Typical): 100 dB, 1 kHz at 3% T.H.D. Max SPL (wired only)
• Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical (wired only)
• Current Consumption: 0.2 mA typical at 5V (wireless only)
• Voltage Range: 2.5-10V (wireless only)
• Switch: Flat, roll-off (wired only)
• Weight: Microphone, boom & earpiece: 2.0 g (0.07 oz), Power module (wired only): 85 g (3.0 oz)
• Dimensions: Microphone: 9.5 mm (0.37″) long, 2.6 mm (0.10″) diameter, Boom: 5.2 mm (0.2″) long, 1.07 mm (0.04″) diameter, Power module (wired only): 100.0 mm (3.94″) long, 18.9 mm (0.74″) diameter
• Output Connector (Power Module): Integral 3-pin XLRM-type
• Cable: Detachable 1.4 m (55″) long, 1.6 mm (0.06″) diameter, 2- or 3-conductor shielded cable (termination dependent)
• Audio-Technical Case Style: M31

Package Contents

• AT8545 power module (wired only)
• AT8464x dual-ear adapter kit
• AT8440 cable clip
• AT8157 windscreen
• AT8171 windscreen
• Two AT8156 element covers
• Moisture guard
• Belt clip (wired only)
• Carrying case
