Audio-Technica BP4029 9.3in Stereo Shotgun Broadcast Production Microphone Sale 2025 Newest

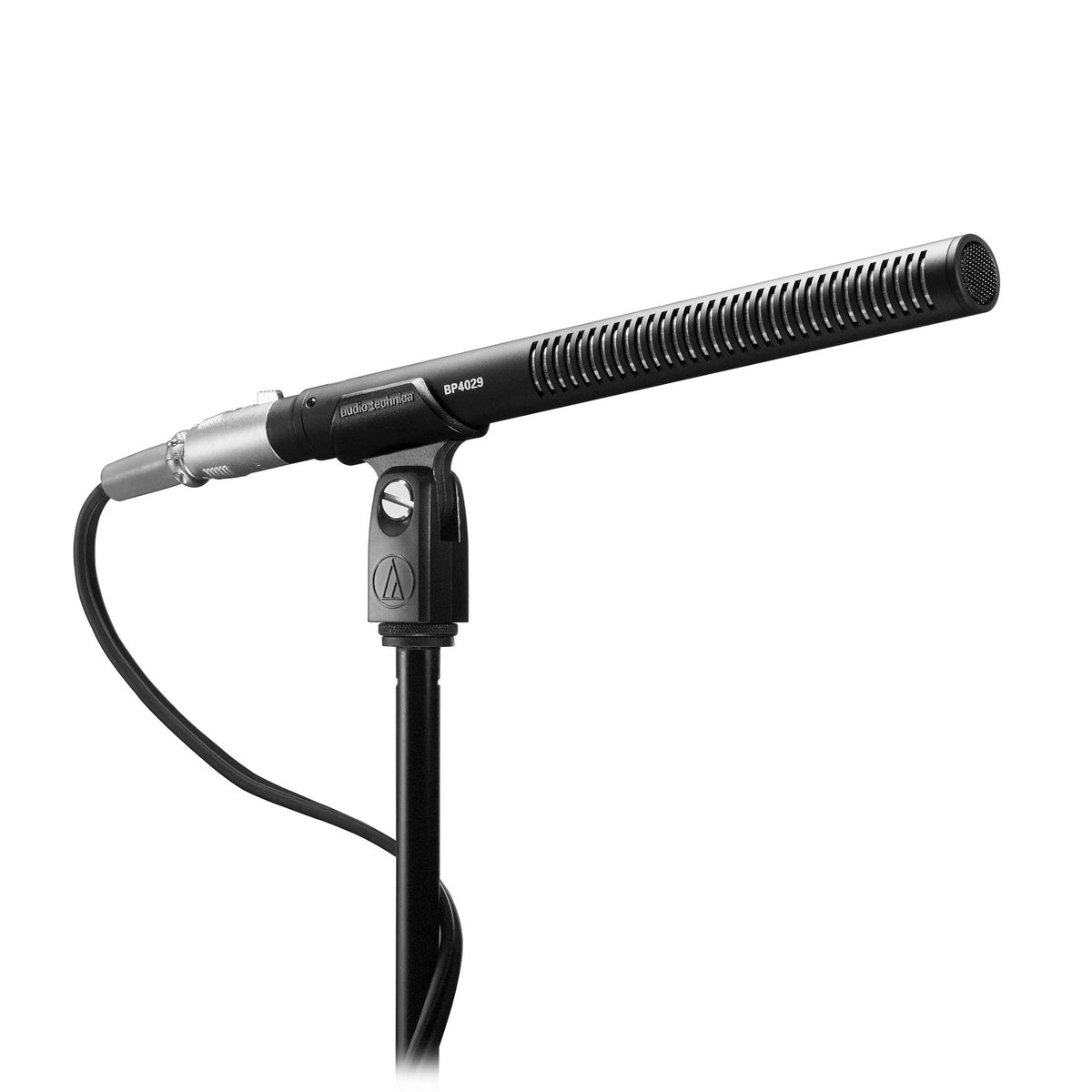

Audio-Technica BP4029 9.3in Stereo Shotgun Broadcast Production Microphone

Based on models originally developed for use during the broadcast of the Sydney Games in 2000, the Audio-Technica BP4029 9.3in Stereo Shotgun Broadcast Production Microphone is designed specifically for high-end broadcast and production environments. Engineered with precision, this microphone offers exceptional audio quality that meets the stringent demands of professional broadcasters, videographers, and sound recordists. Its compact and lightweight design makes it ideal for on-camera use, while its sophisticated technology ensures superior performance and flexibility.

One of the standout features of the BP4029 is its independent line-cardioid and figure-of-eight elements configured in a Mid-Side (MS) arrangement with switch-selectable internal matrixing. This innovative design allows users to choose between a left-right stereo output (wide or narrow) or discrete Mid-Side signals for post-production manipulation—a level of versatility not available from any other manufacturer. The microphone also includes a switchable low-frequency roll-off filter to minimize unwanted low-frequency noise, enhancing your audio clarity.

Built from rugged materials and finished with a sleek black color scheme, the BP4029 not only looks professional but is also highly durable, ensuring it can withstand the rigors of constant use. Phantom-powered and RoHS compliant, this microphone adheres to international standards for safety and environmental sustainability.

Key Features

• Designed for broadcasters, videographers, and sound recordists
• Compact, lightweight design is perfect for camera-mount use
• Independent line-cardioid and figure-of-eight condenser elements
• Switchable low-frequency roll-off
• Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
• Includes a 0.61 m (24″) cable (5-pin XLRF to two standard 3-pin XLRM connectors)
• RoHS compliant, free from all substances specified in the EU directive on hazardous substances

Specifications

• Elements: Fixed-charge back plate, permanently polarized condenser
• Polar Patterns: Line-cardioid, Figure-of-eight
• Frequency Response: 40-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Mid: -30 dB (31.6 mV) re 1V at 1 Pa; Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: Mid: 123 dB SPL, 1 kHz at 1% T.H.D.; Side: 127 dB SPL, 1 kHz at 1% T.H.D.; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Mid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL; LR Stereo: 102 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: Mid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 4 mA typical at 48V, each channel
• Switches: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
• Weight: 103 g (3.6 oz)
• Dimensions: 236.0 mm (9.29″) long, 21.0 mm (0.83″) diameter
• Output Connector: Integral XLR5M-type
• Cable: Dual 0.61 m (24″) shielded two-conductor, terminated in two XLR3M-type connectors

Package Contents

• AT8405a stand clamp for 5/8″-27 threaded stands
• AT8134 foam windscreen
• 5/8″-27 to 3/8″-16 threaded adapter
• Protective carrying case
