Audio-Technica BP4027 15in Stereo Shotgun Broadcast Production Microphone Professional Cheap Pice

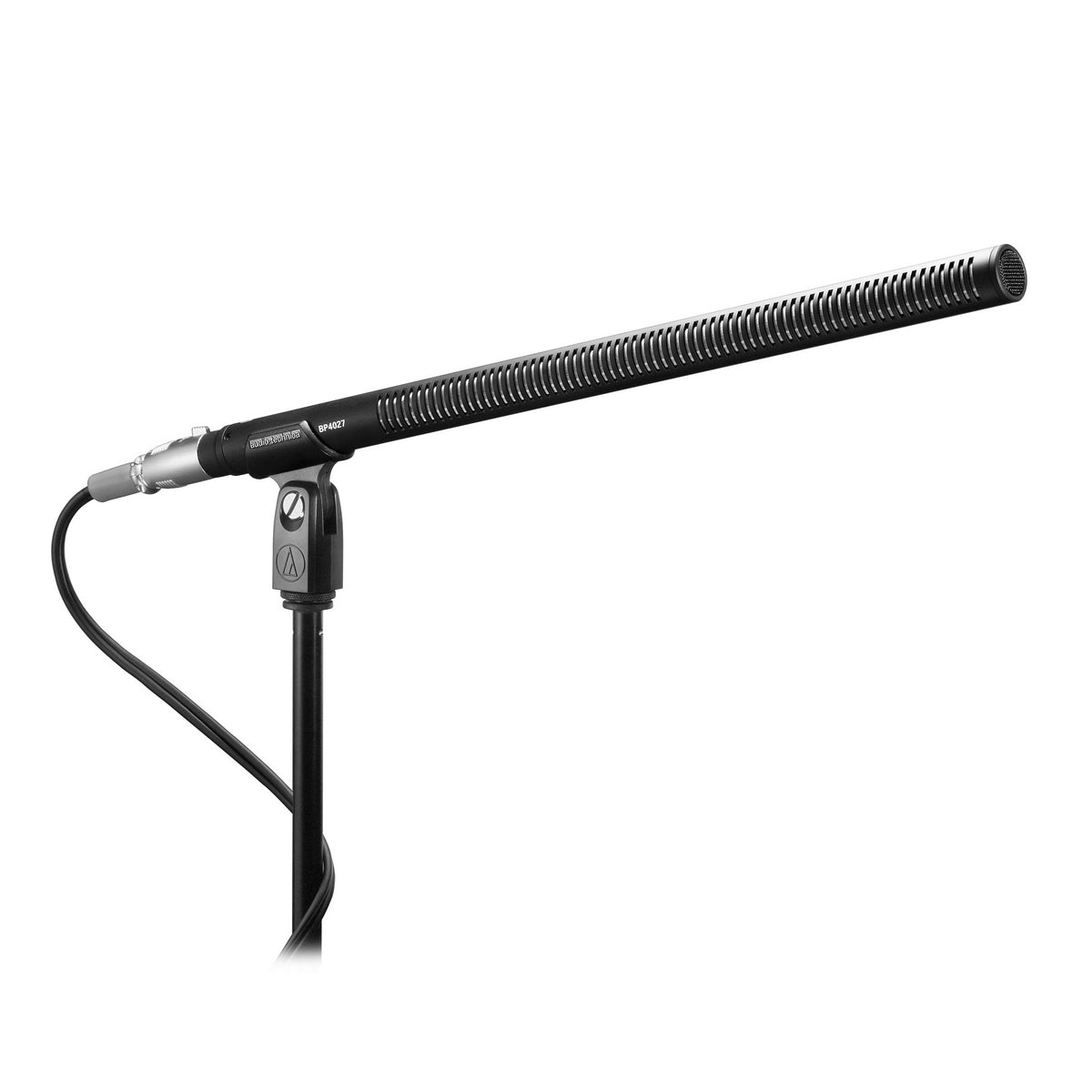

Audio-Technica BP4027 15in Stereo Shotgun Broadcast Production Microphone

The Audio-Technica BP4027 15in Stereo Shotgun Broadcast Production Microphone is a high-end microphone engineered specifically for professional broadcasting and production use. Originally developed for the Sydney Games in 2000, this microphone has stood the test of time and continues to be a top choice among broadcasters, videographers, and sound recordists. With its innovative Mid-Side (MS) arrangement, the BP4027 offers unparalleled flexibility, allowing users to select between left-right stereo outputs or discrete Mid-Side signals for post-production manipulation.

This 15-inch microphone features independent line-cardioid and figure-of-eight condenser elements, providing precise audio capture. A switchable low-frequency roll-off filter minimizes unwanted low-frequency noise, while its rugged yet lightweight design makes it perfect for camera-mount use. The BP4027 is not just a tool for professionals but a versatile asset in any audio toolkit. It comes with a 0.61 m (24″) cable and is RoHS compliant, ensuring it meets all EU directives on hazardous substances.

Key Features

• Designed for broadcasters, videographers, and sound recordists
• Compact, lightweight design ideal for camera-mount use
• Independent line-cardioid and figure-of-eight condenser elements
• Switchable low-frequency roll-off
• Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
• Includes a 0.61 m (24″) cable (5-pin XLRF to two standard 3-pin XLRM connectors)
• RoHS compliant, free from all substances specified in the EU directive on hazardous substances

Specifications

• Elements: Fixed-charge back plate, permanently polarized condenser
• Polar Patterns: Line-cardioid, Figure-of-eight
• Frequency Response: 30-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: Mid: -30 dB (31.6 mV) re 1V at 1 Pa; Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
• Impedance: 200 ohms
• Maximum Input Sound Level: Mid: 123 dB SPL, 1 kHz at 1% T.H.D.; Side: 127 dB SPL, 1 kHz at 1% T.H.D.; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range (typical): Mid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL; LR Stereo: 102 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: Mid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 4 mA typical at 48V, each channel
• Switches: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
• Weight: 142 g (5.0 oz)
• Dimensions: 380.0 mm (14.96″) long, 21.0 mm (0.83″) diameter
• Output Connector: Integral XLR5M-type
• Cable: Dual 0.61 m (24″) shielded two-conductor, terminated in two XLR3M-type connectors

Package Contents

• AT8405a stand clamp for 5/8″-27 threaded stands
• AT8135 foam windscreen
• 5/8″-27 to 3/8″-16 threaded adapter
• Protective carrying case
