Audio-Technica ATW-3212 Handheld Wireless System without Capsule, EE1

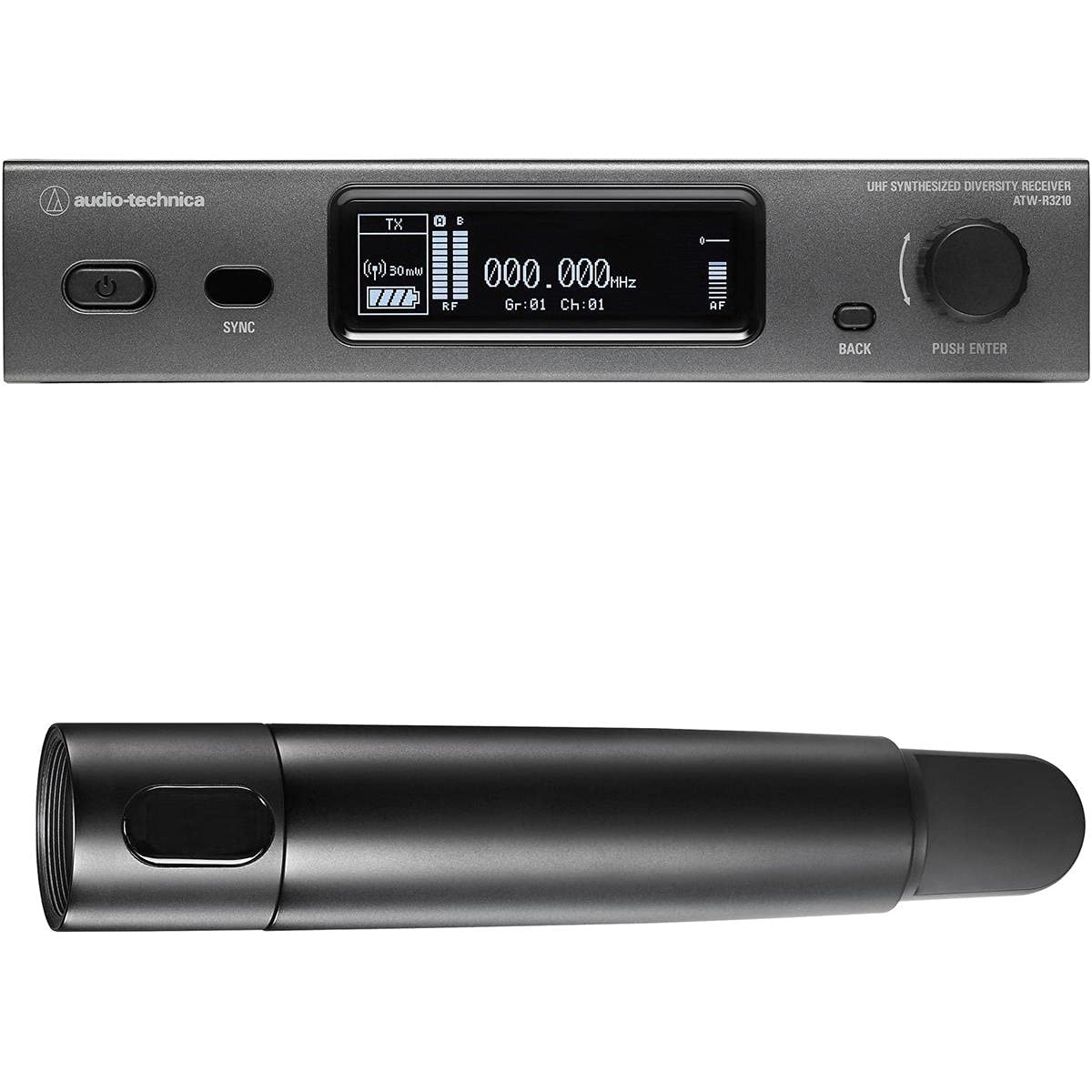

The Audio-Technica ATW-3212 Handheld Wireless System without Capsule, EE1, is designed to provide seamless and high-quality audio transmission in a variety of settings. This comprehensive and versatile system includes the ATW-R3210 receiver and the ATW-T3202 handheld transmitter (handle only, capsule sold separately). By offering an extremely wide 60 MHz UHF tuning bandwidth, the ATW-3212 wireless system ensures optimal performance in increasingly congested RF environments. Available in two frequency bands, DE2 (470-530 MHz) and EE1 (530-590 MHz), the system offers maximum versatility and reliability.

Engineered for ease of use and superior audio quality, the ATW-3212 features True Diversity operation to minimize signal dropouts and an Auto Squelch function that adjusts settings automatically to maximize range and minimize interference. The user-friendly design includes a dual-mode receiver display that can switch between standard view and performance view, highlighting key metering information. The transmitters and receivers are equipped with OLED screens for clear and instant readout of settings and alerts. The ATW-T3202 handheld transmitter boasts extremely low handling noise and supports a wide range of interchangeable microphone capsules, making it an ideal choice for a variety of professional applications.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility
• Available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
• Unique multifunction button for backup frequency switch
• True Diversity operation reduces dropouts
• Auto Squelch feature to adjust squelch setting automatically
• Frequency scan and IR sync functionality for easy setup
• Transmitters and receivers include OLED screens for optimal readout
• Industry-standard thread mount for a variety of interchangeable microphone capsules
• Rugged cH-style connector on body-pack transmitter
• Tactile mute toggle switch on body-pack transmitter
• Optional smart charging docks for rechargeable NiMH batteries
• Antenna power for powered antennas and in-line RF devices
• Ground-lift switch to eliminate audible hum
• Balanced and unbalanced audio output jacks

Specifications

• Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
• Operating Frequencies Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation ATW-T3201: +/-38 kHz (THD:10%), ATW-T3202: +/-36 kHz (THD:10%)
• Dynamic Range: > 115 dB (A-weighted), typical
• Total Harmonic Distortion: <1.0% (at 1 kHz +/-17.5 kHz deviation)
• Operating Range: 100 m (328′) in open range environment
• Operating Temperature Range: -5 deg C to +45 deg C (23 deg F to 113 deg F)
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
• Maximum Simultaneous Use: 40 Channels per band
• Receiver Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
• Receiver Net Weight: 1100 g (38.8 oz)
• Body-Pack Transmitter Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)
• Body-Pack Transmitter Net Weight: 102 g (3.6 oz)
• Handheld Transmitter Dimensions: 193 mm (7.60″) long, 37 mm (1.46″) diameter
• Handheld Transmitter Net Weight: 200 g (7.1 oz)
• Batteries: Two 1.5V AA, not included
• Battery Life (High): 8.0 hours (alkaline), 9.0 hours (Ni-MH 1900mAh)

Package Contents

• ATW-R3210 receiver
• ATW-T3202 handheld transmitter (handle only, capsule sold separately)
• Two flexible UHF antennas
• AC adapter (country dependent)
• Rack-mount adapters
