Audio-Technica ATW-3212 Handheld Wireless System without Capsule, DE2

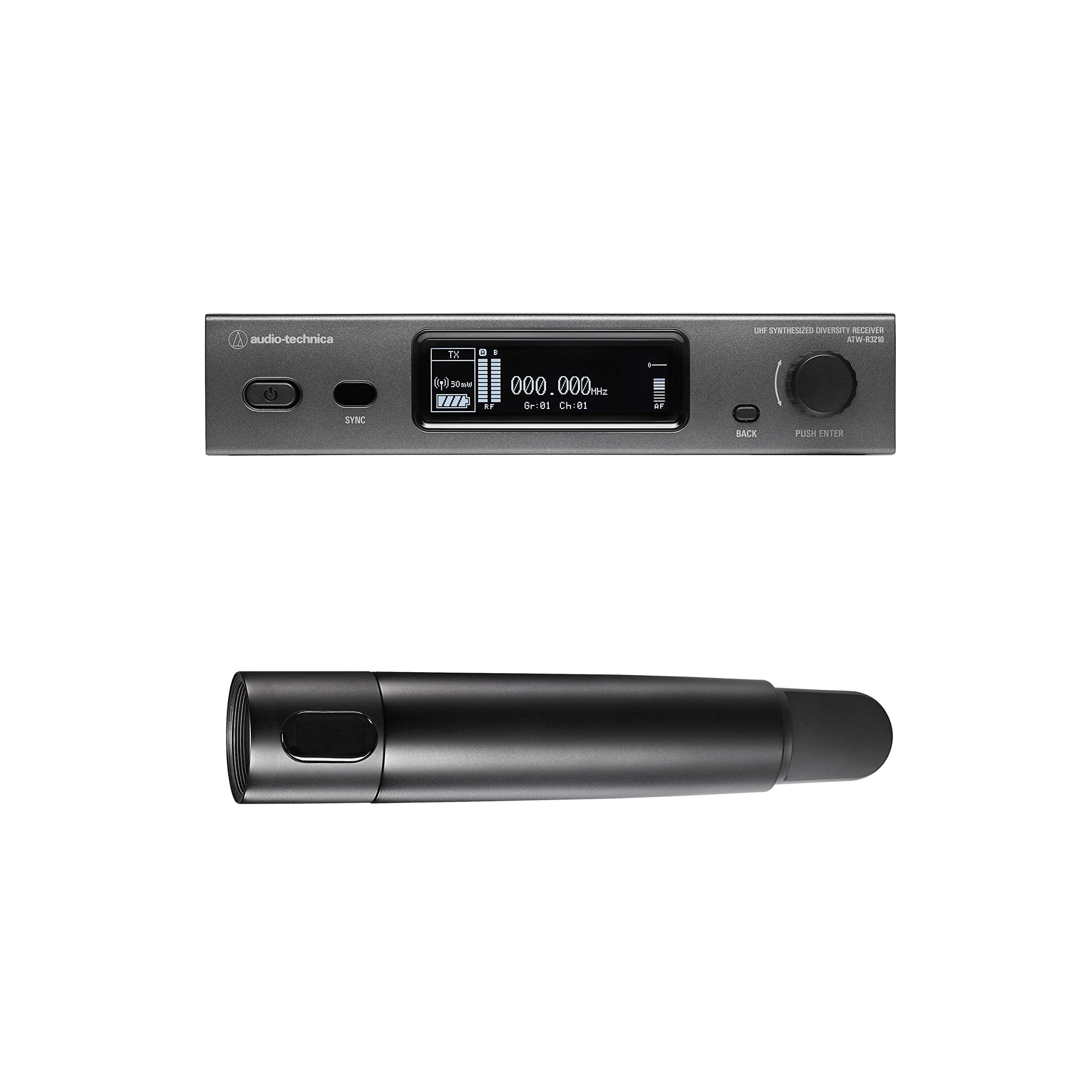

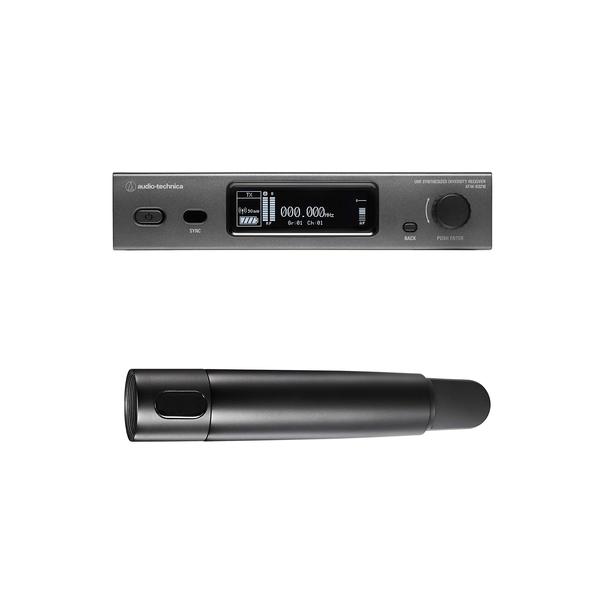

ATW-R3210 receiver and ATW-T3202 handheld transmitter (handle only, capsule sold separately).

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
• Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

Technical Specifications

Operating Frequencies
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Minimum Frequency Step
25 kHz
Modulation Mode
FM
Maximum Deviation
ATW-T3201: +/-38 kHz (THD:10%)
ATW-T3202: +/-36 kHz (THD:10%)
Dynamic Range
ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion
<1.0% (at 1 kHz, +/-17.5 kHz deviation)
Operating Range
100 m (328′)
Open range environment with no interfering signals.
Operating Temperature Range
-5 deg C to +45 deg C (23 deg F to 113 deg F)
Frequency Response
ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
Frequency response depends on attached microphone element
Maximum Simultaneous Use (Recommended)
40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent

RECEIVER SPECIFICATIONS
Receiving System
True Diversity
Image Rejection
60 dB nominal
RF Sensitivity
20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Antenna Power
12 V DC, 160 mA (combined)
Maximum Output Level
XLR, balanced: +14 dBV
6.3 mm (1/4″), unbalanced: +8 dBV
Antenna Input
BNC-type, 50 ohms
Power Supply
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions
210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27″ x 7.52″ x 1.71″ (W x D x H)
Net Weight
1100 g (38.8 oz), without accessories
Accessories Included
Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions
Following Federal and National Regulations
Input Connections
cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
High-pass (low-freq. roll-off)
125Hz, 12dB/octave
Batteries
Two 1.5V AA, not included
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Dimensions
64 mm x 82 mm x 23 mm (W x D x H)
2.52″ x 3.22″ x 0.91″ (W x D x H)
Net Weight
102 g (3.6 oz), without batteries

HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions
Following Federal and National Regulations
Microphone Capsule
Interchangable industry standard thread
Batteries
Two 1.5V AA, not included
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Dimensions
ATW-T3202 (without capsule): 193 mm (7.60″) long, 37 mm (1.46″) maximum diameter
ATW-T3202/C510: 265 mm (10.43″) long, 54 mm (2.13″) maximum diameter
ATW-T3202/C710: 271 mm (10.67″) long, 50 mm (1.97″) maximum diameter
Net Weight
ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
ATW-T3202/C510: 330 g (11.6 oz), without batteries
ATW-T3202/C710: 314 g (11.1 oz), without batteries
