Audio-Technica ATW-3211N894X DE2 3000 Series Network Wireless Cardioid Earset System, DE2 470-530 MHz, Black Discount Authentic

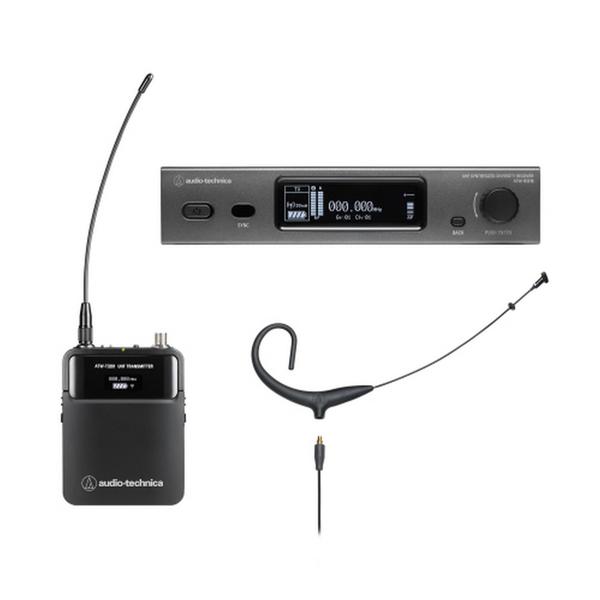

Audio-Technica ATW-3211N894X DE2 3000 Series Network Wireless Cardioid Earset System, DE2 470-530 MHz, Black

The Audio-Technica ATW-3211N894X DE2 3000 Series Network Wireless Cardioid Earset System offers the latest generation of wireless technology, ensuring unparalleled performance in any environment. Operating within the DE2 470-530 MHz frequency band, this advanced system boasts a remarkable 60 MHz UHF tuning range, more than doubling the range provided by its predecessors. Whether you are a live performer, audio engineer, or presenter, the ATW-3211N894X delivers reliability and flexibility, even in the most congested UHF spectra.

Designed to handle a variety of professional audio applications, the system features an operating range of up to 300 feet (100 meters). The receiver and transmitter sync effortlessly through IR sync functionality, making frequency selection and setup a breeze. In scenarios with unexpected interference, the multifunction button on the transmitter swiftly switches to a pre-set backup frequency, ensuring uninterrupted performance. Network-enabled with the ATW-R3210N receiver, the system allows for comprehensive monitoring and control via Audio-Technica’s Wireless Manager software.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility
• Multifunction button on transmitters for quick frequency change in event of interference
• Network-enabled system with ATW-R3210N receiver for network monitoring and control
• True Diversity operation to minimize dropouts
• Auto Squelch functionality to maximize range and minimize interference
• Frequency scan and IR sync for easy setup
• Dual-mode receiver display with standard and performance views
• OLED screens on transmitters and receivers for optimal settings readout
• Interchangeable microphone capsules on handheld transmitter
• Rugged cH-style connector on body-pack transmitter for secure connections
• Charging terminals on transmitters compatible with optional smart charging docks
• Antenna power available for powered antennas and in-line RF devices
• Ground-lift switch to eliminate hum caused by ground loops
• Balanced and unbalanced audio output jacks

Specifications

• Operating Frequencies: DE2: 470.125 to 529.975 MHz
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation: ±38 kHz / ±36 kHz
• Dynamic Range: > 115 dB (A-weighted)
• Total Harmonic Distortion: <1.0% at 1 kHz
• Operating Range: 100 m (328′) in open range
• Operating Temperature Range: -5°C to +45°C (23°F to 113°F)
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
• Maximum Simultaneous Use: 40 Channels per band
• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio
• Antenna Power: 12 V DC, 160 mA
• Maximum Output Level: XLR balanced: +14 dBV, 6.3 mm unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Power Supply: 100-240V AC to 12V DC 1A
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm
• Net Weight: 1100 g

Package Contents

• Two flexible UHF antennas
• AC adapter (country dependent)
• Rack-mount adapters
