Audio-Technica ATW-3211N893XTH DE2 3000 Series Network Wireless MicroEarset System, DE2 470-530 MHz, Beige

The Audio-Technica ATW-3211N893XTH DE2 3000 Series Network Wireless MicroEarset System, operating in the DE2 470-530 MHz frequency band, brings cutting-edge technology to your audio setup. This fourth-generation wireless system is designed to handle the demands of today’s congested UHF spectrum, giving you unprecedented power and flexibility. Offering a wide 60 MHz tuning range, it supports an impressive 300 feet (100 meters) operating range. With seamless frequency scanning and selection via the IR sync functionality, this system ensures you stay connected even in the most challenging environments.

Perfect for live performances, broadcast applications, and more, this network-enabled system features the ATW-R3210N receiver, offering network monitoring and control via the Wireless Manager software. The true naversity operation minimizes dropouts, while the auto squelch function maximizes range by mitigating potential interference. The highly intuitive design allows users to quickly switch to a backup frequency with the multifunction button in case of unexpected interference, making it extremely reliable for professional use.

Equipped with OLED screens on both transmitters and receivers, the Audio-Technica 3000 Series ensures optimal visibility of key settings and alerts, even in low-light environments. Moreover, the rugged cH-style connector on the body-pack transmitter offers a secure connection to lavalier mics, headworn mics, and cables. Additionally, the system includes a tactile mute toggle switch for physical confirmation of mute status when the transmitter display is not visible.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility.
• Multifunction button for easy switch to backup frequency.
• Network-enabled system with Wireless Manager software for control.
• True naversity operation to reduce dropouts.
• Auto squelch feature to maximize range and minimize interference.
• Frequency scan and IR sync functionality for easy setup.
• Dual-mode receiver display for key metering and performance view.
• Transmitters and receivers have OLED screens for clear readout.
• Low handling noise on handheld transmitter with interchangeable A-T microphone capsules.
• New rugged cH-style connector on body-pack transmitter.
• Charging terminals compatible with optional smart charging docks.
• Antenna power for powered antennas and in-line RF devices.
• Ground-lift switch to eliminate hum from ground loops.
• Balanced and unbalanced audio output jacks.

Specifications

• Operating Frequencies: DE2: 470.125 to 529.975 MHz.
• Minimum Frequency Step: 25 kHz.
• Modulation Mode: FM.
• Maximum Deviation: ATW-T3201: ±38 kHz, ATW-T3202: ±36 kHz.
• Dynamic Range: > 115 dB (A-weighted), typical.
• Total Harmonic Distortion: < 1.0%.
• Operating Range: 100 m (328 feet).
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F).
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz.
• Maximum Simultaneous Use: 40 Channels per band.
• Receiving System: True Diversity.
• Image Rejection: 60 dB nominal.
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio.
• Antenna Power: 12 V DC, 160 mA (combined).
• Maximum Output Level: XLR, balanced: +14 dBV, 6.3 mm, unbalanced: +8 dBV.
• Antenna Input: BNC-type, 50 ohms.
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A.
• Dimensions: 210 mm x 191 mm x 43.4 mm.
• Net Weight: 1100 g (38.8 oz).
• Accessories Included: Two flexible UHF antennas, AC adapter, rack-mount adapters.

Package Contents

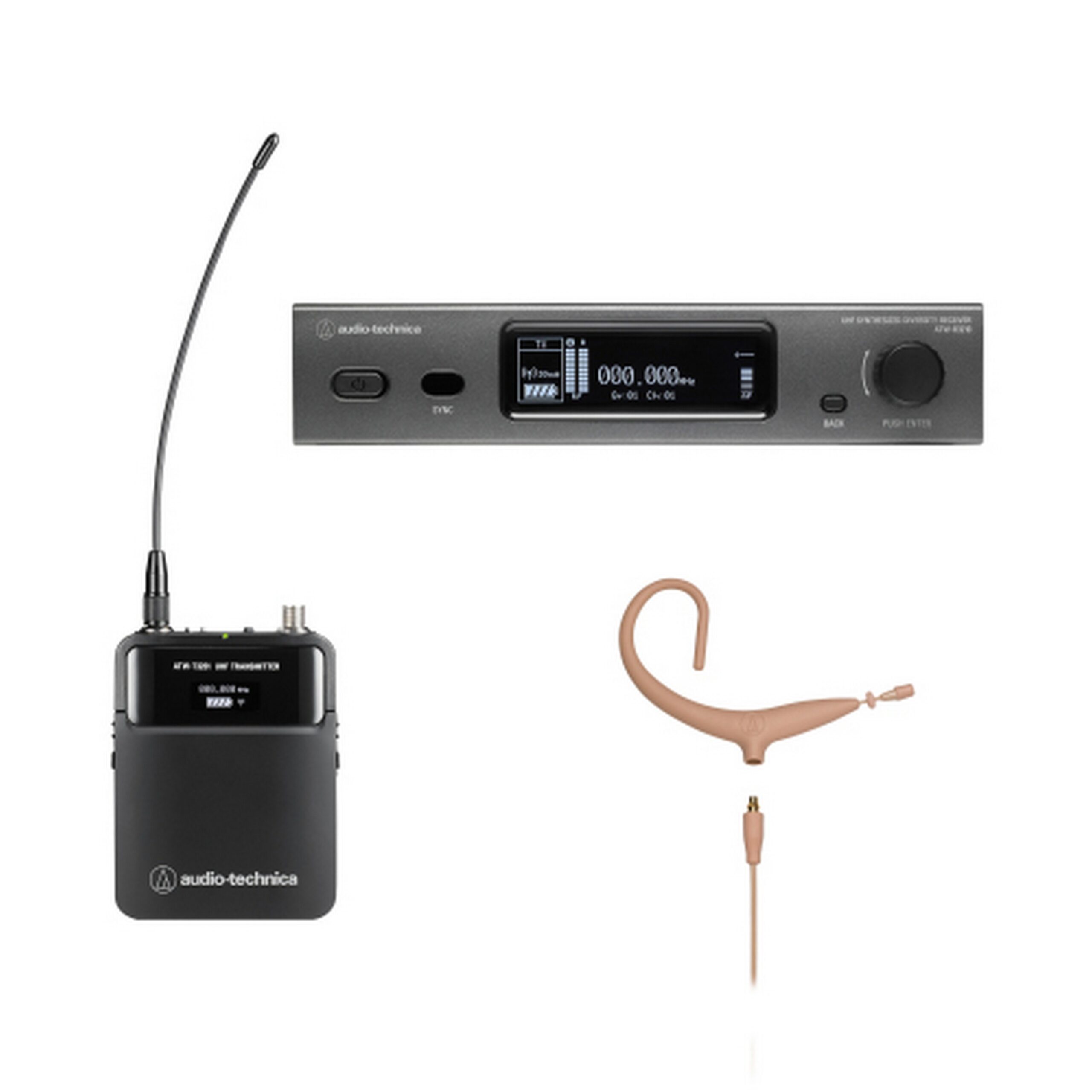

• ATW-3211N893XTH DE2 Wireless MicroEarset System.
• Two flexible UHF antennas.
• AC adapter.
• Rack-mount adapters.
