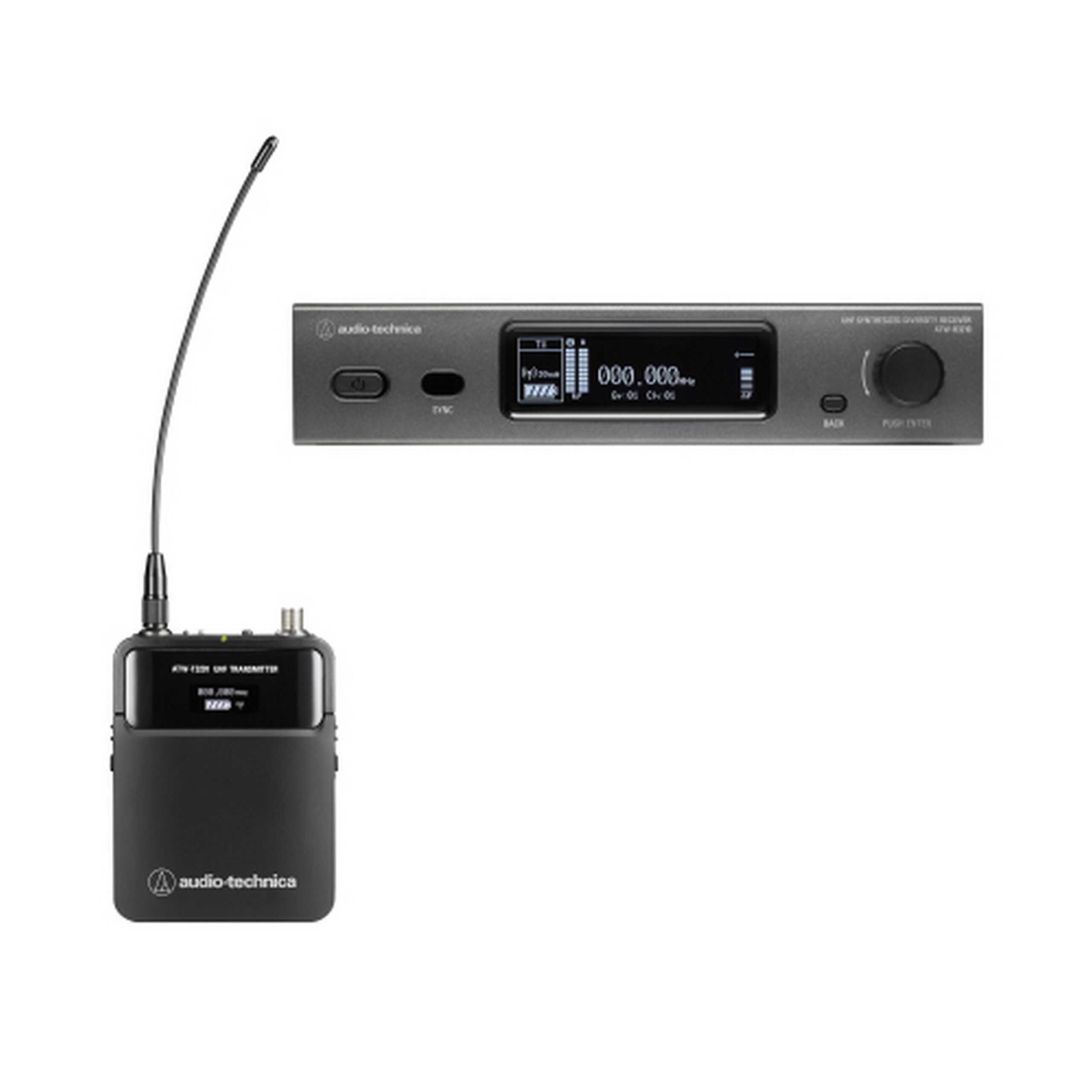

Audio-Technica ATW-3211N DE2 3000 Series Network Wireless Bodypack System, DE2 470-530 MHz, No Mic Official Site For Sale

Audio-Technica ATW-3211N DE2 3000 Series Network Wireless Bodypack System, DE2 470-530 MHz, No Mic

The Audio-Technica ATW-3211N DE2 3000 Series Network Wireless Bodypack System is a state-of-the-art solution for audio professionals who require the utmost in flexibility and reliability. This fourth-generation system operates within the 470-530 MHz UHF spectrum, providing an impressive 60 MHz tuning range—twice the bandwidth of previous models. Whether you are performing in a crowded urban environment or at a remote outdoor event, the 3000 Series is engineered to deliver clear, uninterrupted audio over a distance of up to 300 feet (100 meters). With its ability to scan and select frequencies automatically, and its IR sync functionality, setting up the system is a breeze. Plus, the backup frequency feature ensures that unexpected interference doesn’t ruin your performance, allowing for a quick switch with the transmitter’s multifunction button.

One standout feature of the ATW-3211N system is its network-enabled ATW-R3210N receiver, which offers advanced monitoring and control via Audio-Technica’s Wireless Manager software. The receiver employs True Diversity operation to significantly reduce dropouts, while the Auto Squelch feature enhances range and minimizes interference. Both transmitters and receivers boast OLED screens for easy visibility of key settings and alerts, ensuring you can make adjustments swiftly and accurately.

This network wireless bodypack system does not include a microphone, providing you with the flexibility to choose the mic that best suits your needs. The rugged cH-style connector on the body-pack transmitter ensures secure attachment to lavalier mics, headworn mics, and cables. Additionally, the system features charging terminals compatible with ATW-CHG3 and ATW-CHG3N smart charging docks, making it easy to keep your gear powered up and ready to go.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility
• Available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
• Unique multifunction button on transmitters for quick frequency change
• Network-enabled system with ATW-R3210N receiver
• True Diversity operation minimizes dropouts
• Auto Squelch feature maximizes range while minimizing interference
• Frequency scan and IR sync functionality for ease of setup
• OLED screens on transmitters and receivers for easy visibility
• Rugged cH-style connector for secure connections
• Charging terminals for use with optional smart charging docks
• Antenna power for powered antennas and in-line RF devices
• Ground-lift switch to eliminate audible hum from ground loops
• Balanced and unbalanced audio output jacks

Specifications

• Operating Frequencies: DE2 (470.125-529.975 MHz), EE1 (530.000-589.975 MHz), EF1 (590.000-649.975 MHz), FG1 (650.000-699.875 MHz)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation: ATW-T3201: ±38 kHz, ATW-T3202: ±36 kHz
• Dynamic Range: > 115 dB for most inputs
• Operating Range: 100 m (328 ft)
• Operating Temperature: -5° C to +45° C
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
• Maximum Channels: 40 per band
• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N
• Antenna Power: 12 V DC, 160 mA
• Maximum Output Level: XLR, balanced: +14 dBV; 6.3 mm (1/4″), unbalanced: +8 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A
• Dimensions: 210 mm x 191 mm x 43.4 mm (W x D x H)
• Net Weight: 1100 g (38.8 oz)

Package Contents

• Two flexible UHF antennas
• AC adapter (country dependent)
• Rack-mount adapters
