Audio-Technica ATW-1312/L Dual Channel Dynamic Handheld Lavalier Microphone Rack Mount Wireless System Best Wholesale For Sale

Audio-Technica ATW-1312/L Dual Channel Dynamic Handheld Lavalier Microphone Rack Mount Wireless System

The Audio-Technica ATW-1312/L Dual Channel Dynamic Handheld Lavalier Microphone Rack Mount Wireless System is an exquisite solution for professional-grade audio quality and flexibility. Featuring the innovative System 10 PRO Rack-Mount digital wireless system, this product operates in the 2.4 GHz range, providing interference-free communication outside traditional TV bands. It boasts a durable half-rack chassis designed to accommodate up to two receiver units which can be used locally or mounted remotely (up to 328 feet away) via an Ethernet cable for optimal versatility.

This system goes above and beyond with enhanced features such as 24-bit digital operation for clear, natural sound quality, and incorporates three levels of naversity assurance—frequency, time, and space. Frequency Diversity sends signals on two dynamically allocated frequencies to minimize interference, Time Diversity uses multiple time slots to ensure immunization against multipath interference, and Space Diversity employs two antennas on each transmitter and receiver unit to maximize signal integrity. Moreover, up to five chassis (10 receiver units) can be interconnected using the provided RJ12 cable, supporting the simultaneous use of up to 10 channels for a comprehensive, multichannel setup.

The Audio-Technica ATW-1312/L system is thoughtfully packaged to meet professional needs, including an ATW-RC13 receiver chassis, ATW-RU13x2 receiver units, ATW-T1002 handheld dynamic unidirectional microphone/transmitter, and ATW-T1001 UniPak transmitter with MT830cW lavalier microphone. Both the receiver chassis and transmitters feature user-friendly displays for easy operation.

Key Features

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4 GHz range, completely free from TV interference
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis (ten receiver units) can be linked and used simultaneously
• Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
• Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and setup
• Three levels of naversity assurance: frequency, time, and space
• Ground-lift switch helps eliminate audible hum caused by ground loops

Specifications

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Range: 60 m (200′) open range environment with no interfering signals
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Frequency Response: 20 Hz to 20 kHz (depending on microphone type)
• Receiver Dimensions: 209.8 mm (8.26″) W x 44 mm (1.73″) H x 169.3 mm (6.67″) D
• Receiver Net Weight: 940 grams (33.2 oz)
• Body-Pack Dimensions: 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
• Body-Pack Net Weight: 100 grams (3.5 oz) without batteries
• Handheld Transmitter Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
• Handheld Transmitter Net Weight: 280 grams (9.9 oz) without batteries
• RF Power Output: 10 mW for both body-pack and handheld transmitters
• Batteries: Two 1.5V AA (not included), battery life >7 hours (alkaline, depending on battery type and usage)

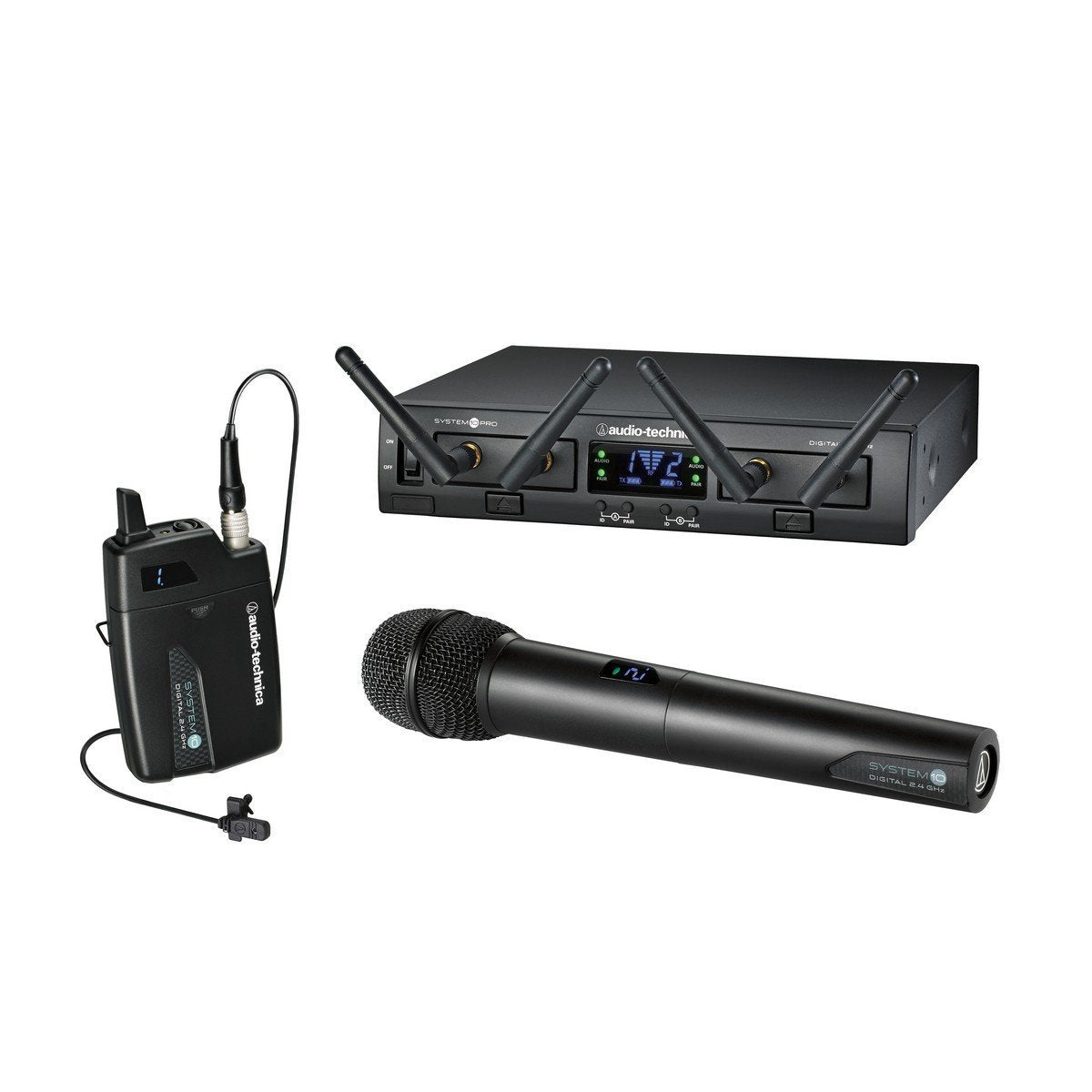

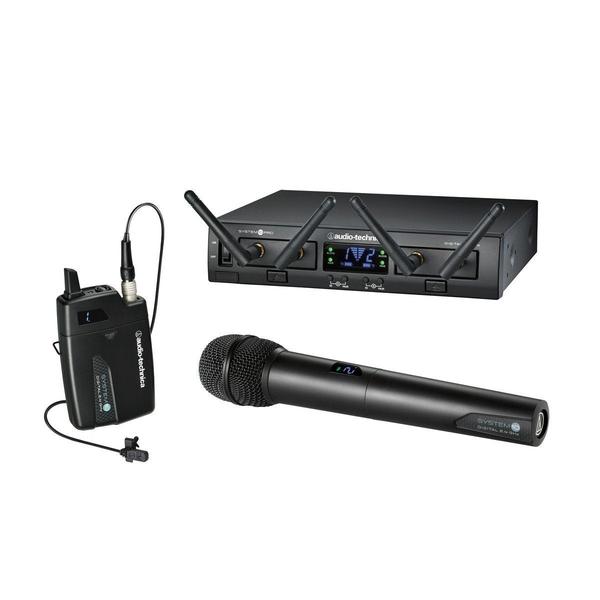

Package Contents

• ATW-RC13 Rack-Mount Receiver Chassis
• ATW-RU13x2 Receiver Units
• ATW-T1002 Handheld Dynamic Unidirectional Microphone/Transmitter
• ATW-T1001 UniPak Transmitter with MT830cW Lavalier Microphone
• AC Adapter
• Link Cable
• Rack-Mount Adapters
• Joining Plate
• Rubber Feet
