Audio-Technica ATW-1101/L System 10 Wireless Lavalier Microphone System

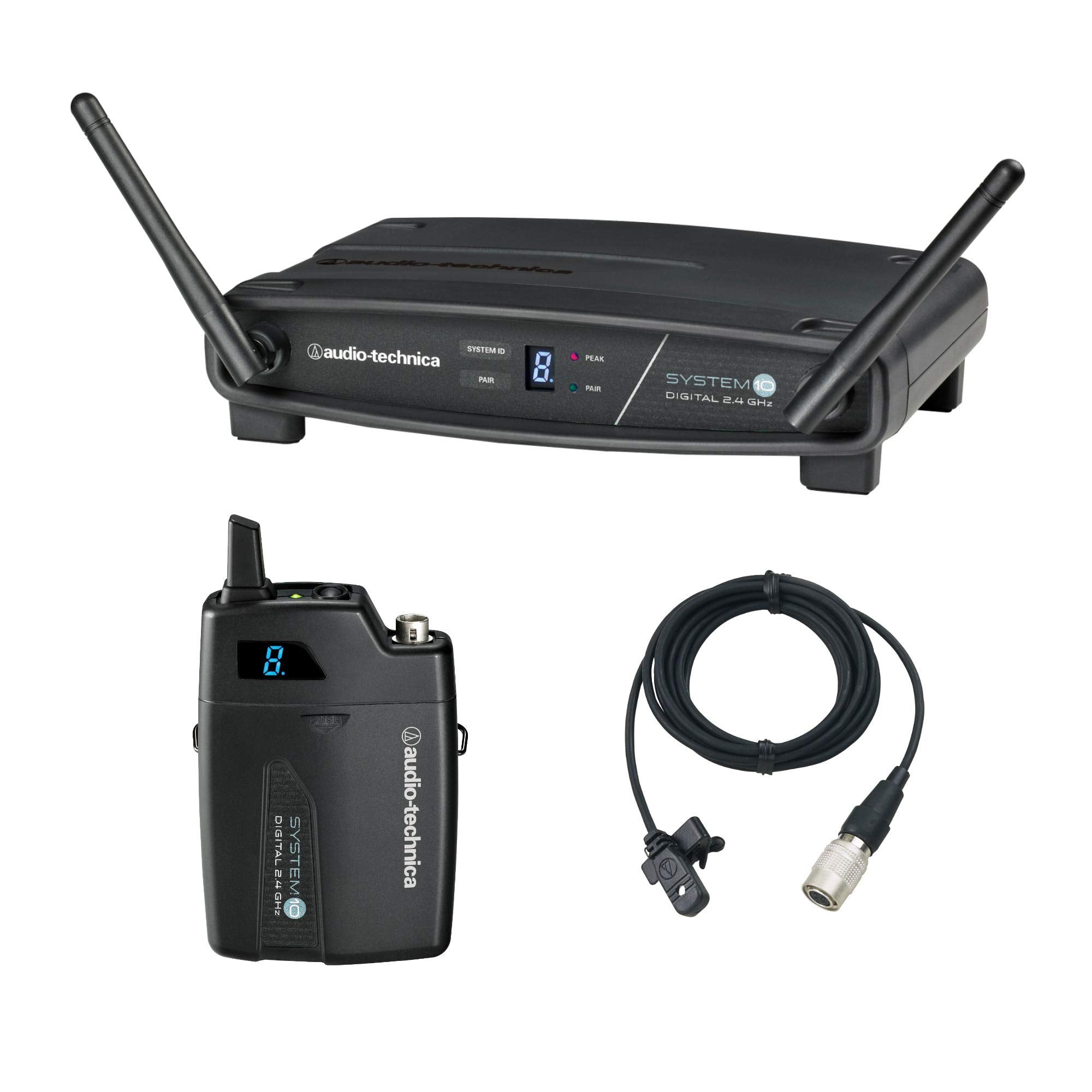

The Audio-Technica ATW-1101/L is a digital wireless lavalier microphone solution that is designed to provide high quality vocal reproduction for speakers and singers in house of worship, broadcast and other applications. The set includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the MT830cW lavalier microphone. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously.

The MT830cW is a lavalier condenser microphone that is designed to be worn inconspicuously on the clothing or in the hair. It features an omnidirectional polar pattern that is designed to deliver a wide pick up radius and maximize vocal intelligibility. It also features a switchable high-pass filter that rolls off 18 dB per octave starting at 80 Hz. This helps to reduce unwanted low frequency pick up from ambient sound, clothing adjustments or breathing in close proximity to the mic. The mic has a 55″ cable that terminates with a locking 4-pin connector which plugs into the ATW-T1001 UniPak pocket transmitter.

The ATW-1101/L wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you “pair” your transmitter with the receiver. Also designed to combat interference, the ATW-1101/L uses three different naversity techniques. Using frequency naversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time naversity. Furthermore, the system also makes use of space naversity, choosing between the receiver’s dual antennas depending on which is picking up the best signal integrity.

Key Features

• Balanced XLR output and unbalanced 1/4″ output on receiver allows for connection to balanced microphone level inputs or unbalanced aux level inputs on mixers and sounds systems
• Windscreen to help prevent pops from wind and breath
• Microphone features a rugged build for wIt’standing everyday wear and tear
• Includes clip for securing the lavalier to your clothing
• Level controls on transmitter and receiver
• Pair indicator illuminates on receiver when synced with transmitter
• AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping

Technical specs

Includes
Audio-Technica MT830CW Omni-Directional Lavalier Condenser Microphone
ATW-T1001 System 10 Digital UniPak Transmitter
ATW-R1100 System 10 Digital Wireless Receiver
Windscreen
Clothing Clip
Power Supply
Audio-Technica Warranty

Operating Frequencies
2.4 GHz ISM band
Dynamic Range
>109 dB (A-weighted), typical
Total Harmonic Distortion
<0.05% typical
Operating Range
30m (100′) typical
Operating Temperature Range
0deg. C to +40deg. C (32deg. F to 104deg. F)
Frequency Response
20 Hz to 20 kHz
Audio Sampling
24 bit / 48 kHz
Receiver: Receiving System
Diversity (frequency/time/space)
Receiver: Maximum Output Level
XLR, balanced: 0 dBV
1/4″ (6.3 mm), unbalanced: +6 dBV
Receiver: Power Supply
100-240V AC (50/60 Hz) to 12V DC 0.5A (center positive) switched mode external power supply
Unipak Transmitter: RF Output Power
10 mW
Unipak Transmitter: Spurious Emissions
Following federal and national regulations
Unipak Transmitter: Input Connection
1x 4-pin locking connector
Wiring: Pin 1: GND / Pin 2: INST INPUT / Pin 3: MIC INPUT / Pin 4: DC BIAS +9V
Unipak Transmitter: Batteries
Two 1.5V AA
Unipak Transmitter: Battery Life
>7 hours (alkaline)
Microphone: Element
Fixed-charge back plate, permanently polarized condenser
Microphone: Polar Pattern
Omnidirectional
Microphone: Frequency Response
30 Hz – 20 kHz
Microphone: Low Frequency Roll-Off
80 Hz, 18 dB/octave
Microphone: Open CircuIt’sensitivity
-37 dB (14.1 mV) re 1V at 1 Pa
Microphone: Impedance
200 ohms
Microphone: Maximum Input Sound Level
135 dB SPL, 1 kHz at 1% T.H
Microphone: Dynamic Range
108 dB, 1 kHz at Max SPL (typical)
Microphone: Signal-to-Noise Ratio
67 dB, 1 kHz at 1 Pa
Microphone: Phantom Power Requirements
11-52V DC, 2 mA (typical)
Microphone: Switch
Flat, roll-off
Microphone: Connector
Locking 4-Pin HRS connector
Microphone: Cable Length
55″ (1.4 m)
Dimensions (W x H x D)
Receiver: 7.48 x 1.82 x 5.06″ / 18.99 x 4.62 x 12.85cm
Unipak Transmitter: 2.76 x 4.21 x 0.98″ / 7.01 x 10.69 x 2.48cm
Microphone: 0.62 x 0.33 x 0.19″ (15.74 x 8.38 x 4.82 mm)
Weight
Receiver: 290 g (10.22 oz)
Unipak Transmitter: 100 g (3.52 oz)
Microphone: 0.05 oz (1.41g)
